Raspberry Pi 3 Model B HDMI To MIPI Connection 3.4 Inch 800*800 Round LCD Display

Add to Basket Share to :

Price

US$ 48

Min Order Quantity1 Piece
PortShanghai
Delivery Lead Time3 days if in stocks
Payment Terms 2Credit Card (Alibaba)
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Das Industry Limited
Membership Free member
Registration Date2017.06.29
Country/RegionChina
CityShanghai
Contact Melody Chen(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition Used - Very Good
- Type TFT
- Related Keywords Raspberry Pi, lcd display, round lcd display

Description by Manufacturer

Product Description

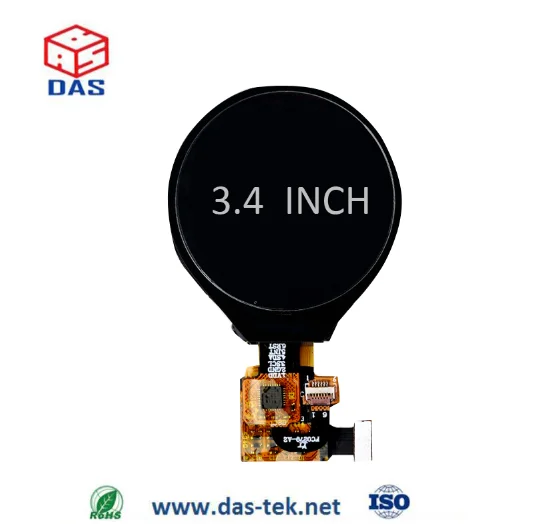

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display

_ITEM	_{SPECIFICATION}	UNIT
Dot Matrix	800(RGB) x 800	—
Technology Type	a-Si	mm
Pixel Configuration	R.G.B. Vertical Stripe	mm
Pixel pitch(um)	109.5*109.5	%
Display Mode	SFT	mm
Surface Treatment	HC	mm
Viewing Direction	FREE	mm
Diagonal A/A Size	3.4	inch
Module (W x H x D) (mm) with CTP	99.0 x 96.6 x 3.98	—
Active Area(mm)	87.6*87.6	—
With /Without TSP	With CTP	—
Matching Connection Type	FPC	—
Wide range of operating temperature	-40℃ to 70℃	—
LED Numbers	8 LEDs	—
CTP Surface hardness	≥7H	—
Weight (g)	TBD	—
Interface	MIPI 3 lane	—
Color Depth	16.7M	—
LCD Driver IC	ILI9881C	—
CTP Driver IC	HX8526-E30	—
CTP Interface	IIC	—

2.1 inch 320*320 round lcd display with touch panel

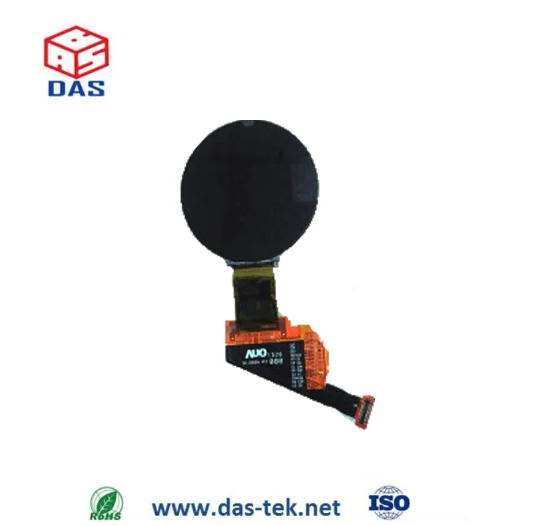

1.4 inch 400*400 Round AMOLED display

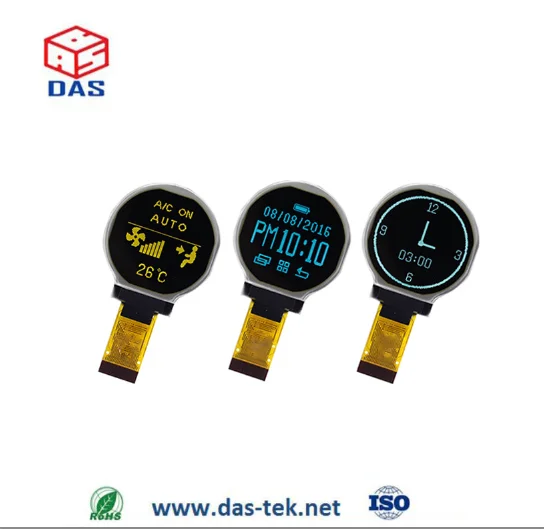

1.3 inch 128*128 Round OLED display

Our Company

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display

DAS INDUSTRY LMITED was founded in Shanghai in 2005 by a group of experienced engineer who inspired to create a new range of innovative and high quality LCD module. With 9years experience, base on factory, positively develop new market, always keep good quality, best service and fast response, we believe in coming true to be the leader of LCD manufacturer !

DAS main products are 1.5inch to 10.4inch color TFT , to meet different customer’s request , we always keep developing new product . Our products cover a lot of fields , such as medical ,industrial , communication ,supermarket etc . From 2010 ,we developed transflective TFT and serial interface TFT , won some new customers in geological survey field ,smart furniture, elevator and so on. Most of our oversea customers are from America, Mexico, Austrulia ,Italy , Russia, Korea, Israel etc.

Hot offer! Transflective TFT display , used in outdoor ,acquire customers highly acclaimed .Welcome to visit us!

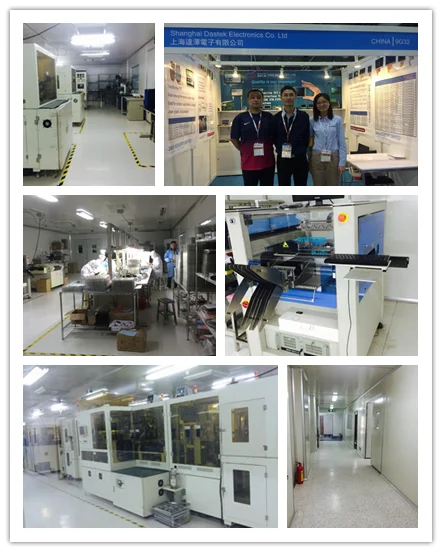

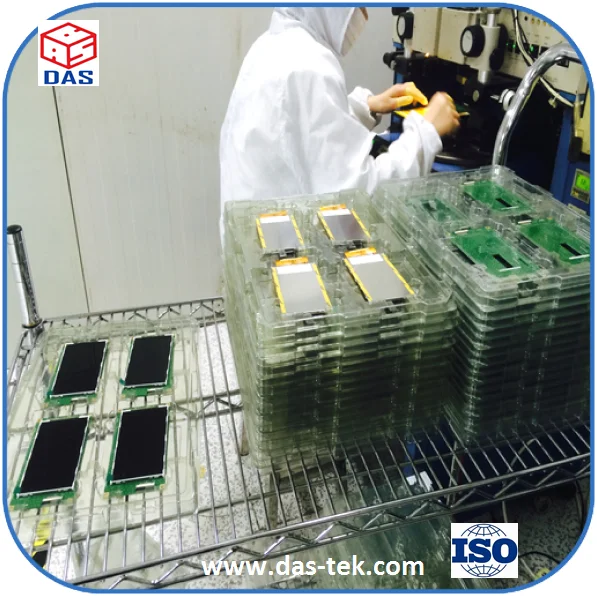

Our Factory

Product: Small&middle size TFT LCD(1.44’~10.1’),used in mobile phone, automative, industrialcontrol, POS machine, etc.

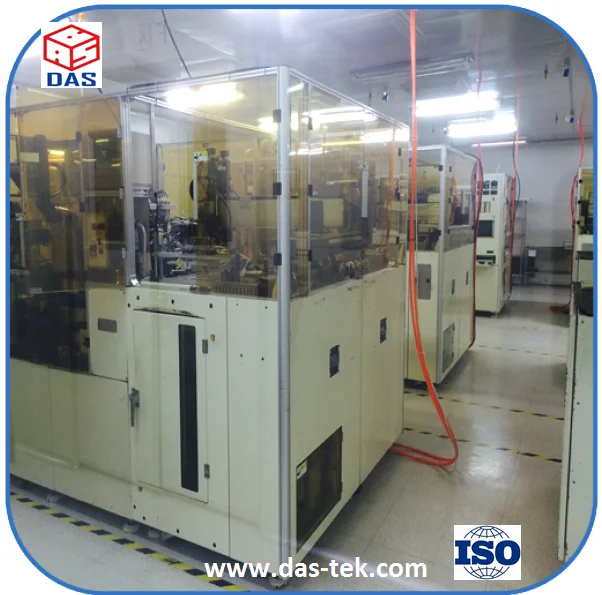

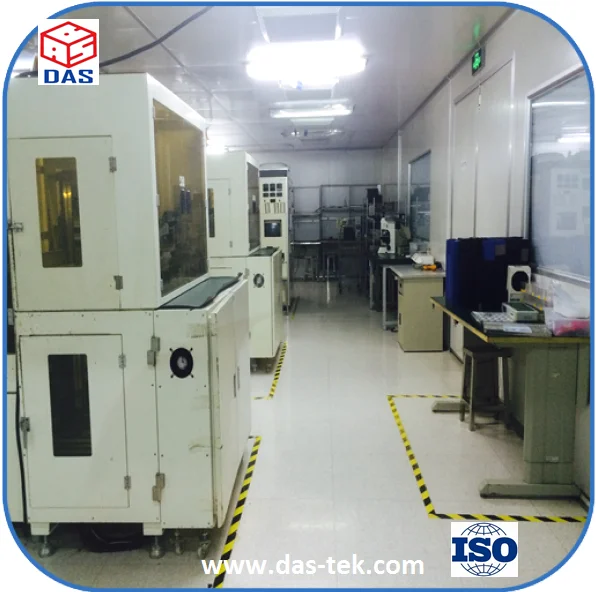

Our Factory

Brief: Factory is about 10000 ㎡, Office is about 2000 ㎡, 1000 employees.
Capacity: Small size 3KK/Month, Middle size 900K/Month.

Certifications

Packing & Delivery

Packing

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display

Quality	Each item must be tested OK before shipping
MOQ	1 pcs
Discount	More quantity, larger discount
Payment	T/T, Western Union, MoneyGram, Escrow etc
Package	Anti-static bag, Bubble bag, Carton box
Delivery Time	In 1-3 working days after payment confirmed
Shipping	DHL, EMS, Fedex, UPS, TNT, HK Post Air Mail etc
Warranty	90 days warranty

FAQ

Raspberry pi 3 model b HDMI to MIPI connection 3.4 inch 800*800 Round lcd display

Contact us :
DAS INDUSTRY LIMITED
The third building, 14# building,1818 Lane, Lianhang Road, Minhang District, Shanghai 201114, PRC.
Tel:86-21-51082662
Fax:86-21-51083662

Q1:Where to get the datasheet before orafter purchase?
please send mail to"sales06(at)das-tek.com",we will reply you in 24hours.

Q2:How do you add the extra function,does it need for charge?Just confirm the function with seller before your place an order,simple function is free.

Q3:Payment terms of customized service and mass order?
Customized Service:
According to product requirement of charge,100% T/T in advance. we will provide 2~3pcs free sample.
Mass Order:
30% T/T as deposit in advance, the balance will be paid before shipping.

Price

Price US$ 48 / Piece

Packaging & Shipping

- Packing10
- Delivery Lead Time3 days if in stocks
- Minimum Order 1 Piece
- Total quantity in Stock101 – 150
- Delivery PortShanghai
- HS Code9013803090
- Shipping Career

Product Image

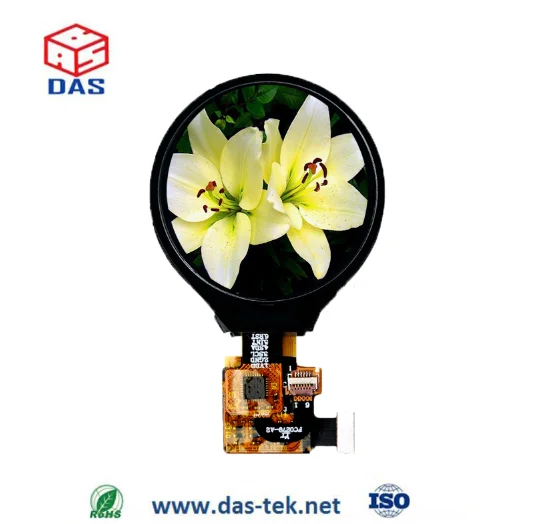

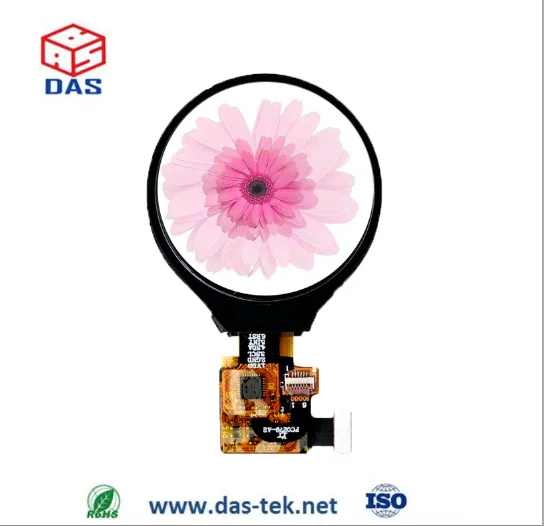

Raspberry Pi 3 Model B HDMI To MIPI Connection 3.4 Inch 800*800 Round LCD Display
