Refrigerator Fan Motor Is Easy To Install and Compatible with A Wide Range of Refrigerator

Add to Basket Share to :

Price

US$ 10

Min Order Quantity100 Piece
Payment Terms 6
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Retek Motion Co.,Limited
Membership Free member
Registration Date2011.10.18
Country/RegionChina
CitySuzhou
Contact Sean Zheng(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Rated Voltage 12VDC, Endplay 02-06mm, Performance Load 3350, Insulation CLASSB

Description by Manufacturer

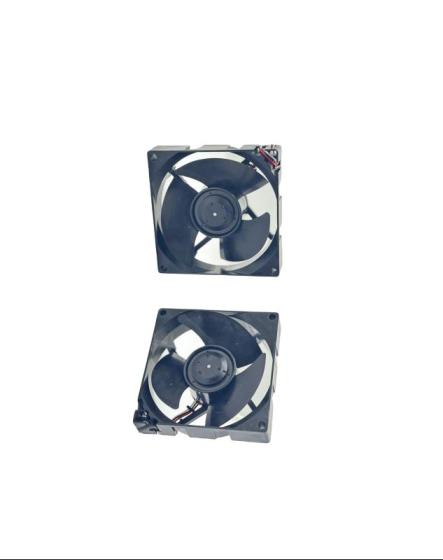

Refrigerator fan Motor

This motor is easy to install and compatible with a wide range of refrigerator models. It is a perfect replacement for worn-out or malfunctioning fan motors, restoring the cooling function of your refrigerator and extending its lifespan.

PRODUCT DETAILS

Product introduction

Our refrigerator fan motor is built with high-quality materials and precision engineering to deliver superior performance and durability. It is designed to operate quietly and efficiently, keeping your refrigerator at the optimal temperature without causing any disruption to your home.

In addition to its exceptional performance, our refrigerator fan motor is also energy-efficient, helping you save on your electricity bills while reducing your carbon footprint. Its low power consumption makes it an environmentally friendly choice for your home, aligning with our commitment to sustainability and eco-conscious design.

General Specification:

l Rated Voltage:12VDC

l Motor POLES:4

l Rotation Direction: CW(View From Base Bracket）

l Hi-POT Test:DC600V/5mA/1Sec

l Performance:Load:3350 7% RPM /0.19A Max /1.92W MAX

l Vibration：≤7m/s

l Endplay：0.2-0.6mm

l FG SPECIFICATION: Ic=5mA MAX/Vce(sat)=0.5 MAX/R>VFG/Ic/VFG=5.0VDC

l Noise：≤38dB/1m(Ambient Noise≤34dB)

l Insulation：CLASS B

l The Motor No-load Running Without Any Adverse Phenomena Such As Smoke, Smell, Noise, or Vibration

l The Appearance Af The motor Is Clean And No Rust

l Life Time: Contiune running 10000 hours Min

Application：

Refrigerator

Dimension:

Parameters

Items	Unit	Model
Items	Unit	Refrigerator fan Motor
Rated voltage	V	12(DC)
No-load speed	RPM	3300
No-load current	A	0.08

FAQ

1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
