Remote Power Controller

RPC-SP2, which is a Remote Power Controller, can allow the connected electric devices to be switched on and off respectively through networks and Internet with a simple mouse-click without any additional management web server installation. It has its own IP address, an Ethernet port, and an embedded web server for simple operation from any web browser.

FEATURES

Real time monitoring
- Status of an each outlet switch, current, and temperature inside.
Control an each AC outlet switch
- Control an each outlet switch to be on or off
Auto-restart Power on
- Set time for the auto-restart power on
Electric safety circuit
- Electric fuse and circuit breaker
- Warning message and shut down automatically over 12A current per an each outlet
Additional function
- integrated temperature sensor
- Various interface (USB, RS-232, 422, 485)
Cost saving of installation and management
- No additional management web server
- Embedded web server
Applications
- Remote management system, electric devices in office and industry
- Static IP and intra network
- Required an additional DNS server for DHCP

SPECIFICATION

Input power	110~220VAC / 20A
Output switching power	110~220VAC / 10A x 2CH
CPU	ARM 32bit Cortex-M3 Core 96 MHz Flash Memory : 2 x 128 Kbytes SRAM : 52 Kbytes
I/O Port	RS-232 : DB9 x 1ea RS-422/485 : Terminal Block x 1ea USB x 1ea
Size	Outer case 115mm x 390mm x 75mm
Power consumption	6W
Ethernet port	WAN, LAN (RJ-45 x 2ea)
Display panel	7-Segment : Status - Current per each outlet 4 LEDs : Status - Power, CPU, CH1, CH2
Operating Temp.&Humi	Temp. : -20 ~ +50°C Humi. : 10 ~ 90%
Certification	KC : HM04014-13001A EMI/EMS : MSIP-REM-CP7-RPC-SP2

APPLICATION

The RPC-SP2, which is a Remote Power Controller, can allow the connected electric devices to be switched on and off respectively through networks and Internet with a simple mouse-click without any additional management web server installation.
The RPC-SP2 can be used as an initial countermeasure for Hanging problem of Remote control system rapidly and safely
Remote initial countermeasure for Hanging problem of an industrial PC for a sensor network system rapidly and safely.
Remote Power off and restart for Hanging problem of an parking management system and CCTV for security, disaster, traffic, and weather rapidly and safely.

EFFECT

No visiting and manual operation : maintenance cost and energy saving
Initial countermeasure rapidly and safely : Providing a reliable remote control service to customer
Remote access and switch off electric power into devices when the they are not operated : Energy saving

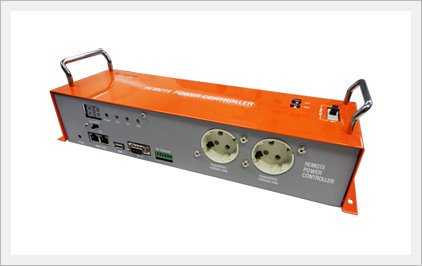

PICTURE OF PRODUCTS
