Rockchip RK3288 Single Board Computer EM3288

Add to Basket Share to :

Price

US$ 128 ~ 263

Min Order Quantity1 Piece
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Boardcon Technology Limited
Membership Free member
Registration Date2012.07.20
Country/RegionChina
CityShenzhen
Contact Dahl Woo(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Contact Supplier

Product Attributes

- Brand Name Boardcon
- Model Number Rockchip-RK3288
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords single board computer, Rockchip RK3288, RK3288, Android SBC

Description by Manufacturer

EM3288 is a single board computer based on the Rockchip RK3288, Quad Core Cortex-A17 at 1.8GHz. It is implemented with a MINI3288 computer-on-module providing most of the functions and interfaces, and the carrier board providing connectors and several additional functions. The rich feature set of EM3288 is customizable according to the price/performance needs of the target application. EM3288 contains expansion connectors which accommodate a wide range of standard peripheral devices.

EM3288 specifications
SoC – Rockchip RK3288 quad core ARM Cortex A17 processor up to 1.8 GHz with Mali-T764 GPU
System Memory – 512MB/1GB/2GB
Storage – 4/8/16/32GB eMMC flash, SATA, and micro SD slot
Video I/O
– HDMI 2.0 up to 3840×2160 at 60p
– VGA
– 1x 26-pin MIPI connector, 1x 40-pin LVDS (multiplexed with VGA), 1x 40-pin TTL LCD connector
Audio Output / Input – HDMI, Line IN and OUT 3.5mm jacks, and built-in MIC
Connectivity
– Gigabit Ethernet
– Optional 802.11b/g/n and Bluetooth4.0 via Ampak AP6236 module
– Optional 4G Module and SIM card slot
– Optional GPS via SATES (HK) ST-91-U7
USB – 3x USB 2.0 host ports, 1x micro USB OTG
Debugging – Serial console via 3-pin header
Expansion Headers – 1x 40-pin header for GPIOs, ADC, I2C, etc.
Misc – RTC, power and recovery buttons.
Power Supply – 5V/3A
Dimensions – 175.3 x 117.5 mm
Operating system – Android 9, Ubuntu16.04, buildroot

Price

Price US$ \ 128 ~ 263 / Piece

Product Image

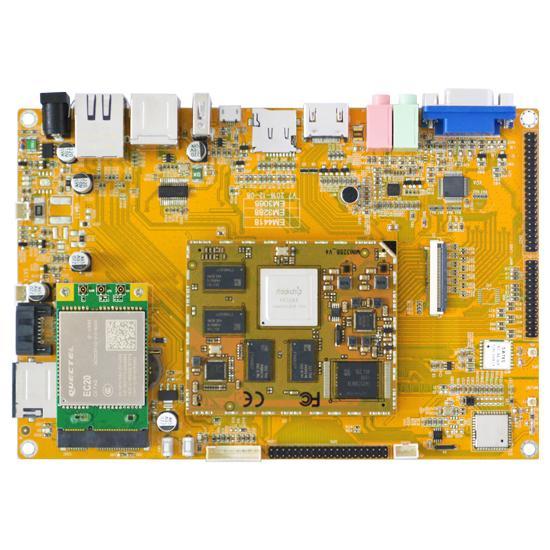

Rockchip RK3288 Single Board Computer EM3288

Rockchip RK3288 Single Board Computer EM3288 2

Single Board Computer Related Products

Company Profile

About Boardcon Technology Limited

Membership Free member
Registration Date2012.07.20
Country/RegionChina
CityShenzhen
Contact Dahl Woo(Ms.)

Boardcon Embedded Design established in 2010, is an Original Design Manufacturer dedicated to providing high quality ARM core based industrial Computer-on-Module, Single Board Computer and Evaluation board, Boardcon engineer has been developing embedded computing solutions for the OEM market over 10 years.The services are hardware design, driver development, BSP porting and BSP development. On the operating system side Boardcon specializes in Windows CE and embedded Linux. Our commitment to excellent products, low prices and exceptional customer support has encouraged our business to flourish in a very competitive marketplace. We offer a wide variety of ARM based SBCs, computer -on-module and peripherals that satisfy most embedded project requirements.

Our engineers are also enthusiastic about new projects and take pride in new designs that are on the cutting edge of the embedded marketplace. Custom designs are a large part of our business and, with our experience team of embedded engineers? we can provide our client a custom solution at a price that competes with an in-house design.
