Rof Electrical Optical Modulator Direct Light Transmission Module Photoelastic Modulator

Add to Basket Share to :

Price

US$ 999

Min Order Quantity1 Piece
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Beijing Rofea Optoelectronics Co.,Ltd
Membership Free member
Registration Date2019.06.18
Country/RegionChina
CityBeijing
Contact weidaha(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.weidaha

Beijing Rofea Optoelectronics Co.,Ltd

* Buying Product

Category : Other Electronic Components

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords direct light transmission, Optical Modulator, Intensity Modulator

Description by Manufacturer

Productdescription:

The ROF -DML -XX series of analog broadband direct-tuning transmitters use a highly linear microwave direct-coupled DFB laser (DML), a fully transparent operating mode without RF drive amplifiers and integrated automatic power control (APC) and automatic temperature control (ATC) circuit to ensures that the laser can transmit up to 18 GHz of microwave RF signals with long distances, high bandwidth and flat response, providing excellent linear optical fiber communication for a variety of analog broadband microwave applications. Due to the avoidance of expensive coaxial cable or waveguide, the transmission distance limit is canceled, which greatly improves the signal quality and reliability of microwave communication, being widely used in remote wireless, timing and reference signal distribution, telemetry and delay lines .

Features:

Excellent RF response flatness
Wide dynamic range
Entire transparent work applicable signal coding communication standard network protocols
Wavelength options: 1550nm DWDM wavelength
Integrate automatic power control and automatic temperature circuit
No built-in drive RF amplifier, providing more flexibility

Applications:

Remote antenna
Long-distance analog optical fiber communication
three wave communication
Tracking telemetry and control
Delay lines
Phased array

Please contact us for correct quotation

Performanceparameters

Parameter	Unit	Min	Typ		Max	Remarks
Optical characteristics
Laser type		DFB
Operating wavelength	nm	1530		1550	1570	DWDM is optional
Equivalent noise intensity	dB/Hz				-145

SMSR		dB	35		45
Light isolation		dB	30
Output light power		mW	10
Light return loss		dB	50
Optical fiber type			SMF-28E
Optical fiber connector			FC/APC
RF characteristics
Operating frequency@-3dB		GHz		0.1		6
				0.1		10
				0.1		18
Input RF range		dBm		-60		20
Input 1dB compression point		dBm			15
In-band flatness		dB		-1.5		+1.5
Standing wave ratio						1.5
RF reflection loss		dB		-10
Input impedance		Ω			50
Output impedance		Ω			50
RF connector				SMA-F
Power supply
Power supply	DC	V			5
		V			-5
Consumption		W				10
Power supply interface				Wear capacitance

Limitconditions

Parameter	Unit	Min	Typical	Max	Remarks
Input RF power	dBm			20
Operating voltage	V			13

Operating temperature	ºC	-40	+70
Storage temperature	ºC	-40	+85
Operating relative humidity	%	5	95

Price

Price US$ 999 / Piece

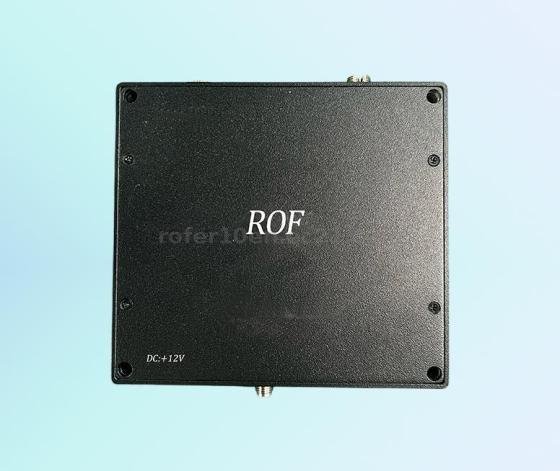

Product Image

Rof Electrical Optical Modulator Direct Light Transmission Module Photoelastic Modulator
