Rofea' modulator bias controller is specially designed for Mach- Zehnder modulators to ensure a stable operation state in various operating environments. Based on its fully digitized signal processing method, the controller can provide ultra stable performance.

The controller injects a low frequency, low amplitude dither signal together with bias voltage into the modulator. It keeps reading the output from the modulator and determines the condition of the bias voltage and the related error. A new bias voltage will be applied afterwords according to the previous measurement. In this way, the modulator is ensured to work under proper bias voltage.

Feature:

•Provides three biases for IQ modulators Modulation format independent:
•QPSK, QAM, OFDM, SSB verified
•Plug and Play:
No manual calibration needed Everything automatic
•I, Q arms: controll on Peak and Null modes High extinction ratio: 50dB max1
•P arm: controll on Q+ and Q- modes Accuracy: ± 2°
•Low profile: 40mm(W) × 28mm(D) × 8mm(H)
•High stability: fully digital implementation Easy to use:
•Manual operation with mini jumper Flexible OEM operations through UART2
•Two modes to provide bias voltages: a.Automatic Bias Control b.User defined bias voltage

Application:

•LiNbO3 and other IQmodulators
•QPSK, QAM, OFDM, SSB and etc
•Coherent Transmission

Specifications:

Please contact us for an accurate quotation

Parameter	Min	Typ	Max	Unit
Controll Performance
I, Q arms are controlled on Null(Minimum) or Peak(Maximum) point
Extinction ratio		MER¹	50	dB
P arm is controlled on Q+(right quadrature) or Q-( left quadrature) point
Accuracy at Quad	−2		+2	degree²
Stablization time	15	20	25	s
Electrical
Positive power voltage	+14.5	+15	+15.5	V
Positive power current	20		30	mA
Negative power voltage	-15.5	-15	-14.5	V
Negative power current	8		15	mA
Output voltage range	-14.5		+14.5	V
Dither amplitude		1%Vπ		V
Optical
Input optical power³	-30		-8	dBm
Input wavelength	1100		1650	nm

1. MER refers to Modulator Extinction Ratio. The extinction ratio achieved is typically the extinction ratio of modulator specified in modulator datasheet.
2. Please be noted that input optical power does not correspond to the optical power at selected bias point. It refers to the maximum optical power that the modulator can export to controller when bias voltage ranges from −Vπ to +Vπ .

Price

Price US$ 999 / Piece

Product Image

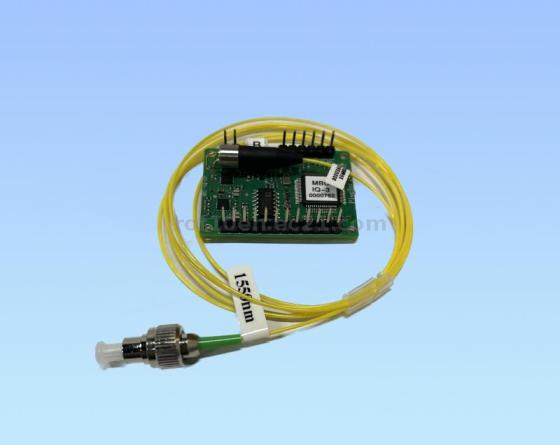

Rof Electro Optic Intensity Modulator Iq Modulator Bias Controller for Mach Zehnder Modulator
