Rotating PCB Slip Ring Ultra Thin 6mm with Silver Plated Copper Lead Wire

Add to Basket Share to :

Price

US$ 60

Min Order Quantity5 Piece
PortShenzhen
Payment Terms 4CC
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name JARCH Slip Ring
Membership Free member
Registration Date2019.01.07
Country/RegionChina
CityShenzhen
Contact Kris(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Kris

JARCH Slip Ring

* Buying Product

Category : Electronic Products & Components Processing

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name JARCH
- Model Number JSR-PS025-6P10
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Blue
- Related Keywords PCB Slip Ring, Slip Ring, Rotating Slip Ring, Ultra Thin Slip Ring, pancake Slip Ring

Description by Manufacturer

High speed 360° Rotating Electric PCB Pancake slip ring ultra thin 6mm pancake slipring 12 circuits

with the thickness as thin as 6mm. They are designed exclusively for rotation system

in which installing space is limited in height at vertical direction. Both separate and stand-alone pancake electrical slip rings are available. Reliable contact and ultra-low electrical noise of the light slip ring, together with a high rotating speed are the notable characteristics. They are proven to be of qualified products, secured by the full-fledged quality control center. Moreover, Such Pancake units for encoder are equipped with ready-made photoelectric encoders. Moreover, they can stand the wet calorific test. 360ÃƒÂ‚Ã‚Â° rotating transmission without surge kind of interference or data package loss wins the customers recognition.

Quick Details:

Model Number:	JSR-PS025-6P10	Current Rating:	10A
Inner Size:	25mm	Circuits:	6
Volt AC/DC(V):	mV~240Vac/Vdc	Contact Material:	Gold-Gold contacts
Speed(rpm):	250RPM	Thickness:	5mm

Packaging & Delivery:

Packaging Details:

Standard Export carton Package

Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......

High speed 360° Rotating Electric PCB Pancake slip ring ultra thin 6mm pancake slipring 12 circuits

Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;

JSR-PS025-6P10

Hole size: 25mm , Thickness:5mm

2,3,4,6,8,12,18,24 circuit version

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. JSR-PS025-6P10, with 5mm thickness and hol size 25mm, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates

The JSR-PS025-6P10, with 2 ~ 24 circiuts and compact 5mm body thickness, which we call our disk slip ring .

Benefits:

Longer lead lengths available
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available

Dimensions:

High speed 360° Rotating Electric PCB Pancake slip ring ultra thin 6mm pancace slipring 12 circuits

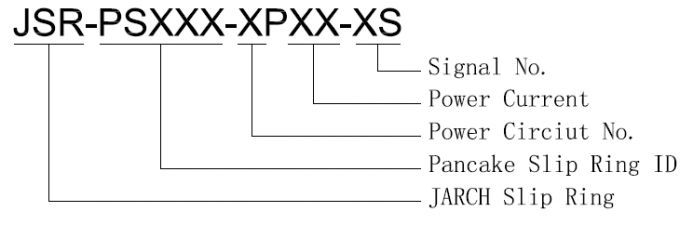

Model Explanation:

360 ° Rotating PCB Slip Ring Ultra Thin 6mm With Silver Plated Copper Lead Wire

Specifications:

Operating Speed	0-300 rpm
Number of Circuits	2 ~ 24
Voltage	240 VAC/DC
Current Rating	10A per circuit
Temperature Range	-20°Cto +80°C
Contact Material	Gold to Gold
Lead Size	22# silver plated copper
Lead Length	Standard 250 mm(9.843inch)
Dielectric Strength	≥500 VAC 50Hz, between each circuit
Insulation Resistance	100 MΩ 500 VDC
Electrical Noise	5mΩMin

Applications:

Filling equipment
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment

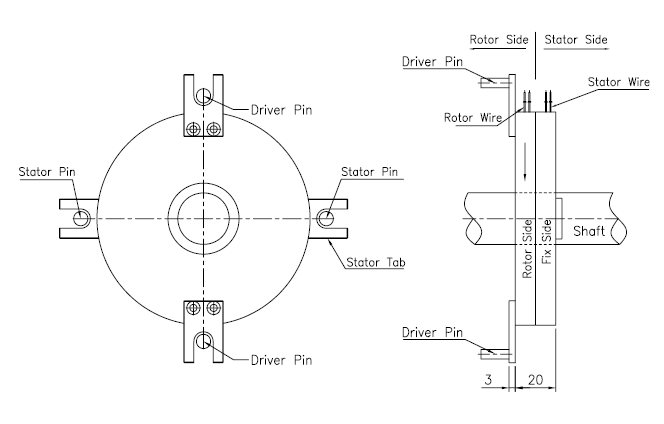

Installation Instructions:

Flange mounted:

360 ° Rotating PCB Slip Ring Ultra Thin 6mm With Silver Plated Copper Lead Wire

If you have any questions, please contact us without any hesitation.

Price

Price US$ 60 / Piece

Product Image

Rotating PCB Slip Ring Ultra Thin 6mm with Silver Plated Copper Lead Wire

PCB Slip Ring Related Products

Company Profile

About JARCH Slip Ring

Membership Free member
Registration Date2019.01.07
Country/RegionChina
CityShenzhen
Contact Kris(Ms.)

Attn:Kris Yao
Kakao:krisyao313
Skype:krisyao313
Wechat:laoyao313

Shenzhen JARCH Electronics Technology Co.,Ltd. is a professional manufacturer and designer of slip rings & rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000 m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,Beihang University,etc), and own a skilled management team.To create the brand and do famous brand,we carry out strict performance.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome!
