SL120-80SPM Motor 60V 3KW

Add to Basket Share to :

Price

US$ 185

Min Order Quantity1 Piece
Supply Ability1000
PortShanghai
Delivery Lead Time7
Payment Terms 5ALIPAY
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Hunan Senli Magnet and Electric Technology Co.Ltd
Membership Free member
Registration Date2024.10.30
Country/RegionChina
CityZhuzhou
Contact Richard Liu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Richard Liu

Hunan Senli Magnet and Electric Technology Co.Ltd

* Buying Product

Category : Electric Scooters

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Senlimotor
- Model Number SL120-80
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Dark Blue
- Charging Time 6-8h
- Range Per Charge 60-80km
- Related Keywords 60V3KW BLDC motor, Elelctric motorcycle, Electric gokart, Elelctric boat, electric MTB

Description by Manufacturer

SL120-12-80
SPM MOTOR

HunanSENLI Co. produces SL120 series PM motor ,The series motors are with Stator
diameter 120mm , 12 slots , 8polars Magnets SPM , 50mm 60mm 80mm,Lamination sheet material is 35WW270 ,
Thickness 0.35mm , has very good properties .Rotor with N40SH Magnet (Ni-Cu-Ni Coating) have good high temp
properties ,It is water –proof , less
weight , small diameter , high output power , SL120 series motor can be used in
Electric Bike , E-Down Hill Bike , E-Mountain Bike , Electric motorcycle and
E-trike, E trator , E lifter .

Properties:

1.60V RatedPower3KW, 3500RPMMax 10.0NM 8KW

2.Outside Shaft D14 X30mmkeyslot 4mmX4mm

3.Barrel Length :116mm Total：136mm

4.weight ：6.2KG

Senli motors Co, developed SL120-80 BLDC motor , this Neodymiun magnet motor is 12 slots and 8 magnets , with Hall sensors , KTY 83-120 temperature sensors , AWG8 silicon cable ,
it weights 6KGS and 48V-72V working voltage , 150A Current , rated 3KW Peak 16KW, it is good for electric motorcycle, Razor bike, electric mountain Bike .
  the outshaft is D14mm can use sprocket 219H , 420 , 428 chain. max speed of E motorcycle can be 110KM/H . Kelly controller KBS7215 KBS7218 can run this motor . with low noise , high properties ,
  SL120-80 motor is a good Electric motorcycle engine.

SL 120-80 BLDC motor , with Hall sensors , KTY 83-120 temperature sensors , AWG8 silicon cable ,
it weights 6KGS and 48V-72V working voltage , 150A Current , rated 3KW Peak 16KW, it is good for electric motorcycle, Razor bike, electric mountain Bike .
  the outshaft is D14mm can use sprocket 219H , 420 , 428 chain. max speed of E motorcycle can be 110KM/H . Kelly controller KBS7215 KBS7218 can run this motor . with low noise , high properties ,
  SL120-80 motor is a good Electric motorcycle engine.

Price

Price US$ 185 / Piece

Packaging & Shipping

- Packing1
- Packaging Size30 x 25 x 20 ( Centimeters)
- Package Weight 7 ( Kilograms )
- Delivery Lead Time7
- Minimum Order 1 Piece
- Supply Ability1000
- Total quantity in Stock151 – 300
- Delivery PortShanghai
- HS Code8503010000
- Shipping Career

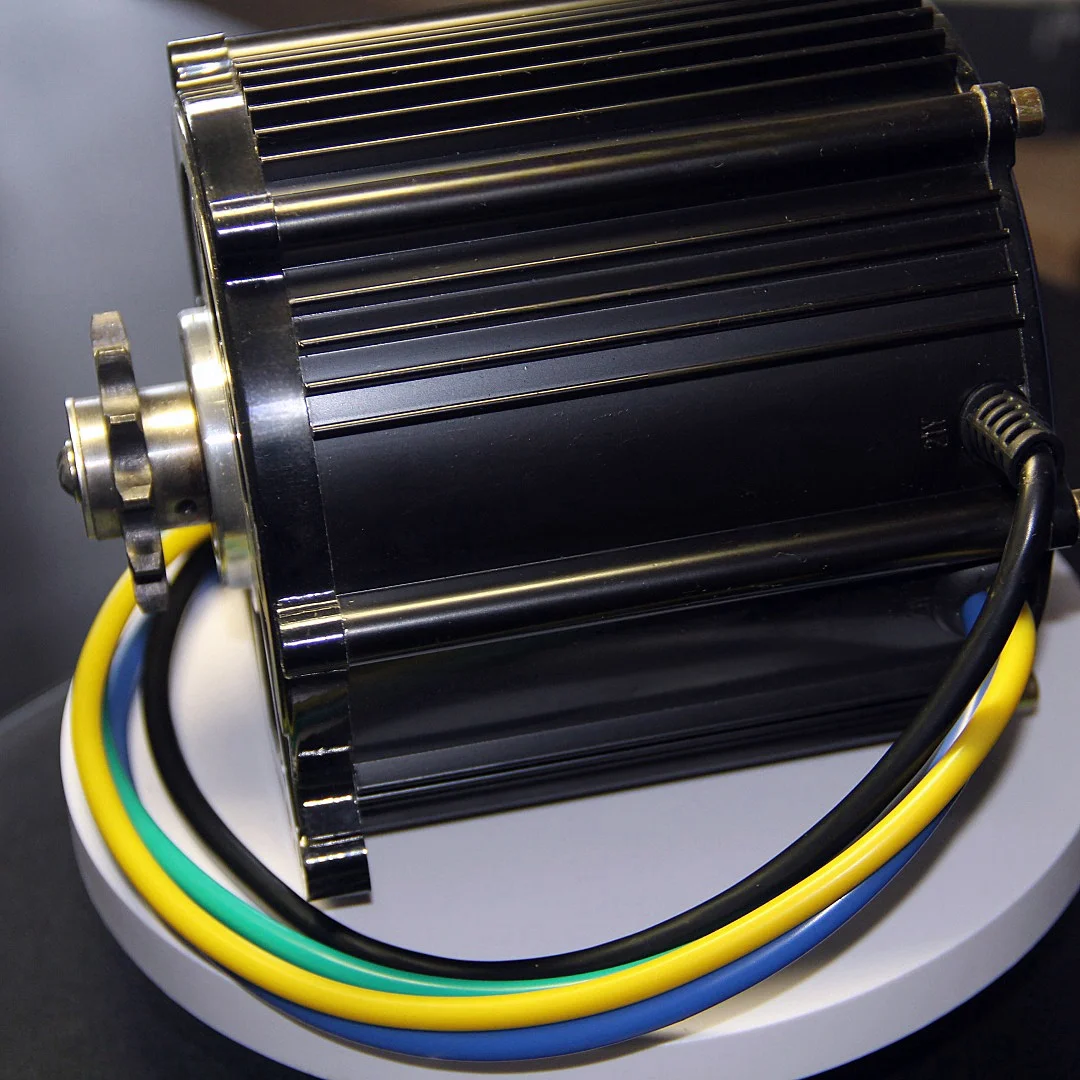

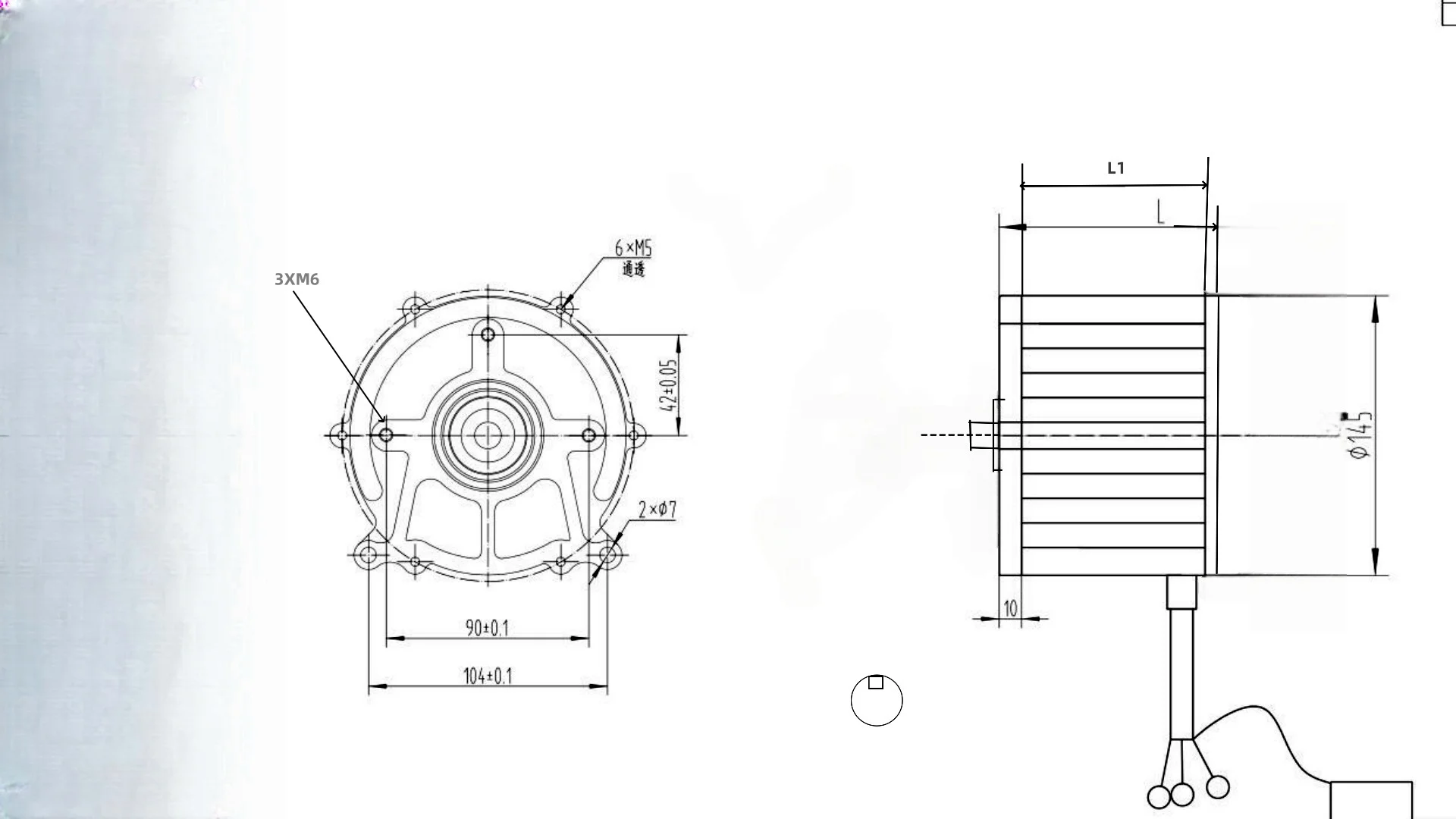

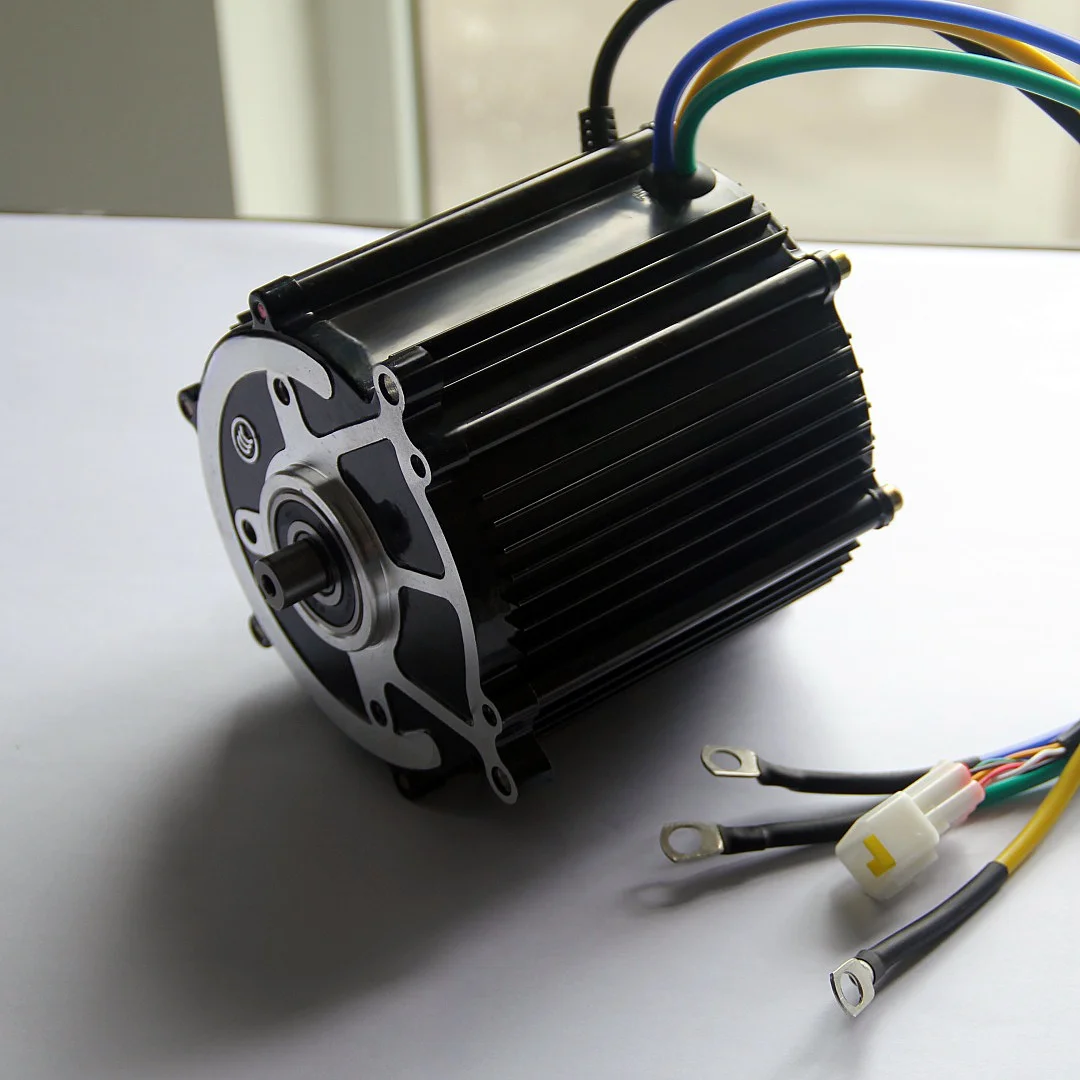

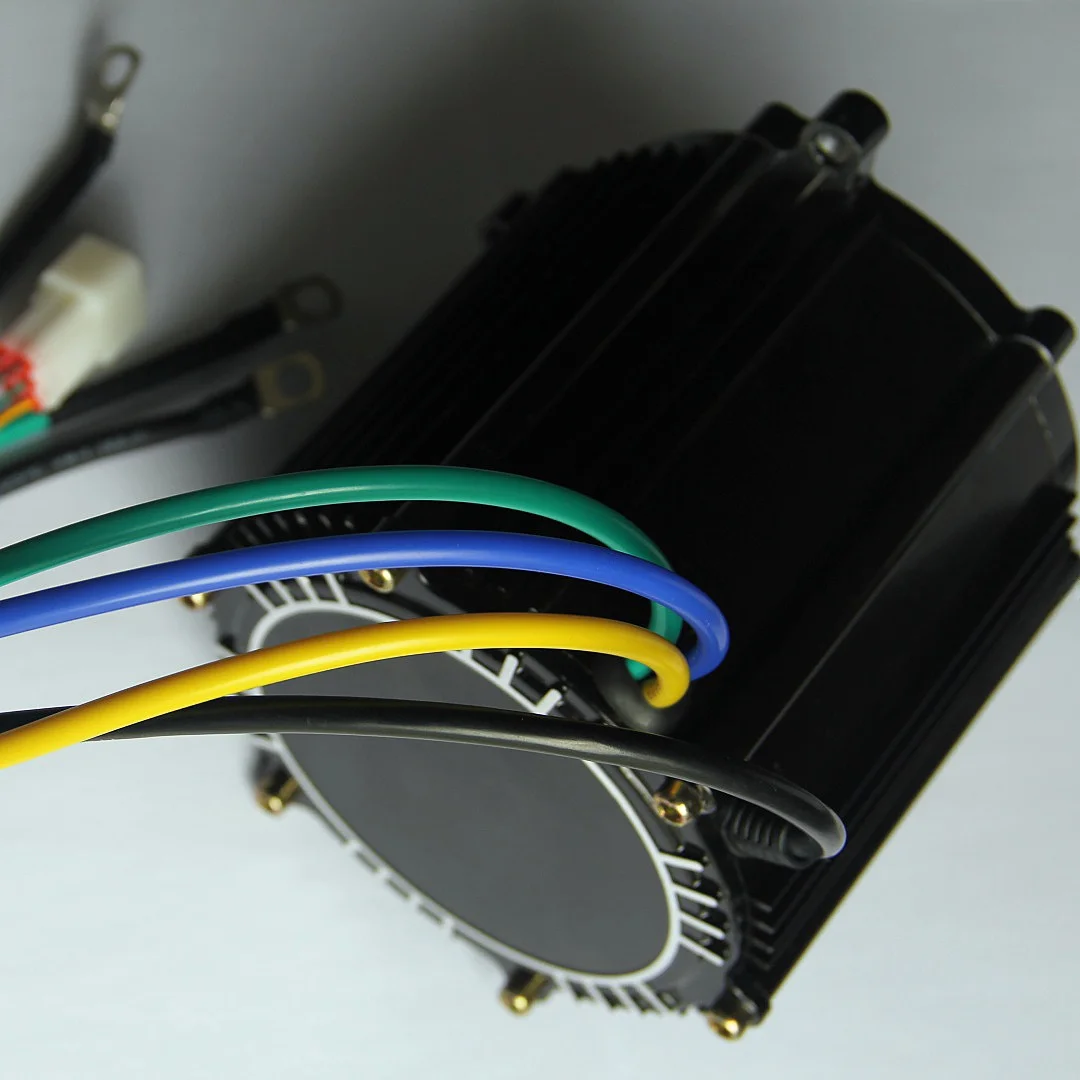

Product Image

60V3KW BLDC Motor Related Products

Main Export Markets

- Hunan Senli Magnet and Electric Technology Co.Ltd is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia

Download Product Brochure

35 MOWER MOTOR.pdf (0.52 Mb)

Company Profile

About Hunan Senli Magnet and Electric Technology Co.Ltd

Membership Free member
Registration Date2024.10.30
Country/RegionChina
CityZhuzhou
Contact Richard Liu(Mr.)

Hunan Senli Magnet and Electric Technology Co,. is a manufacturer of PMSM and BLDC motor .
Main products : 24V--72V-100V, 250W /350W /750W,1KW, !.5KW, 2KW, 3KW, 6KW 10KW BLDC motor
and PMSM motor .
PMSM motor is using for elelctric scooter , electric bike , E MTB , E ATV , E go kart , E boat/
And HNSL provides controller Sabvoton , Fadrive , Kelly controller for PMSM motor/
