SMT Automatic Magazine PCB Unloader for SMT Chip Mounter Assembly Line

Add to Basket Share to :

Supply Ability100Sets/Mouth
PortSHENZHEN
Delivery Lead Time15-25days
Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Honreal Technology Co.,Ltd
Membership Free member
Registration Date2018.03.27
Country/RegionChina
CityShenzhen
Contact monicawang(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.monicawang

Shenzhen Honreal Technology Co.,Ltd

* Buying Product

Category : Electronics Production Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name HONREAL
- Model Number HR-250X
- Place of Origin China
- Supply Type OEM Service
- Condition New
- PCB loading time Approx 6 seconds
- Magazine change-over Approx 30 seconds
- PCB size (L×W)～(L×W) (50x50)～(350x250)
- Machine size (L×W×H) 1700×750×1200
- Magazine size (L×W×H 355×320×563
- Related Keywords Automatic Magazine PCB Unloader, SMT Chip Mounter, Automatic Magazine PCB loader

Description by Manufacturer

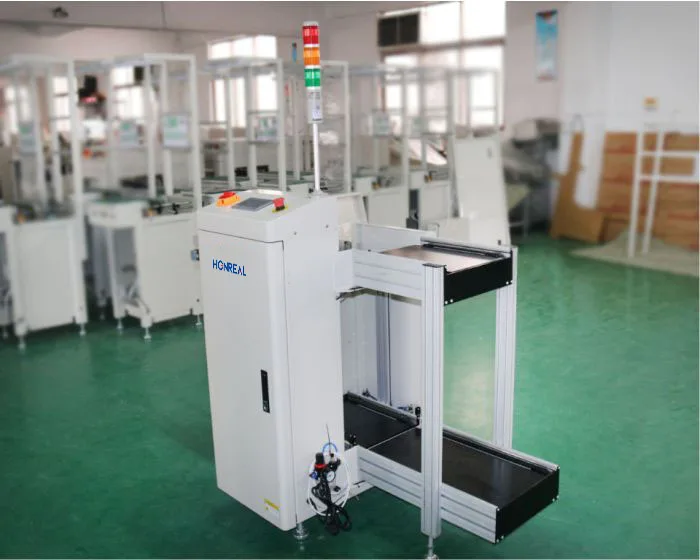

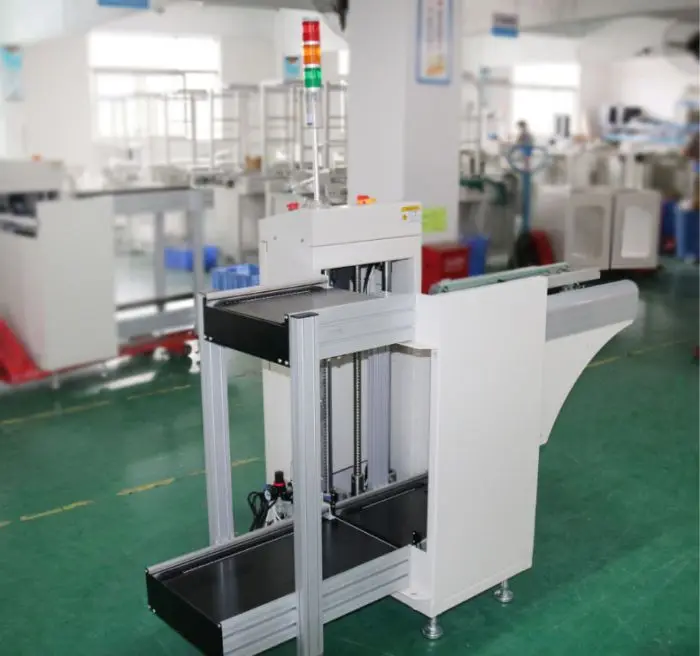

High quality Automatic PCB Magazine Unloader for SMD Pick and Place Production Line

Product introduction:

1.This equipment is used to collect PCBs into magazine at the end of SMT production line

2.Stable and reliable PLC control system;

3.Easy to operate LED touch screen control interface;

4.The pneumatic clamps of top and bottom three point provided for the magazine alignment;

5.Effective thrust design can ensure the PCB is unbroken;

6.2 magazines loading capability.

7.Direction from left to right or right to left(optional).

8.Machine always fault monitoring;

9.Solid and stable design;

10.SMEMA port is compatible;

Technical parameters
Function	This equipment is used to collect PCBs into magazine at the end of SMT production line
PCB thickness	Min0.6mm
Magazine number	Transport up:1pcs,transport down:1ps,(or customized)
Step pitches select	1-4(10mm step pitches)
PCB loading time	Approx 6 seconds
Magazine change-over time	Approx 30 seconds
Transport direction	Left to right/right to left(optional)
Transport height	900±20mm(or customized)
Air pressure	4-6 bar, MAX10L/minute
Power supply	100-230V AC(customized) single phase, MAX 300V/A

Specifications
Model No	HR-250X	HR-330X	HR-390X	HR-XB460X
PCB size (L×W)~(L×W)mm	(50x50)~(350x250)	(50x50)~(455x330)	(50x50)~(530x390)	(50x50)~(530x460)
Machine size (L×W×H)mm	1700×750×1200	1950×830×1200	2210×920×1200	2210×990×1200
Magazine size (L×W×H)mm	355×320×563	460×400×563	535×460×570	535×530×570
Weight	130kg	150kg	170kg	185kg

Company Information

Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents

High quality Automatic PCB Magazine Unloader for SMD Pick and Place Production Line

work shop

High quality Automatic PCB Magazine Unloader for SMD Pick and Place Production Line

Certification

High quality Automatic PCB Magazine Unloader for SMD Pick and Place Production Line

Exhibition

High quality Automatic PCB Magazine Unloader for SMD Pick and Place Production Line

FAQ

Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.

Q:How is the training?

A:After buying our machines, your engineers can go to our company or it is so easy to operate

the machine according the training video and user manual,the user manual will come with the machine together.

Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Aogeo perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.

Q: Is it hard to use these machines?

A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.

Packaging & Shipping

High quality Automatic PCB Magazine Unloader for SMD Pick and Place Production Line

Contact

High quality Automatic PCB Magazine Unloader for SMD Pick and Place Production Line

Packaging & Shipping

- PackingWoodencase
- Package Weight 150 ( Kilograms )
- Delivery Lead Time15-25days
- Supply Ability100Sets/Mouth
- Delivery PortSHENZHEN
- Shipping Career

Product Image

SMT Automatic Magazine PCB Unloader for SMT Chip Mounter Assembly Line

Company Profile

About Shenzhen Honreal Technology Co.,Ltd

Membership Free member
Registration Date2018.03.27
Country/RegionChina
CityShenzhen
Contact monicawang(Ms.)

Shenzhen Honreal Technology Co., Ltd is a national high-tech enterprise, Specializing in smt equipment research and development, production, and sales. Services for the worlds top 500 electronic companies. The registered capital of the company is 5 million. Having an experienced technical team and excellent technical innovation ability, Creating a better product supply chain and service team, and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first, and providing valuable services.

We take "honor, honest, honey, real" as our corporate culture. The quality of the company's products is reliable, the company is honest and trustworthy, establishes a close cooperative relationship with customers, and shares glory with customers.

Selling Categories

- Electronic Components & Supplies >> Electronics Production Machinery

Keywords

smt peripheral equipment , pick place machine , smt spare parts , Furnace Temperature Curve Tester

Registration Date	2018/03/27(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2016
Employees total	51 - 100
Annual revenue	USD 1,000,001 - 2,000,000

Contact Information Order Credit Report

Company	Shenzhen Honreal Technology Co.,Ltd
Address	15, Shangnan Hongma Road, Shajing Street, Bao'an DistrictShenzhenGuangdongChina
Phone	86 - 0755 - 23020376
Fax	86 - 07556 - 23306782
Homepage	http://szhonreal.com
Contact	monicawang
