NeoDen4(TM4120V) with camera, the brand new and long awaited model of NeoDen, is a desktop Pick andPlace machine with vision system.
As a professional PnP machine designer and developer, NeoDen has been doing research in SMT industry from 2010.

NeoDen4 is with dual cameras, auto rails, auto electronic feeders and 4 placement heads, which could help to handle 0201,
BGA, QFN and 0.8m/1.2m/1.5m LED strip. NeoDen4 is the best choice to satisfy all demands of high precision, high capacity, stable performance and low cost. This is a huge breakthrough not only for NeoDen,but also for small and medium-sized enterprises, those who want to improve placement accuracy and speed up PCB assembly with a limited budget.

Parameters:
Number of Heads with Vision enabled:4
Placement Rate:10000PCS/H(vision off) 5000PCS/H (vision on)
Feeder Capacity:Tape Reel Feeders:48
Tape width:8mm,12mm,16mm,24mm
Vibration Feeders:5
IC Tray Capacity:5
Component sizes with vision:Smallest Component size:0201 Largest
Component size:TQFP240
Applicable Components:0201,BGA,SOIC,SSOP,QFN,TQFP,Led Component,Diode,Triode,Tack Switch
Component Height Maximum:5mm
Resolution X/Y axis:0.01mm Z axis:0.1mm
Rotation:+/-180(360)
Positioning Accuracy:+/-0.02mm
X-Y repeatability:+/-0.02mm
Applicable PCB area:350mm*400mm
Placement Area:310*400mm(without waffle Tray) 140*400mm(With 1 waffle Tray)
Programming:SOFTWARE AUTOMATIC PROGRAMMING/MANUAL MECHANICAL PROGRAMMING
Main Control:GUI
Power Supply:220V, 50Hz (convertible to 110V)
Power:180W
External Dimensions:Machine:87*68*48CM
Packing size:94*74*60CM
Net Weight:60KGS
Gross weight:80Kgs

Main Features

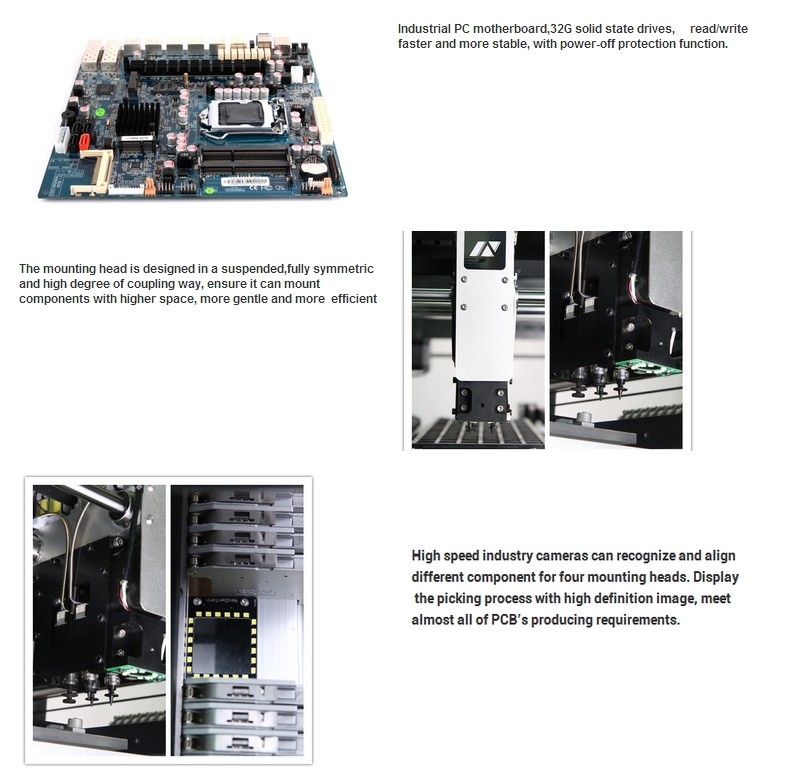

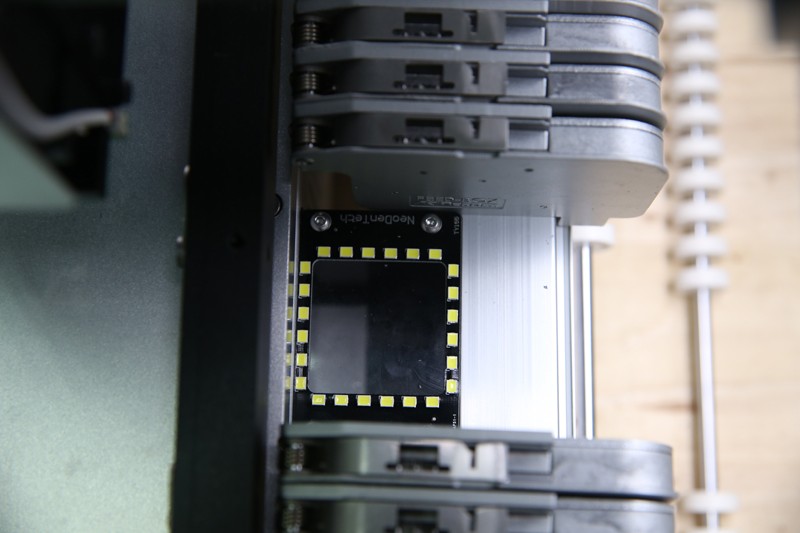

1. Dual vision system (up-looking and down-looking camers), identify and calibrate the different components at one

time, improves the accuracy of placement from 0201 to BGA;

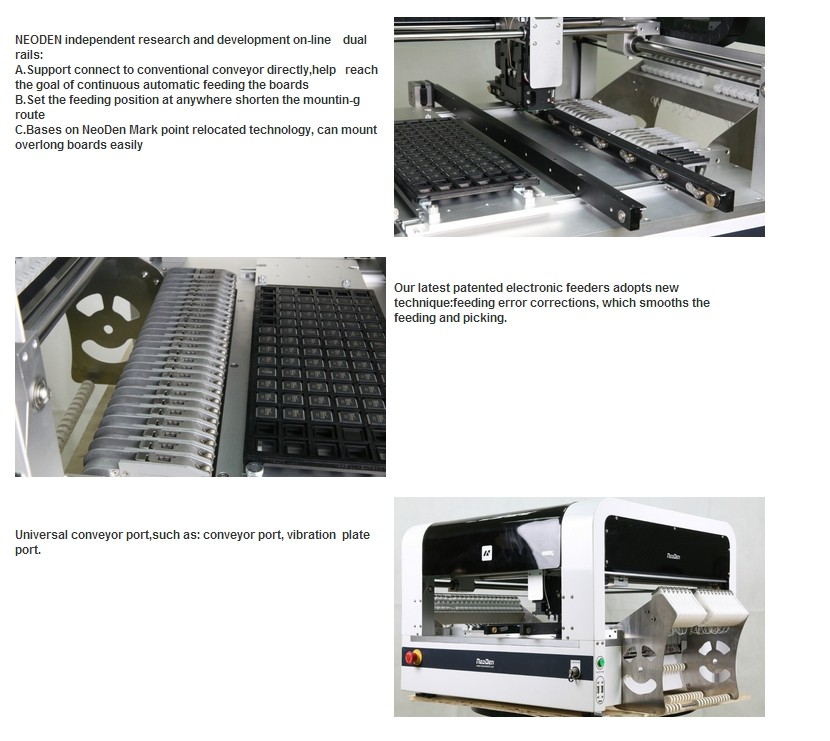

2. Auto rails, help to achieve continuous placement and solve the problem of long LED bar, ex. 1.2m LED strip;

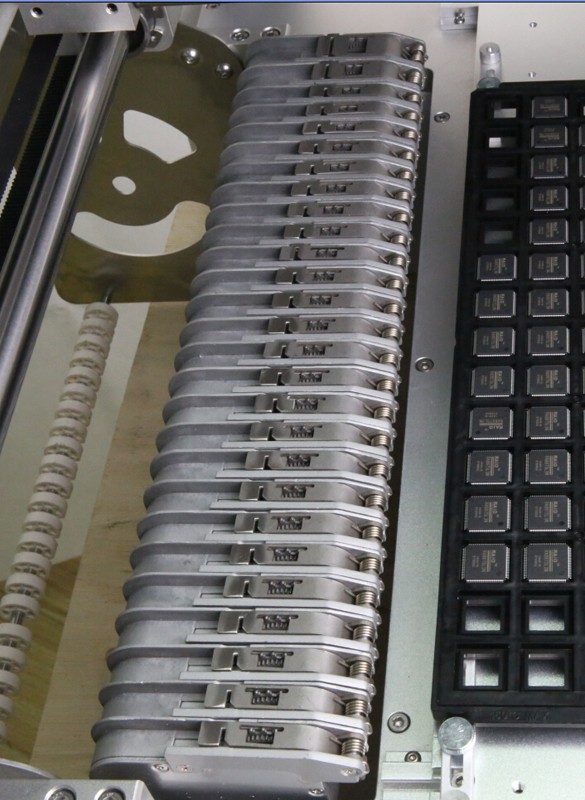

3. Automatic electric feeders, reduce the feeding deviation;
166-1

6. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you;
Certifications:
5G`~0_2)HMZ%M~P$6J[~)FE

Established in 2010, NeoDen Technology Co.,Ltd., is a high-tech corporation located in Hangzhou, China. Our primary products are desktop automatic pick and place machines. In China, we are the leader in this technology with CE and more than 30 patents registered.

Highlights:
JFSOLQUF9($OHDO1U%8U5BV

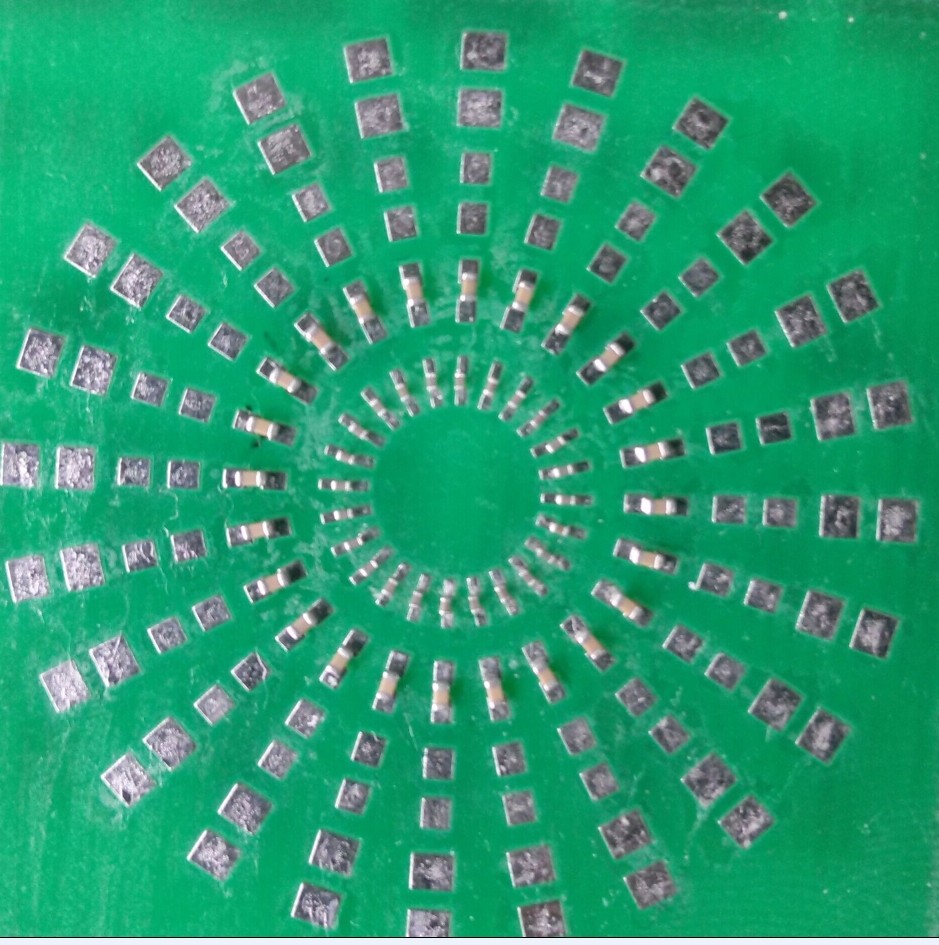

Mounting Effect:

Why Choose NeoDen:

1.Light weight body,occupy small area

2.User friendly interface,no need professional SMT engineer,entry-level device

3.High integrated,no need extra pump or any supporting facility

4.High accuracy and reliability,make up the defection of manual work

5.Low cost,reduce expense to own a professional automatic SMT production line

6.International express with door to door service,3-5 working days delivery

7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment

Our Service:

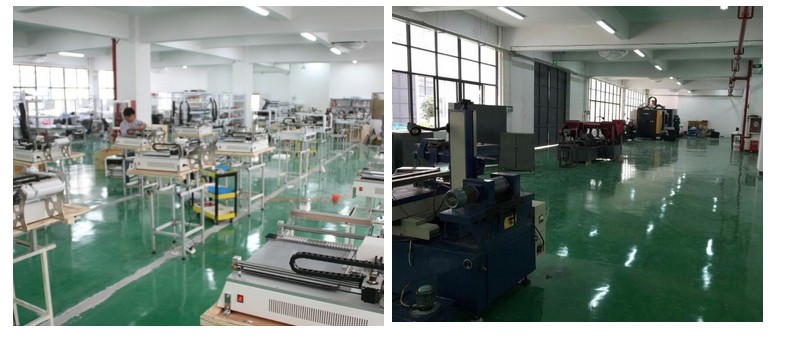

Factory Overview:

Accessories:
1) Pick and Place Machine NeoDen4: 1
2) Nozzle: Totally 10 (XN07=3,XN14=3,XN40=2,XN22=2)
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Reel holder stand:1
10)Vibration Feeder:1
11)User Manual:1

Warranty:

The complete machine has a warranty period of TWO year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and troubleshooting support and technical advice service.

You also contact via below method:
tonny @ neodentech.com Skype:tonny-neoden

Certificates

- CE 12821505170070

Price

Price Condition EXW
Price USD 6499 / Set

Packaging & Shipping

- PackingNon-fumigation plywood case
- Packaging Size94 x 74 x 60 ( Centimeters)
- Package Weight 80 ( Kilograms )
- Delivery Lead Time7-10 days for ready goods
- Minimum Order1 set
- Supply Ability100 SETS Per Month

Product Image

SMT Pick and Place Machine with Vision System NEODEN4

SMT Related Products

Company Profile

About Neoden Tech Co.,Ltd

Membership Free member
Registration Date2013.07.30
Country/RegionChina
CityHangzhou
Contact Tonny Chen(Mr.)

Technical Parameters
Version TM220A
Applicable PCB 20mm*20mm~220mm*200mm
Placement head quantity 2
Max mounting capability 7000PCS/h
Positioning accuracy ?.025mm
Applicable Components 0402-5050,SOP, QFN, IC
Components supply configuration Tape reel, bulk package (IC)
Tape width 8mm, 12mm, 16mm
Feeders 16 (8mm=12, 12mm=2, 16mm=1, bulk IC=1)
External Dimension L 830mm? 455mm? 285mm
Vacuum pump -92KPA (Mute type pump)
Vacuum pump quantity 2 (Built-in)
Power supply 220V, 50Hz (Convertible to 110V)
Average working power 100W
Weight G.W: 45KG (N.W: 25KG)
Packing size L 101cm? 61cm? 48cm

Video Shows:
http://www.tudou.com/home/item_u119688418s0p1.html

1.Vacuum detection, automatically dispose and make up if picking fail or pick misaligned
2.Standard 8G SD card, mass storage of CSV working file, big enough for you to setup hundred thousands files.
3.Integrated Automatic Feeders (cost saving, no need to buy extra mobile feeders), Automatic Nylon Spool Wheel (Very convenient, tape Nylon skin automatically peel away)
4.Easy programming, only takes 5mins: use Protel tool to extract the PCB circuit coordinate file, and use the format transformation tool we provided to you to transform the file format, and then copy to the SD card, insert to the machine, then you could use the file directly.
5.Can mount 0402, 0603, 0805, 1206, 1812, 2010, 2512, SOT-23, LED (3528, 5050), SOT89, SOP-8, SOP-14, SOP-16, SOT-223, SOT-252 and IC components (IC size under 16*16mm, PIN foot less than 100, fine-pitch above 0.6mm, the height of component less than 3mm) with required precision.
Standard Accessories:

1) Pick and Place Machine TM220A: 1
2) 4 types of nozzle: Totally 6 (XS?2, S?2, M?1, L?1).
3) 8G SD Card: 1
4) Card reader: 1
5) Nozzle disassembly tool: 1set
6) Adjustment tool for Nylon Spool Wheel: 1
7) Nozzle cleaning tool: 1 set
8) User manual: 1
9) Video training course: 1 set
10) PCB Coordinate file trans
