Product Attributes

- Brand Name Techwin
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords data line surge protectio

Description by Manufacturer

Data line surge protector series are mainly used in TCP/IP communication networks to protect electrical and electronic equipment's signal line from the impact of lightning electromagnetic pulse, induced over-voltage, transient operation, and resonance overvoltage.

Features Of SPD For Network / Data Line Surge Protector

Multi. Protection circuits, Gas-Tube+ TVS technology

Dual protection in Common mode and differential mode

TVS array technology, low capacitance

Multi-Strike Capability

RJ45 connector

Application Of SPD For Network / Data Line Surge Protector

CAT5e and CAT5 compatible

10/100 Base-T Ethernet protection

LAN, FDDI，CDDI, ATM

PDH, SDH, SPDH

Industrial control

Loss prevention system device; Security system; Security integration.

IASP; VSCS; ESA; ACS; exit-inlet control system; exit-inlet control system

Installation And Wiring Diagram Of SPD For Network / Data Line Surge Protector

Specification Of SPD For Network / Data Line Surge Protector

Model	D05J4	D05J4-8	D05J4-16			D05J4-24			D05J8H
Lightning projection zone(LPZ)	2
Standards Compliance	IEC61000, EN60950,GB/T18802.21-2002,TB/T2311-2002
According to IEC61643	III
According to DIN VDE6075 Part6(Draft 11.89) A1,A2	D
Max continuous operating voltage Uc	5V
Nominal discharge current (8/20µs) In	3KA
Max discharge current Imax (8/21µs) Imax	5KA
Voltage protection Level @C2(8/20µs) Up	≤55V
Voltage protection Level @C3(1kV/µs) Up	≤25V
Rated load current IL	200mA
Limiting Voltage(10/700µs)	≤20V
Cut-off Frequency fG	250MHz
Response time tA (L-N/N-PE)	1ns
Protection line	1/2,3/6							1/2,3/6,4/5,7/8
Protection port	1	8	16		24			1
Mounting	Be Installed between protected equipment and signal line
Adapt Transmission rate	100Mbps 1000Mbps
Transmission standards	100BaseT/ 1000BaseT/1000Base TX,CAT5/CAT6
Dimension	85(H)×25(W)×25(L)mm	190 (H)×85(W)×48(L)mm		482 (H)×86(W)×44(L)mm			83 (H)×25(W)×25(L)mm
Interface form	RJ45
IP code(IEC EN 60529)	IP20
Error rate	≤10-12
Material/color	Aluminum/Blue
Insertion loss	≤.3.0dB
Working conditions	Temperature: -40 to 85℃, Relative humidity: ≤95％

Techwin is a professional spd supplier in china.

Price

Price US$ \ 1 ~ 999 / Set

Packaging & Shipping

- Packingpaper box
- Delivery Lead Time15-30days
- Minimum Order 1 Set
- Supply Ability2000pcs per day
- Shipping Career

Product Image

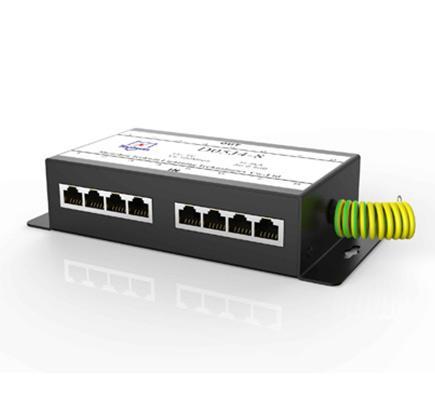

SPD for Network / Data Line Surge Protector
