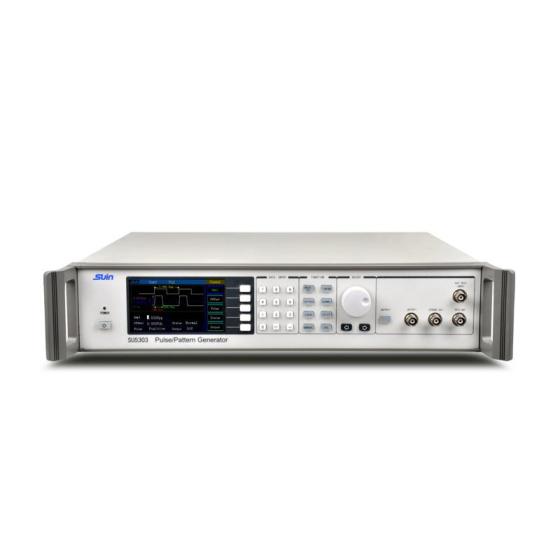

SU5000 Series Digital Pattern Generators Pulse Pattern Generators Digital Signal Generator
SUIN Digital Pattern Generators Features
* Direct Digital Synthesis Technology
* Crystal Oscillation Reference
* High Accurate Time and Frequency
* Count burst or single burst both can be selected
* Multiple output channels and EXT
* Trigger/Frequency Standard Input channels
* Data Storage and Recall
* Optional GPIB and USB interface
Specifiations
|
|
SU5101/5102 |
SU5202G |
SU5302 |
SU5303 |
|
Channel |
1/2 |
2 |
2 |
1 |
|
Waveform |
||||
|
Pulse |
Single/Dobule, Logic Positive /Negative, Positive/Negative Polary |
Single/Dobule, Logic Positive /Negative |
Logic Positive /Negative |
|
|
Edge Time |
≤10ns |
≤10ns |
8ns ~ 1ms |
8ns ~ 1ms |
|
Overshoot |
≤ 10% |
≤ 10% |
≤ 10% |
≤ 5% |
|
Time |
||||
|
Pulse Period |
20ns ~ 10000s (frequency range: 0.1mHz ~ 50MHz) |
|||
|
Time Interval |
5ns ~ 10000s |
8ns ~ 9999.5s |
||
|
Resolution |
5ns (Low range), 10μs (High range) |
0.1ns(typical) |
||
|
Interval Error |
± (T×5×10-5 + 5ns)(Low range), ±(T×5×10-5 + 10μs) (High range) |
±(T×5×10-5+5ns) |
||
|
Pattern
|
N/A |
Length:4095bits |
Length:16384bits |
|
|
Format:NRZ |
Format:NRZ, RZ |
|||
|
Rate:100mHz ~ 50MHz |
Rate:2mHz ~ 50MHz |
|||
|
Resolution: 0.1Hz |
|
|||
|
Amplitude Offset |
||||
|
Amplitude Range |
50mV ~ 10V (High Z) |
50mV ~ 5V (50Ω) |
50mV ~ 5V (50Ω) |
50mV ~ 5V (50Ω) |
|
Offset Range |
50mV ~ 10V (High Z) |
50mV ~ 5V (50Ω) |
50mV ~ 5V (50Ω) |
-5V~ 5V (50Ω) |
|
Output Impedance |
50Ω |
|||
|
TTL |
||||
|
TTL/COMS Level |
Low Level≤ 0.3V, High Level≥3.0V (high impedance load) |
|||
|
Output Impedance |
50Ω |
|||
|
Burst |
||||
|
Burst Count |
2 ~ 65000 cycles |
|||
|
Burst Mode |
Continuous, Signle |
|||
|
EXT. STD Input |
||||
|
Frequency |
10M mutiple |
|||
|
Amplitude |
0.5-5Vpp, AC coupling |
|||
|
Trigger |
||||
|
Trigger Mode |
Internal, External, Manual |
|||
|
Ext. Trigger Input |
Frequency: 1Hz ~ 10MHz (Square), Amplitude: 1Vpp ~ 20 Vpp |
|||
|
Input Impedance |
≥100kΩ |
|||
|
General Characteristics |
||||
|
Power |
AC110-240V, 50/60Hz,<80VA |
|||
|
Display |
VFD |
5.7' TFT LCD |
5.7' TFT LCD |
4.3' TFT LCD |
|
Optional Interface |
USB, GPIB |
RS232(Standard),GPIB |
RS-232 (Standard) |
RS232(Standard),GPIB |
|
Dimension & Weight |
254×103×384mm, Approx.3 kg |
330×155×300mm,Approx.4.2kg |
450×100×475mm, Approx.6.0 kg |
|
Standard Accessories
Power Cord:1pcs
Testing cable:1pcs
CD(Software+ User's Guide):1pcs
Options
Power Amplifier
