Product Attributes

- Brand Name SSA motor
- Model Number SW42 Series
- Place of Origin Korea
- Related Keywords Wrom geared motor, Automatic sliding Door, inner gate, DC Motor

Description by Manufacturer

SW42 Series (SW42)

Output: 25W ~ 40W (Approx)

Typical Applications

- Low-Cogging and high power

- Built-in Noise Filter

- Insulation level B

- Protection class IP50, higher class available on request.

- the standard version has leads(500mm)

- Motor shaft held by Ball bearing

- Motor, voltage, shaft spec and lead wire, etc. archangeable

on customers request

■ Specification (Motor only)

DATA / SPEC		SD42
Model		2524-43
Output	W	25
Rated Voltage	VDC	24
Rated Speed	rpm	3500
Rated Torque	Kgf.cm	0.8
Rated Current	A(Max)	2.0
Stall Torque	Kgf.cm(Min)	3.8
Stall Current	A	7.3
No Load Speed	rpm	4300
No Load Current	A(Max)	0.8
Cogging Torque	gf.cm	300
Run Duty	Hours	3000

- The data wrote according to the No Load 4300rpm

- When you place an order more than 1LOT/100ea, It is possible to produce by special type.

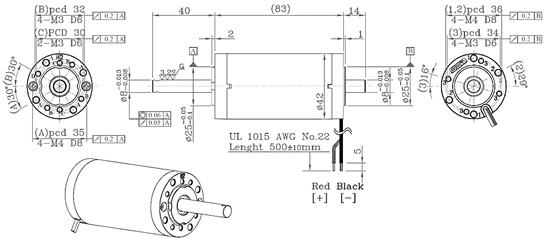

■ Dimensions
external_image

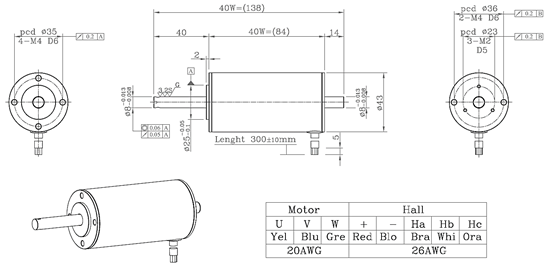

BLDC MOTOR(BLDC 40W)

■ Dimensions
external_image

SW42 WORM GEARBOX

■ Specification (Geared Motor)

DATA / SPEC		SW42 Series
Reduction Ratio	Module	M1			M0.7
	Ratio & Threads	1/10 [3’rd]	1/15 [2’rd]	1/30 [1’rd]	1/25 [2’rd]	1/50 [1’rd]
Efficiency	[%]	70	65	55	60	50
Continuous Load	[Kgf.cm]	50			40
Axial Load	[Kgf.cm]	150			100

external_image

■ Options

- The material of worm gear is available (acetal → brass) .

- It is available low noise gearbox (less than 50bB). Because gearbox is sealing inside for reduce noise.

(It changes just the grease. The structure is same before.)

- If you have any options and requests, Please contact to sales person

Packaging & Shipping

- Packing5 pcs per box
- Delivery Lead Time45 days after checking payment
- Supply Ability1000 pcs per Month
