Product Attributes

- Brand Name RONGXING
- Model Number XL
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Dark Blue
- Related Keywords aluminum casting services, aluminum casting supplies, aluminum casting silicon

Description by Manufacturer

Xl Star Flexible Coupling is made of engineering plastics as elastic elements, suitable for connecting two coaxial axis transmission shaft system, with compensation of two axis relative deflection, buffer, shock absorption performance, transfer torque of 20 ~ 35000N • Ni, working temperature -35 ~ +80°C.

Basic Parameters And Main Dimensions Of Xl Star Elastic Coupling mm

Model	Nominal Torque Tn N • m	Allowable speed r/mi n	Shaft hole diameter d, d2	Shaft hole length L	D	D,	D,	E	S	Inertia moment(kg. m2)	Weight(kg)
XL1	34	19000	6-19-24	25	40	32	40	16	2	0. 0008	0. 328
XL2	120	14000	8-24-28	30	55	40	55	18	2	0. 0003	0. 66
XL3	320	11800	10-28-38	35	65	48	65	20	2.5	0. 0007	1. 16
XL4	650	9500	12-38-45	45	so	66	78	24	3	0. 002	2. 27
XL5	900	8000	14-42-55	50	95	75	94	26	3	0. 005	3. 57
XL6	1050	7100	15-48-60	56	105	85	104	28	3.5	0. 008	4. 80
XL7	1250	6300	20-55-70	65	120	98	118	30	4	0.016	7. 37
XL8	1280	5600	22-65-75	75	135	115	134	35	4.5	0. 031	10. 89
XL9	2930	4750	30-75-90	85	160	135	158	40	5	0. 068	17. 73
XL10	7200	3750	40-90-100	100	200	160	180	45	5. 5	0. 159	29. 60
XLU	9900	3350	50-100-110	110	225	180	200	50	6	0. 277	41.0
XL12	12000	3000	60-110-125	120	255	200	230	55	6.5	0.51	58.6
XL13	15000	2650	60-125-145	140	290	230	265	60	7	1.0	88.4
XL14	22000	2360	60-140-165	155	320	255	300	65	7.5	1.7	120.6
XL15	30000	2000	80-160-190	175	370	290	345	75	9	3. 35	179. 1
XL16	35000	1800	85-180-220	195	420	325	400	85	10.5	6. 37	261.0
Note: 1. No. ※ is the maximum allowable shaft hole. 2, d,/d2, d,/d, d2/d2 can be any combination. 3. The size of countersunk hole should be calculated when using taper hole.

shrinkage factor for aluminum casting , shrinkage allowance in aluminum casting , strongest aluminum casting alloy , steel insert in aluminum casting , styrofoam aluminum casting , semi permanent mold aluminum casting , small aluminum casting , aluminum casting temperature

Company: Hebei Rongxing Driving Equipment Technology Co., Ltd.

Contact: Spark Wang

Tel: 86- 0311-69772900 86-0318-8966899

Phone / Whatsapp: 86-19932127135

WEB : http://www.rongxingcoupling.com

Address: North side of Planning 4th Road, Southern Industrial New Town, Jizhou District, Hengshui City, Hebei Province, China

Price

Price US$ \ 1 ~ 200 / Unit

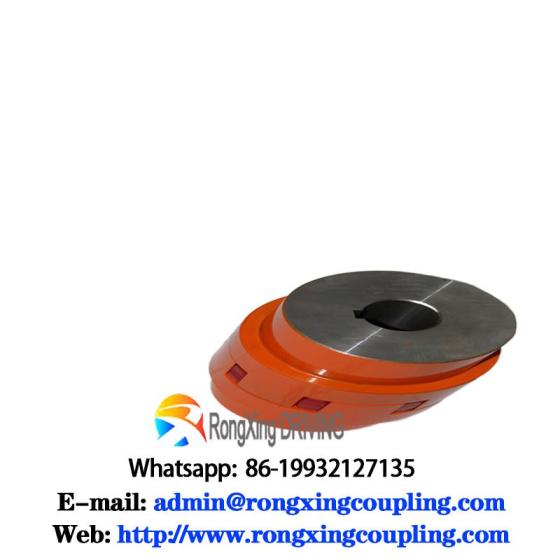

Product Image
