Product Attributes

- Brand Name SHPPM
- Model Number SFAWM-32A1/A2
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Flange Automatic Welding Machine, Auto flange-pipe welding machine

Description by Manufacturer

jameszhx(at)hotmail.com

Slip on Flange Automatic Welding Machine (FCAW/GMAW)
Model: SFAWM-32A1/A2

Performance features
Online-performance: Online equipment for the working of non production line
Application: Slip~on Flange for the welding line of the internal and external incidence angle
Welding Capacity: Excellent (250~350 inch/day, which is 4 times higher than the manual welding)
Operability: Very good (applicable and easy to operate even if you are a new user within a short period of time)
Surface Forming: Excellent (the welding gun will always be positioned in the optimum position)
Welding compliance rate: 98% min (without re-working for the skilled operator).
Driving Reliability: Good
Price: With multiple machine heads, its price is higher than the Piping Cantilever Automatic Welding Machine

Technical parameters
Pipe diameter applicable: DN100~800(φ114~810)
Pipe wall thickness applicable: 3~60MM
Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Welding line applicable: Welding line of flange-pipe Machine head system: One single machine head two welding guns at one side (for Type A1)/two machine head four welding guns at two sides (for Type A2).
Driving system: Driven the motor of active idler wheel frame
Clamping system: Nil
Bracket system: Two sets of active idler wheel frame are to be set and it is adjustable according to the pipe length along the track.
Counterweight System: Nil
Speed-regulation Mode: VF stepless speed control system
Adjustment Mode: Manual cross regulator
Swaying system: A product of our patented technology, driven by step motor and oscillating adjusting with digital display.
Control system: A product of our patented technology, PLC control.
Welding Mode: CO2 gas shielded arc welding
Welding Power: Our OEM products which are famous in China (or as per customers' demands)

Price

Price Condition FOB
Price US$ 50000 / Piece

Packaging & Shipping

- Packingnude
- Delivery Lead Time30DAYS
- Minimum Order 1 Piece
- Supply Ability50pcs
- Delivery Portshanghai
- Shipping Career

Product Image

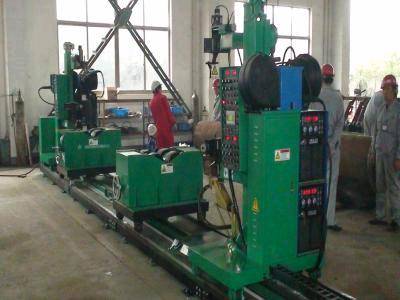

Slip on Flange Automatic Welding Machine (FCAW/GMAW)
