Spiral Spring Encoder Flexible Screw Shaft Connection Rubber Union Line Link Motor Machine Straight

Add to Basket Share to :

Price

US$ 1 ~ 200

Min Order Quantity1 Unit
Porttianjin
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Hebei Rongxing Driving Equipment Technology Co., Ltd.
Membership Free member
Registration Date2022.10.25
Country/RegionChina
CityHengshui
Contact Spark Wang(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Spark Wang

Hebei Rongxing Driving Equipment Technology Co., Ltd.

* Buying Product

Category : Couplings

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Rongxing
- Model Number GIICL
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Dark Blue
- Related Keywords machining cnc casting

Description by Manufacturer

GⅡCL Drum Gear Coupling Suitable for connecting two horizontal coaxial axis drive shaft system, with a certain Angle to compensate the relative offset performance of two shafts drum tooth coupling, working environment temperature -20 ~ +80C, transmission nominal torque is 0. 4-4500KN-m

GⅡCL Drum Gear Coupling Parameters And Dimensions mm

Type	Nominal Torque TnKN・m	Allowable Speed [n] r/min	Shaft Hole Diameter d	Shaft Hole Length LY J,	D	D,	d2	C	A	B,	Weight kg	Inertia Moment kg • m2
GHCL1	0.4	4000	16 -35	38 -82	103	71	50	8	36	76	5. 1	0. 0037
G1ICL2	0.71	4000	20 -45	44 -112	115	83	60	8	42	88	6.2	0. 0067
GIICL3	1. 12	4000	22 -56	44 -112	127	95	75	8	44	90	8.6	0.0113
GIICL4	1.8	4000	38 -65	60 -142	149	116	90	8	49	98	14.5	0. 0245
G1ICL5	3. 15	4000	40 -75	84 -142	167	134	105	10	55	108	19.6	0. 0433
GIICL6	5.0	4000	45 -90	84 -172	187	153	125	10	56	110	31.2	0. 0843
GIICL7	7. 1	3750	50 -105	84 -212	204	170	140	10	60	118	47.5	0. 151
GIICL8	10.0	3300	55 -115	84 -212	230	186	155	12	67	142	60.2	0. 241
GIICL9	16.0	3000	60 -135	107-252	256	212	180	12	69	146	95.8	0. 470
GII CLIO	22.4	2650	65 -150	107-252	287	239	200	14	78	164	119	0. 745
GIICL11	32.5	2350	70 -175	107-302	325	276	235	14	81	170	189	1.588
GIICL12	50.0	2100	75 -200	107-352	362	313	270	16	89	190	285	3. 055
GIICL13	71.0	1850	150-225	202-352	412	350	300	18	98	208	360	4.918
GIICL14	112	1650	170-250	242-410	462	420	335	22	172	296	544	9. 725
GIICL15	180	1500	190-285	282-470	512	470	380	22	182	316	786	17. 45
GIICL16	250	1300	220-320	282-470	580	522	430	28	198	354	1027	29. 1
GIICL17	355	1200	250-365	330-550	644	582	490	28	209	364	1532	53. 725
GIICL18	500	1050	280-400	380-650	726	658	540	28	222	430	2278	99.5
GIICL19	710	950	300-370	380-650	818	748	630	32	232	440	3026	175.5
GIICL20	1000	800	360-540	450-800	928	838	720	32	247	470	4430	360. 75
GIICL21	1400	750	400-600	540-800	1022	928	810	40	255	490	6152	561.5
GIICL22	1800	650	450-680	540-900	1134	1036	915	40	262	510	7738	904. 75
GIICL23	2500	600	530-770	680-900	1282	1178	1030	50	299	580	11553	1725
GIICL24	3550	550	560-850	680-1000	1428	1322	1175	50	317	610	16615	3131.75
GIICL25	4500	460	670-1040	780-1100	1644	1538	1390	50	325	620	27797	7198. 25
Note: 1. The weight and moment of inertia of the coupling are calculated according to the type J hole.2. It is recommended to choose the length of J-shaped hole.3. Nitriding and surface quenching shall be agreed in the contract.

cnc casting reviews , cnc vs casting , cnc die casting , cnc vs die casting , cnc resin casting , cnc metal casting , sdpc cnc ls3/l92 (0821 casting) , cnc die casting machine , casting and machining process , diy casting call , cnc machine bed casting

Company: Hebei Rongxing Driving Equipment Technology Co., Ltd.

Contact: Spark Wang

Tel: 86- 0311-69772900 86-0318-8966899

Phone / Whatsapp: 86-19932127135

WEB : http://www.rongxingcoupling.com

Address: North side of Planning 4th Road, Southern Industrial New Town, Jizhou District,

Hengshui City, Hebei Province, China

Price

Price US$ \ 1 ~ 200 / Unit

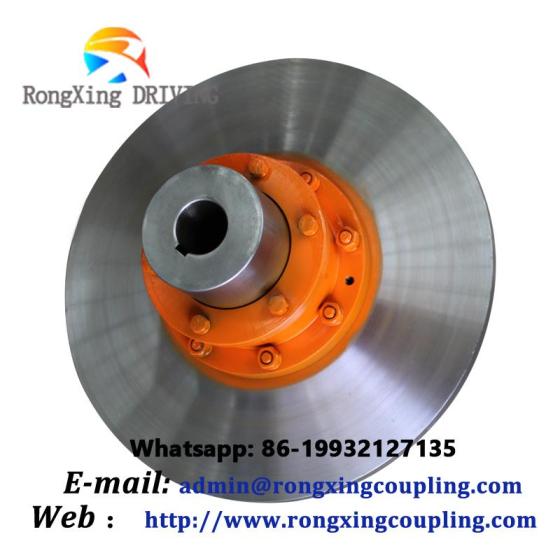

Product Image

Spiral Spring Encoder Flexible Screw Shaft Connection Rubber Union Line Link Motor Machine Straight

Machining Cnc Casting Related Products

Special Unique Design Size CNC Machine Double Diaphragm Clamp Type Torque Shaft Sensor Encoder

Main Export Markets

- Hebei Rongxing Driving Equipment Technology Co., Ltd. is mainly exporting to Asia

Company Profile

About Hebei Rongxing Driving Equipment Technology Co., Ltd.

Membership Free member
Registration Date2022.10.25
Country/RegionChina
CityHengshui
Contact Spark Wang(Mr.)

Hebei Rongxing Driving Equipment Technology Co., Ltd. is a professional R&D and manufacturer of couplings, cardan shafts and gearboxes with a registered capital of 36.88 million. The company covers an area of 55 acres, with a production workshop of 12,000 square meters and 108 production equipment. With strong strength, advanced technological process and more than 20 years of manufacturing experience, the company has passed ISO9001 quality management system certification. It was recognized as a high-tech enterprise by Hebei Province Industry and Information Technology. It is a member unit of transmission connecting parts of China Machinery General Parts Industry Association, and has eight utility model patent certificates.

The company's leading products mainly include elastic couplings, rigid couplings and other dozens of series of couplings with thousands of specifications, which are widely used in metallurgy, mining, cement, paper, electric power, chemical industry, wind power, petroleum, port machinery, etc. industry. It has provided strong technical and equipment support for the import and localization of couplings of many domestic steel mills, and has won unanimous praise from the majority of users.
