T-Rex 4 Axis Tool Grinding Machine
A 4-axis tool grinding machine is a specialized machine tool designed for the precise grinding of cutting tools, drills, reamers, end mills, and other rotary cutting tools. The “4-axis” in the name refers to the number of independent movement axes that the machine has, which allows for complex and precise grinding operations.
The main advantages of a 4-axis tool grinding machine include:
- Precision and Finish: The multiple axes allow for precise control over the grinding process, resulting in high-quality finishes and accurate dimensions on the cutting tools.
- Flexibility: The machine can handle a variety of tool types and geometries, making it suitable for grinding a wide range of cutting tools.
- Automation: With the right controls and programming, a 4-axis machine can be automated to increase production rates and reduce manual intervention.
- Safety: Automated grinding processes reduce the risk of injury associated with manual grinding operations.
4-axis tool grinding machines are commonly used in the tool and die industry, as well as in manufacturing facilities that require precision-ground cutting tools. They are often used for batch production or for manufacturing high-quality tools that require a high level of precision and finish.
For the most current information and advancements in 4-axis tool grinding machines, it is recommended to consult the latest resources from machine tool manufacturers or industry professionals.

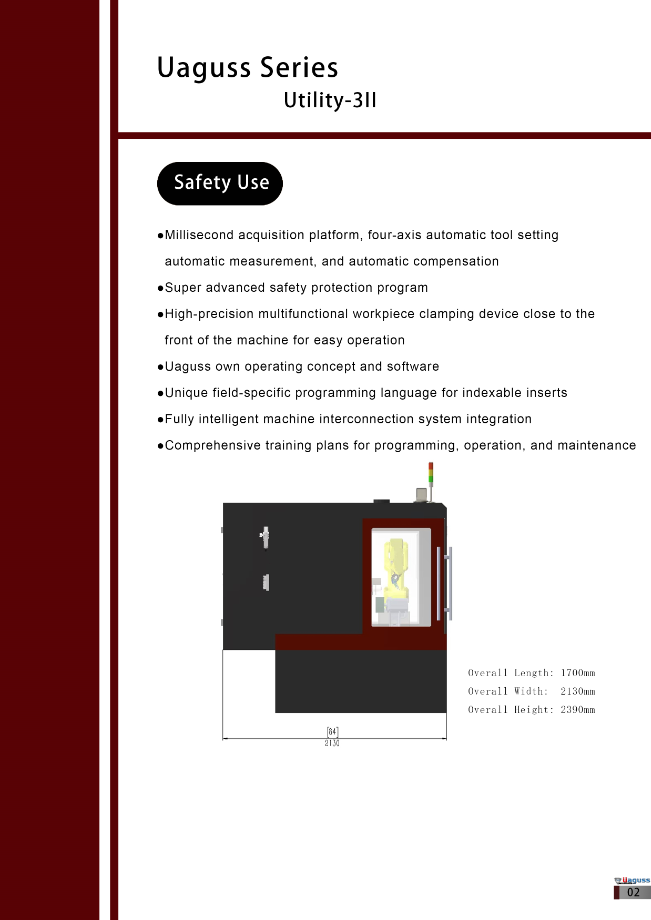

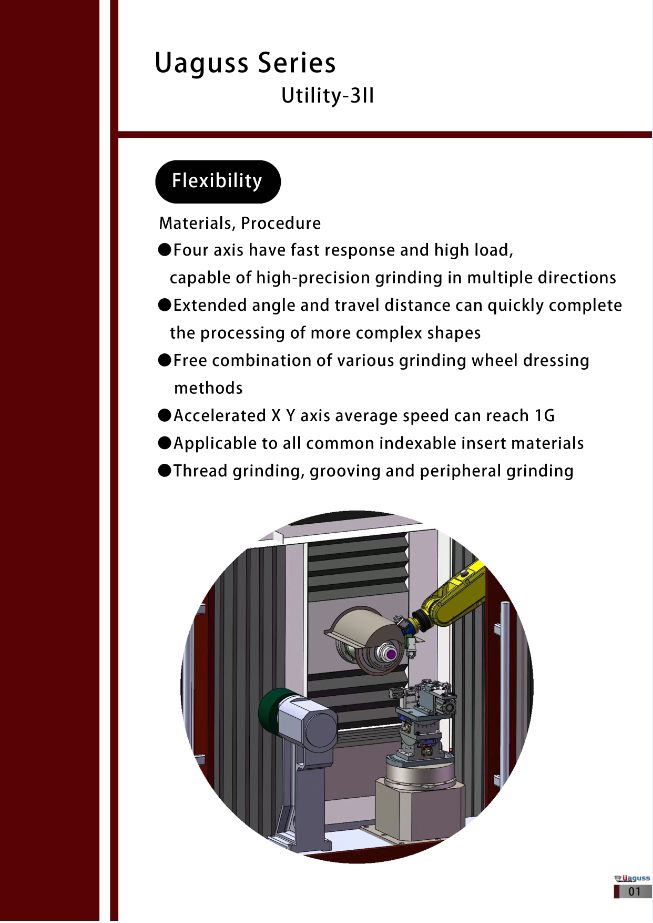

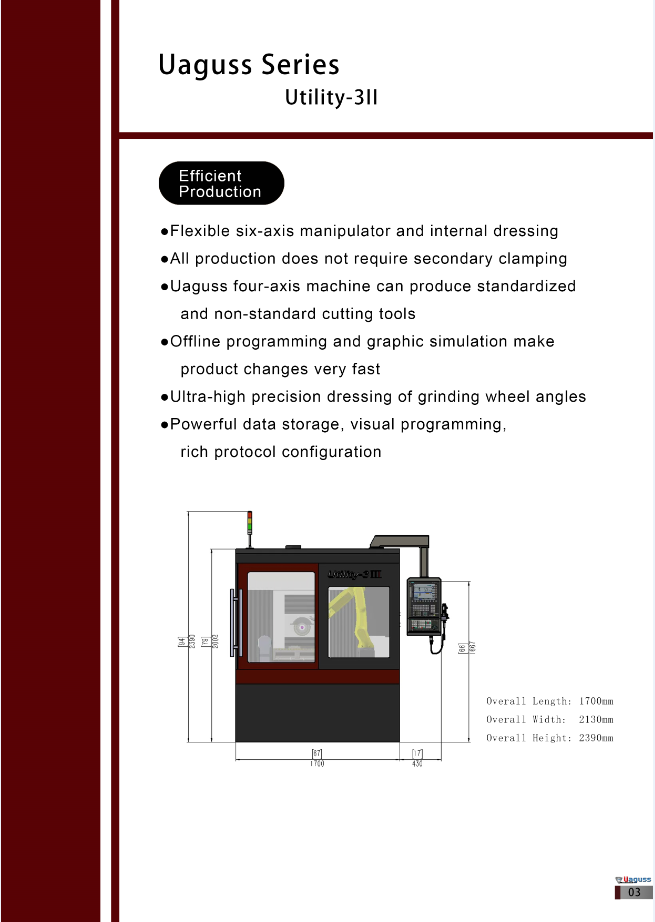

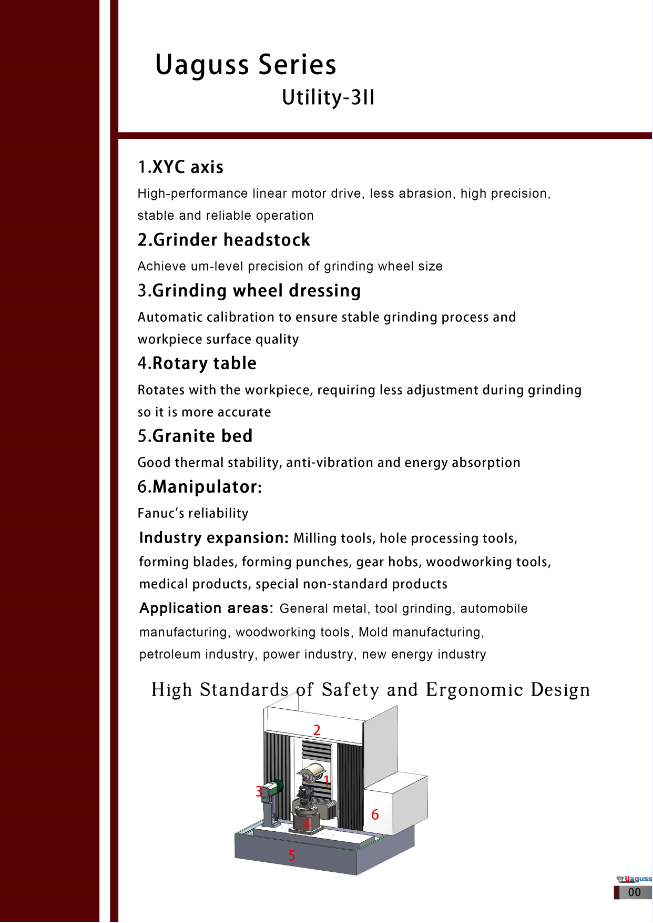

4 Axis Tool Grinder Machine Uaguss is a cutting-edge machine designed for precision grinding, sharpening, and reconditioning of cutting tools used in various industries such as automotive, aerospace, and manufacturing. This innovative tool grinder is equipped with four axes that allow it to perform complex machining operations with high accuracy and efficiency.
One of the key features of the 4 Axis Tool Grinder is its advanced control system, which enables users to program and control the grinding process with ease. The machine is also equipped with a high-speed spindle that can rotate at high speeds, resulting in fast and precise grinding of cutting tools. Additionally, the tool grinder comes with a variety of grinding wheels and tool holders, allowing users to grind a wide range of cutting tools with different shapes and sizes.
The 4 Axis Tool Grinder is ideal for sharpening and reconditioning cutting tools such as end mills, drills, reamers, and burrs. By using this machine, users can restore the sharpness and performance of their cutting tools, increasing their productivity and reducing tool wear. The grinder is also suitable for creating custom tool profiles and geometries, enabling users to meet specific machining requirements and achieve optimal results in their production processes.
One of the main applications of the 4 Axis Tool Grinder is in the automotive industry, where precision cutting tools are essential for machining engine components, chassis parts, and other automotive parts. With this machine, automotive manufacturers can ensure the accuracy and quality of their cutting tools, leading to improved efficiency and reduced production costs. The tool grinder is also widely used in the aerospace industry, where high-precision cutting tools are necessary for manufacturing aircraft components and structures.
In addition to automotive and aerospace applications, the 4 Axis Tool Grinder is also used in the manufacturing industry for sharpening and reconditioning cutting tools used in machining processes such as milling, drilling, and turning. By investing in this machine, manufacturers can extend the lifespan of their cutting tools, reduce tooling costs, and improve the overall quality of their machined parts. The tool grinder is also suitable for small machine shops and toolrooms that require a versatile and reliable machine for tool grinding operations.
Overall, the 4 Axis Tool Grinder is a versatile and efficient machine that is essential for any industry that relies on precision cutting tools. With its advanced features, high-speed spindle, and user-friendly control system, this tool grinder is capable of meeting the most demanding grinding requirements and ensuring the quality and performance of cutting tools. Whether used in automotive, aerospace, or manufacturing applications, the 4 Axis Tool Grinder is a valuable tool that can significantly improve machining processes and boost productivity.

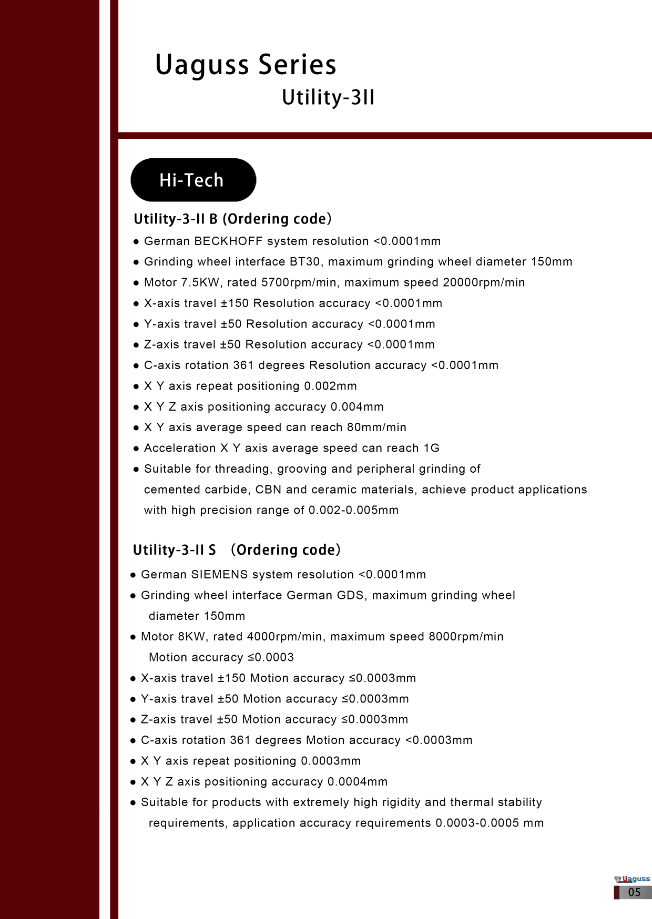

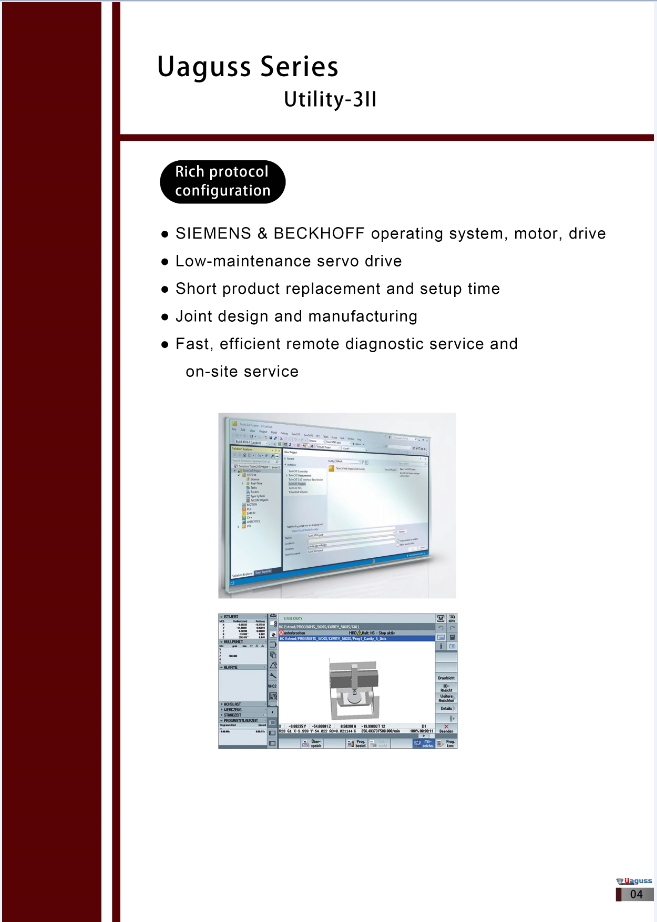

German BECKHOFF system resolution <0.0001mm
Grinding wheel interface BT30, maximum grinding wheel diameter 150mm
Motor 7.5KW,rated 5700rpm/min, maximum speed 20000rpm/min
X-axis travel +150 Resolution accuracy <0.0001mm
Yaxis travel +50 Resolution accuracy <0.0001mm
Z-axis travel +50 Resolution accuracy <0,0001mm
C-axis rotation 361 degrees Resolution accuracy <0.0001mm
XY axis repeat positioning 0.002mm
X YZ axis positioning accuracy 0.004mm
XY axis average speed can reach 80mm/min
Acceleration XYaxis average speed can reach 1G
Suitable for threading, grooving and peripheral grinding ofcemented carbide, CBN and ceramic materials, achieve product applications with high precision range of 0.002-0.005mm
German SlEMENS system resolution <0.0001mm
Grinding wheel interface German GDS, maximum grinding wheeldiameter 150mm
Motor 8KW, rated 4000rpm'min,maximum speed 8000rpm/min
Motion accuracy ≤0.0003
X-axis travel +150 Motion accuracy s0.0003mm
Y-axis travel +50 Motion accuracy s0.0003mm
Z-axis travel +50 Motion accuracy s0.0003mm
C-axis rotation 361 degrees
Motion accuracy <0.0003mm
X Y axis repeat positioning 0.0003mm
X Y Z axis positioning accuracy 0.0004mmSuitable for products with extremely high rigidity and thermal stabilityrequirements,application accuracy requirements 0.0003-0.0005 mm
Https://www.t-rexmachine.com
