Product Descriptions

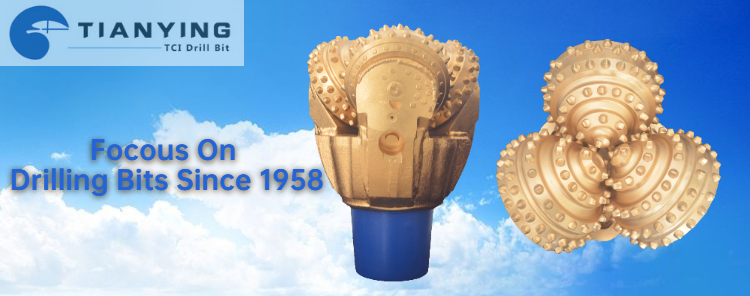

Tricone bit is an ideal solution for soft, medium, or hard rock formations, it is connected with the drill stem and rotates along with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air. Tricone bits come in several different varieties, and can deal with a wide range of different rock formations. It is important to know the type of formation you are drilling in when selecting a drill bit.
HOW TO READ AN IADC CODE PROPERLY?
| First Digit | TOOTH |
| 1 | Steel tooth bits for Soft Formation |
| 2 | Steel tooth bits for Medium Formation |
| 3 | Steel tooth bits for Hard Formation |
| 4 | TUNGSTEN CARBIDE INSERT BITS
For varying formation hardness with 4 being the softest and 8 the hardest. |
| 5 |
| 6 |
| 7 |
| 8 |
| Second Digit | FORMATION |
| 1 | 1,2,3 and 4 are further breakdown of formation with 1 being the softest and 4 the hardest. |
| 2 |
| 3 |
| 4 |
| Third Digit | BEARING/SEAL TYPE |
| 1 | Standard open bearing roller bit |
| 2 | Standard open bearing roller bit, air-cooled |
| 3 | Standard open bearing roller bit with gauge protection |
| 4 | Sealed roller bearing bit |
| 5 | Sealed roller bearing bit with gauge protection |
| 6 | Journal sealed bearing bit |
| 7 | Journal sealed bearing bit with gauge protection |
| Fourth Digit | ADDITIONAL FEATURES |
| A | Air application |
| R | Reinforced welds |
| C | Center jet |
| S | Standard steel tooth |
| D | Deviation control |
| X | Chisel insert |
| E | Extended jet |
| Y | Conical Insert |
| G | Extra gage protection |
| Z | Other insert shape |
| J | Jet Deflection |
Parameter Selection
Types which are not shown in the table can be designed and manufactured according to customer's requirements.
| IADC | Weight on Bit per Inch of Bit Diameter(lb/In) | Rotary Speed (r/min) | Cutting Structure | Applications |
| 412/415 | 1000-2000 | 90-120 | Conical on gage and inner rows | Designed for very soft formations with low compressive strength and high friablity such as shale, soft limestone, sandstone, gravel clay, soft dolimite, coal. |
| 432/435 | 1000-4000 | 90-120 | Conical/Chisel on gage, Conical inner rows | Designed for very soft formations with low compressive strength and high friablity such as shale, soft limestone, sandstone, gravel clay, soft dolimite, coal. |
| 532/535 | 2000-5000 | 80-110 | Conical/Chisel on gage, Conical inner rows | Designed for soft formations with low compressive strength and high friablity such as shale, soft limestone, sandstone, interbedded dolomite. |
| 612/615 | 3000-5000 | 60-100 | Conical/Spherical on gage, Conical inner rows | Designed for high compressive strength, medium hard and abrasive formations, such as limestone, sandstone, interbedded dolomite. |
| 632/635 | 3000-6000 | 60-100 | Conical/Spherical on gage, Conical inner rows | Designed for high compressive strength, mudium hard and abrasive formations, such as limestone, sandstone, interbedded, dolomite. |
| 732/735 | 4000-7000 | 60-90 | Spherical on gage, Conical/Double spherical on inner rows | Designed for high compressive strength, hard and abrasive formations, such as granite, limestone, sandstone, dolomite. |
| 832/835 | 5000-8000 | 50-80 | Spherical on gage, Double spherical on inner rows | Designed for high compressive strength, hard and abrasive formations, such as magnetite quartzite, quartzite, granite. |
Application
Our drill bits are widely used in mining, oil, gas, water well drilling, HDD, quarrying and construction.
Company Information
Hunan TianYing Drilling Machine Manufacturing Co., Ltd. was founded in 1958, located at Zhuzhou, China, the word famous tungsten Carbide production base. We are a professional producer, and supplier of Rock Drilling Bits, all the bits crafted from the finest material available in today's market.TCI(Tungsten Carbide Insert) types are our main products, available in many sizes, designed for soft to very hard formations. With years of study and refining, our Rock Drilling Bits are preceded by extensive R&D, field tested, and backed by our unmatched commitment to service and support, our products exported to all over the world, such as Australia, North America, Middle East, North Africa and Southeast Asia etc. Today, Tianying's products have been favored and respected by domestic and foreign customers. We will continue to serve our customers with high quality products, excellent service and reasonable price.
All of our bits are manufactured according to strict standards, set forth by the American Petroleum Institute (API).
And classified according to characteristics set forth by the International Association of Drilling Contractors (IADC).
FAQ
1 Q: Are you manufacture?
A: Yes, we are professional manufacturer for drill bits since 1958.
2 Q: Where are you located in?
A: We are located in Zhuzhou City Hunan China
3 Q:What's your mainly product?
A: Our mainly products are tricone bit, button bits, DTH bits, PDC bits etc.
4 Q: What's your MOQ?
A: Our MOQ 1 piece, and also supply sample for your trial.
5 Q: How many day with your delivery?
A: We can delivery goods with 7 days if we have goods in stock, if need produce with your demand we will negotionation with you.
