TCP IP Wireless RS232 & Mini USB Interface 4g Lte M2m Modem for Remote Meter Reading Use in Industry

Add to Basket Share to :

Min Order Quantity1 Piece
Supply Ability1000pcs per week
Portshenzhen
Delivery Lead Time7 days for ready goods
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Bailingjia Technology Co. LTD
Membership Free member
Registration Date2019.03.30
Country/RegionChina
CityShenzhen
Contact Lily li (Ms.)

Report Item

Your report on Product(s), Selling Lead(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Lily li

Shenzhen Bailingjia Technology Co. LTD

* Buying Product

Category : Wireless Networking Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name BL
- Model Number EC25/7600
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Interface Type: RS-232
- Transmission Rate: 150Mbps
- data speed LTE LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL)
- Model Number Quectel EC25A/E/AU/G 4G Modem
- internet service: TCP/UDP/FTP/HTTP/SMTP/POP3/SNMP/SSL
- Control via AT Commands 3GPP TS27.007 and enhanced AT Commands
- Warranty 1year
- Related Keywords 4g Lte M2m Modem, industry modem

Description by Manufacturer

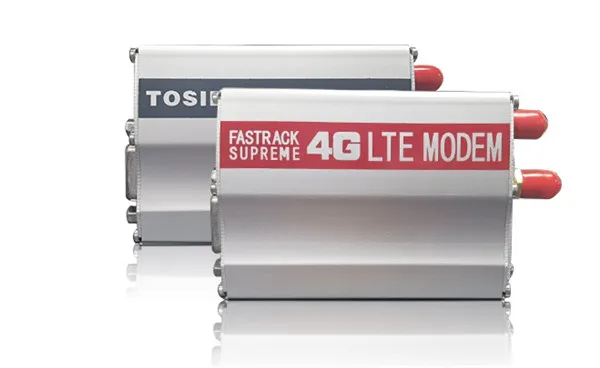

TCP IP M2M Cat 4 4G RS232 Modem With Quectel EC25A/E/AU/G GSM GPRS modem

BAILING Supreme 20_4G LTE_MODEMS EC25x

TCP IP Wireless RS232 & mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry

BAILING Supreme 20_4G LTE_MODEMS EC25x -series of modems are well known and used widely wherever a cellular solution is required.
The new Smart BAILING Supreme 20_4G LTE_MODEMS EC25x - category 1 modem is physically and electrically compatible to the 3G and 2G
versions, making swap outs in the field easy. Importantly the new 4G modem comes with the BAILING Smart Stack as standard which
will allow you to make full use of your preferred mobile network irrespective of the capability of your remote device.
Housed in a strong and lightweight Aluminum case and with full Industrial Grade components, is ideal for all Industrial remote
data applications including:

Remote Meter Reading / Smart Metering
Fleet Management
Security
Signage
Irrigation and other control applications.

Main features:
Module: Quectel	Quectel 4G EC-25A4G
frequency band:	EC25-E FDD LTE: B1/B3/B5/B7/B8/B20 2100/1800/850/2600/900/800MHZ TDD LTE: B38/B40/B41 2600/2300/2500MHZ WCDMA: B1/B5/B8 2100/850/900MHZ GSM:B3/B8 900/1800
	EC25-A FDD LTE: B2/B4/B12 1900/1700/700MHZ WCDMA: B2/B4/B5 1900/1700/850MHZ
	EC25-AU FDD LTE: B1/B3/B4/B5/B7/B8/B28 2100/1800/1700/850/2600/900/700MHZ TDD LTE: B40 2300MHZ WCDMA: B1/B2/B5/B8 2100/1900/850/900MHZ GSM:B2/B3/B5/B8 1900/1800/850/900MHZ
	EC25-J LTE: B1/B3/B8/B18/B18/B19/B26 2100/1800/900/850/800/850 MHZ TDD LTE: B41 2500MHZ WCDMA: B1/B6/B19 2100/850/800MHZ GSM:B3/B8 900/1800
	EC25-V FDD LET:B4/B13 1700/700MHZ
Specifications	LTE LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL) LTE-TDD Max 130Mbps (DL) Max 35Mbps (UL) DC-HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL) UMTS Max 384Kbps (DL) Max 384Kbps (UL) TD-SCDMA Max 4.2Mbps (DL) Max 2.2Mbps (UL) EDGE Max 236.8Kbps (DL) Max 236.8Kbps (UL) GPRS Max 85.6Kbps (DL) Max 85.6Kbps (UL) HR, FR, EFR, AMR, AMR-WB coding schemes SMS mobile Terminate/Originate BAILING’s Smart Stack.
Feature	LTE Version 3GPP E-UTRA Release 10 Bandwidth 1.4/3/5/10/15/20MHz Standard 3GPP AT commands TS 27.007 Output power: C LTE and Class 3 UMTS. Input voltage: 5V to 32V Current consumption (TBC): Standby: 30mA 12V Average in Use (3G): 250mA 12V Average in Use (4G): 205mA 12V Support 3V/1V8 U-SIM card Dimension: 74mm x 55mm x 24mm Weight: 100g approx. Operating temperature: -30C° to +85C° RoHS compliant Data

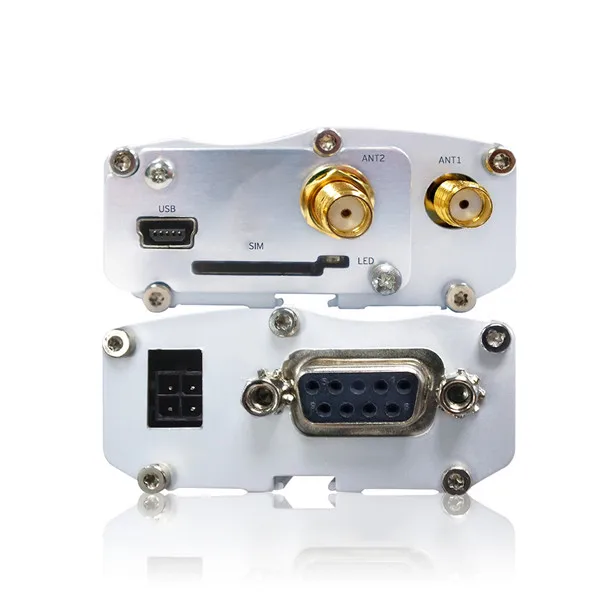

Further Features:	Serial Interface Physical: Strong lightweight Aluminum case Serial RS232 and power through DC RF connector: 2 x SMA male Small size: 66mm x 52mm x 24mm/18mm Weight: approx. 40 grams Power in: 5Vdc to 32Vdc UDP/TCP stack: BAILING Smart Stack Temperature range: -30C to +85C Sim holder accepts standard 3V/1.8V mini sim Single mode LTE operation LTE FDD bandwidth 1.4-20MHz System release 3GPP Rel 11 4G Cat 4 up to 150Mbps downlink, 50Mbps uplink 3G HSPA+ up to 42Mbps downlink, 5.76Mbps uplink SMS mobile Terminate/Originate FOTA and DOTA functions supported
Protocols	TCP/UDP/PPP/FTP/HTTP/SMTP/MMS/NTP/ PING/DTMF/FILE/CMUX*/QMI

Packaging & Shipping

- Packingneutral packing
- Packaging Size640 x 45 x 60 ( Millimeters)
- Package Weight 1.5 ( Kilograms )
- Delivery Lead Time7 days for ready goods
- Minimum Order 1 Piece
- Supply Ability1000pcs per week
- Total quantity in Stock501 – 700
- Delivery Portshenzhen
- Shipping Career

Product Image

TCP IP Wireless RS232 & Mini USB Interface 4g Lte M2m Modem for Remote Meter Reading Use in Industry
