TM3000 Automation high gloss laminating machine
Function
This machine is a fully automatic vacuum coating equipment, which can be used for surface finishing of various kinds of high-grade PVC, imitation wood, stone grain, leather, etc.
The machine is highly automatic and easy to operate. The work table is fully automatic in and out of the warehouse.The processing time, processing temperature and vacuum in the warehouse are automatically controlled by digital display, thus ensuring product quality and improving production efficiency.
In addition to the excellent characteristics of the domestic general laminating machine, the machine also has the function of making high-gloss PVC. The heating system adopts aluminum plate heating and high heat conduction efficiency, so as to improve product yield.
This function is a high performance laminating machine developed by our technical staff based on the characteristics of PVC film, which solves the problem that the common positive and negative pressure high-light modeling cannot be done properly at one time and cannot be repaired.This machine adopts special process heating and large table processing, which greatly improves production efficiency and saves cost.The transmission series adopts the chain transmission, and the moving table adopts the two-level deceleration to prevent the workpiece from being out of place and resulting in product waste.The computer system USES imported electric appliances with stable performance and is equipped with two operating procedures of automatic hand, so the braking degree is high.This machine is the largest table surface laminating machine in Asia.
Technical parameter
| Dimensions | 10500mm x2100mm x2000mm |
| B ed dimension | 3000mm x1150(1300)mm x 55mm |
| Maximum machining height | 60mm |
| Maximum working area | 3000 x1150(1300)mm |
| Total power | 45KW |
| Actual power consumption | 10KW |
| Total weight | 4T |
| vacuum degree | ≤-0.095Mpa |

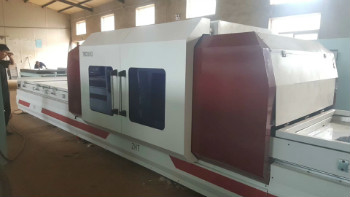

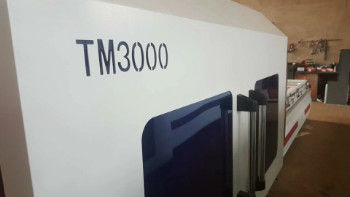

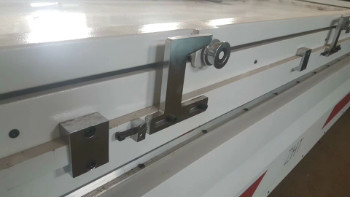

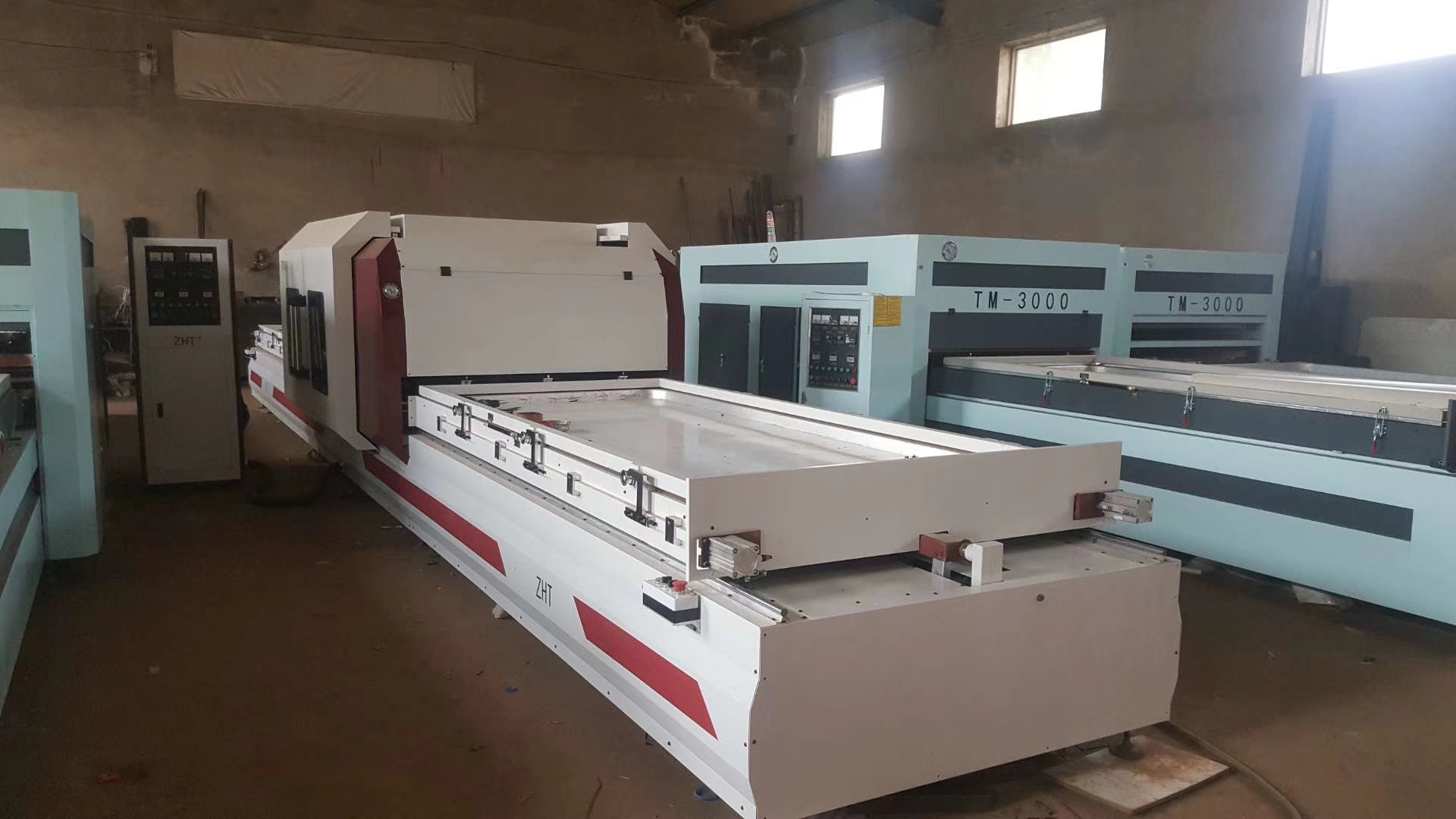

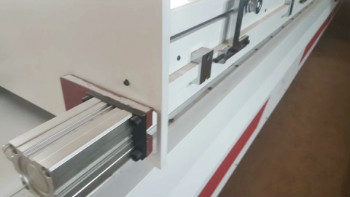

Part of display
Electrical component list
List of main disc components (main panel length 1250mm, width 500mm) |
No | Name | Model | Quantity (unit) | Manufacturer |
1 | residual current operated circuit breaker | DZ15LE-1004901 | 1 | Chint |
2 | Current Transformer | BH-0.66 | 3 | Chint |
3 | low voltage fuse base(insurance) 6A fuse link | RT18-32 R015 | 5 5 | Chint |
4 | Control Transformer | BK-50VA(380-220V) | 1 | Chint |
5 | phase-phase sequence protection relay | XJ3-G | 1 | Chint |
6 | plug-in relay (single open and single closed) Base socket | RXM2LB2P7 RXMZEM2C | 13 13 | Schneider |
7 | plastic case circuit breaker | DZ108-20(5-8A) DZ108-20(5-3.2A) | 1 1 | Chint |
8 | miniature circuit breaker | DZ47-60 | 4 | Chint |
9 | 0910 Series AC Contactor | LC|E0910M5N | 3 | Schneider |
10 | 2510 Series AC Contactor | LC|E2510M5N | 5 | Schneider |
11 | 24V power supply | S-100-24 | 1 | Chint |
12 | PLC host | VBO-32MR | 1 | Vigor |
13 | PLC expansion slot | VB-8YR | 1 | Vigor |
14 | PLC display | HITECH | 1 | Schneider |
15 | E310 Series Inverter | E318-402-H3 | 1 | Vigor |
16 | terminal block terminal block | TD-20A TB-4504 | 71 10 | Chint |
17 | trunking | 500mm 890mm | 2 4 | Chint |
List of panel components (length 450mm, width 385mm) |
1 | Thermostat | HMT7 | 4 | TaiWan |
2 | voltmeter | 82L1型 | 1 | Chint |
3 | ammeter | 85L1型 | 3 | Chint |
4 | green button | XB2-BA35 | 1 | Schneider |
5 | red button | XB2-BD25 | 1 | Schneider |
6 | single open button (single file) | XB2-BD25 | 6 | Schneider |
7 | Emergency stop | XB2-BS545 | 1 | Schneider |
How it works
This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine
v Preheating equipment
v Put product on the workbench
v Pull the PVC membrane and cover cabinet door
v Cutting membrane
v Enter the machine
v The membrane floating up and heating
v Vacuum plus negative pressure
v Release of negative pressure
v Unloading hydraulic
v Drop workbench
v Workbench out
v Cut membrane
v Work end
This process is done automatically by one click
Silicone plate life
The silicone plate is imported from Korea and can be used for 3-4 months (about 1000 hours) and can be repaired. (This accessory is not covered by the warranty)
Tool List
Tool List |
Name | Unit | Quantity |
1. spanner12×14 | bundle | 1 |
2. Hexagon spanner | set | 1 |
3. Phillips screwdriver | bundle | 1 |
4. slot type screwdriver | bundle | 1 |
5. pvc bracket | set | 2 |
6. pvc branch | stick | 2 |
7. fuse | stick | 2 |
8. spanner17×19 | bundle | 1 |
9. O-ring | pcs | 5 |
10.compound gasket | pcs | 5 |
11. Limit switch | pcs | 1pcs entry table 1pcs workbench out |
12. ScrewsM8*30 | pcs | 12 |
13. Nuts M8*30 | pcs | 12 |
14. ScrewsM6*30 | pcs | 10 |
15. Nuts M6*30 | pcs | 10 |
Quality and Service are most important things for us
If you have any problem,please let us know
