TUV Wire Tinned Copper PV Photovoltaic EN50618 H1Z2Z2-K 1x10mm2 Solar Cable

Add to Basket Share to :

Price

US$ 1.1

Min Order Quantity500 Meter
Supply Ability60,000meter per day
PortNingbo
Delivery Lead Time7days
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Zhejiang Pntech Technology Co.. Ltd.
Membership Free member
Registration Date2017.05.25
Country/RegionChina
CityNingbo
Contact Rainbow Young(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Rainbow Young

Zhejiang Pntech Technology Co.. Ltd.

* Buying Product

Category : Power Cables

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name pntech
- Model Number H1Z2Z2-K 1x10mm2
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Blackorred
- Application Power Station
- Conductor Material Tinned copper
- Insulation Material XLPO
- Jacket XLPO
- Type High Voltage
- Related Keywords solar cable 10mm2, solar cable, Wire 10mm2, EN50618 solar cable

Description by Manufacturer

TUV Wire Tinned Copper PV Photovoltaic EN50618 H1Z2Z2-K 1x10mm2 Solar Cable

Solar cable PV1-F 10mm dc cable

High quality PV1-F 10mm dc cable

Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.

2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.

3)They operate at DC voltage and provide long life in exposed conditions.

Product Details

Components & Mechanical Data.

Cross Section mm2	Insulation Mediun Thickness(mm)	Sheath Mediun Thickness(mm)	Electric res. At 20℃ ≤ Ω/km	Testing Voltage A.C.kv/5min
1x1.5	0.7	0.8	13.5	6.5
1x2.5	0.7	0.8	8.21	6.5
1x4	0.7	0.8	5.09	6.5
1x6	0.7	0.8	3.39	6.5
1x10	0.7	0.8	1.95	6.5
1x16	0.7	0.8	1.24	6.5

Product Parameters

Electrical Date.

3, stable product quality , supply, the good faith management

Solar cable Modle no.	PV1-F 1x10mm2
TConductor Material	Tinned copper
Conductor construction	80/0.4mm
Insulation material	XLPE
Insulation Diameter	5.6±0.15 mm
Insulation Thickness	0.7±0.10 mm
Jacket material	XLPE
Approx Outer Diameter	9mm
Approx Cable Weight	155kg/km
Cable Color	Black / Red

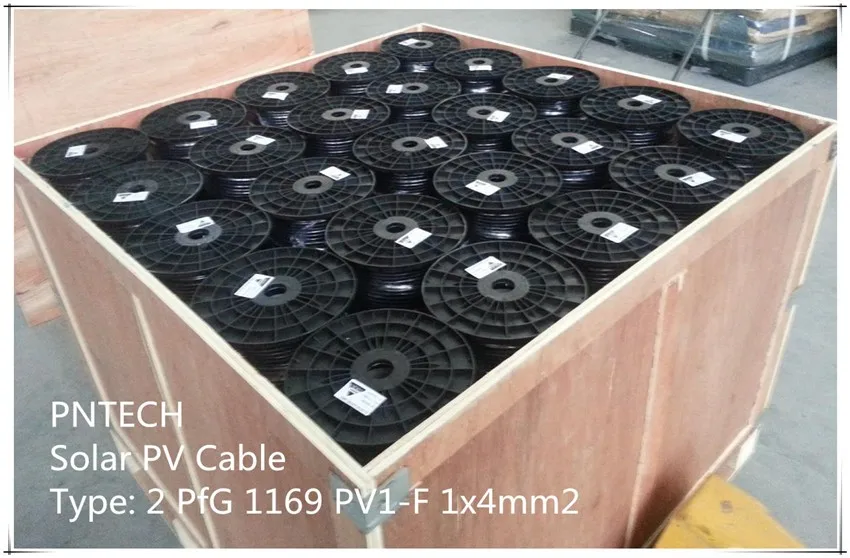

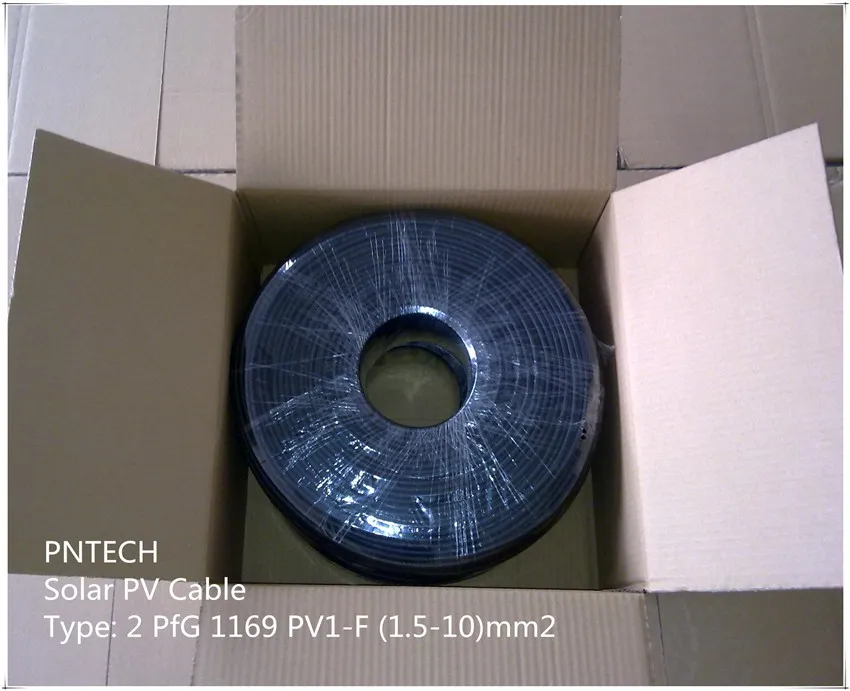

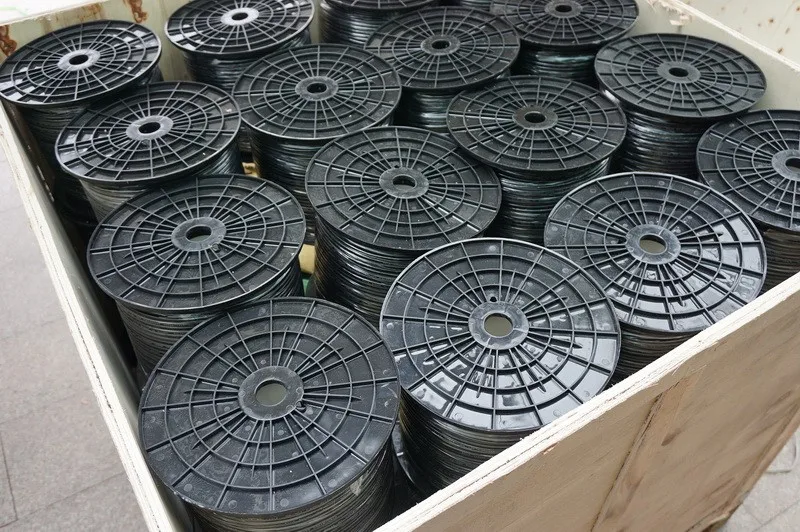

Product Packing Show

Why Choose Us

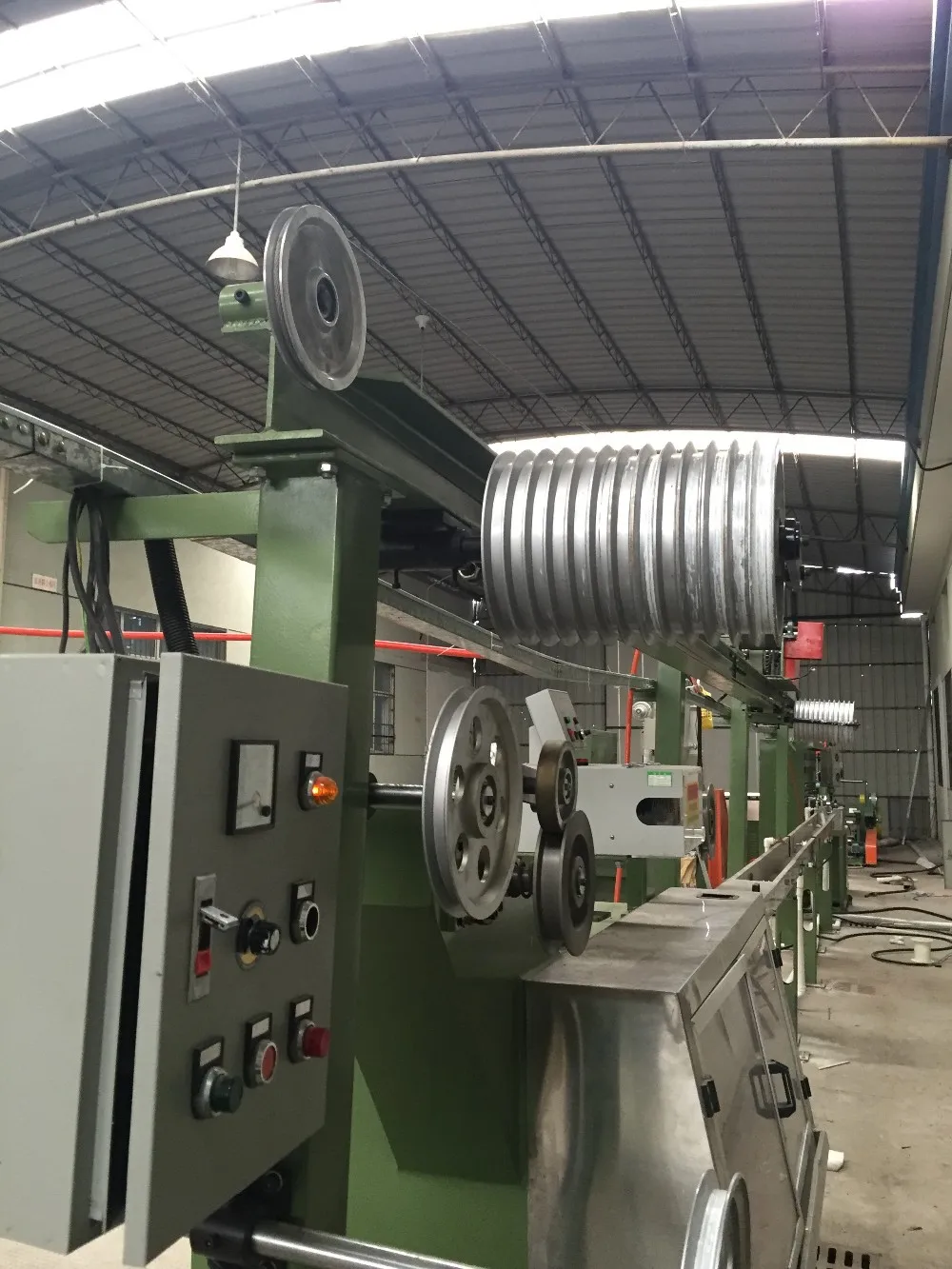

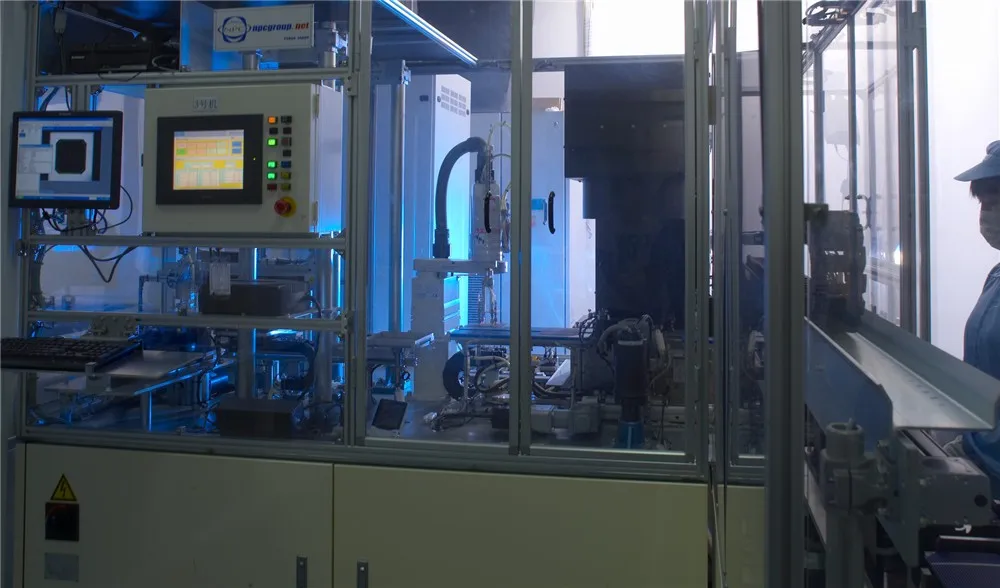

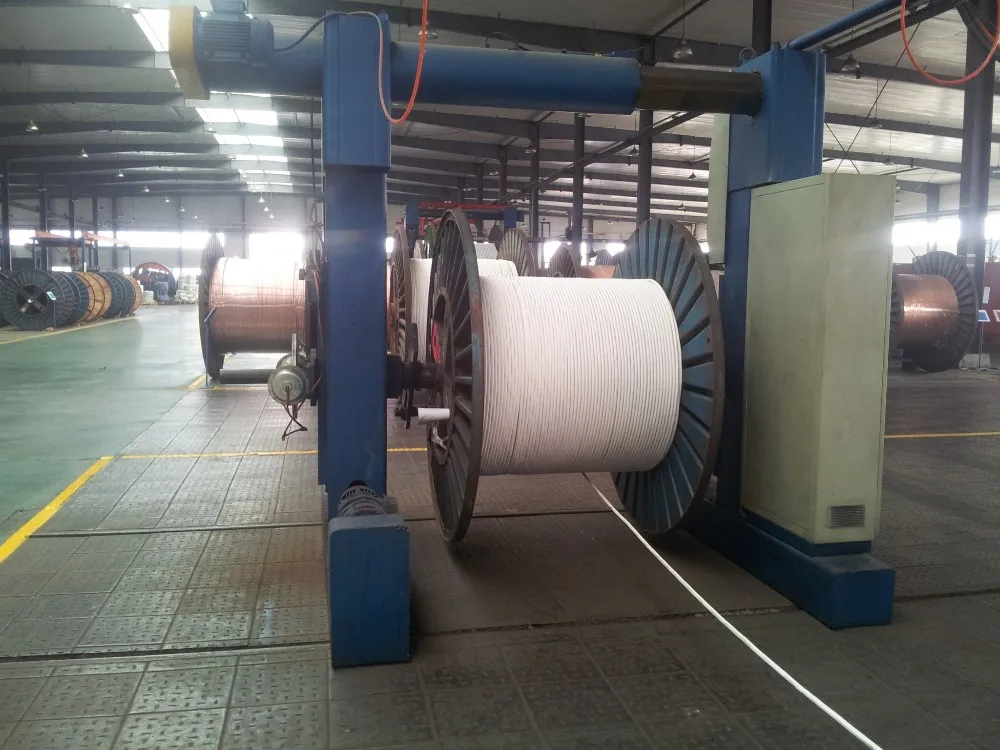

Product Processing

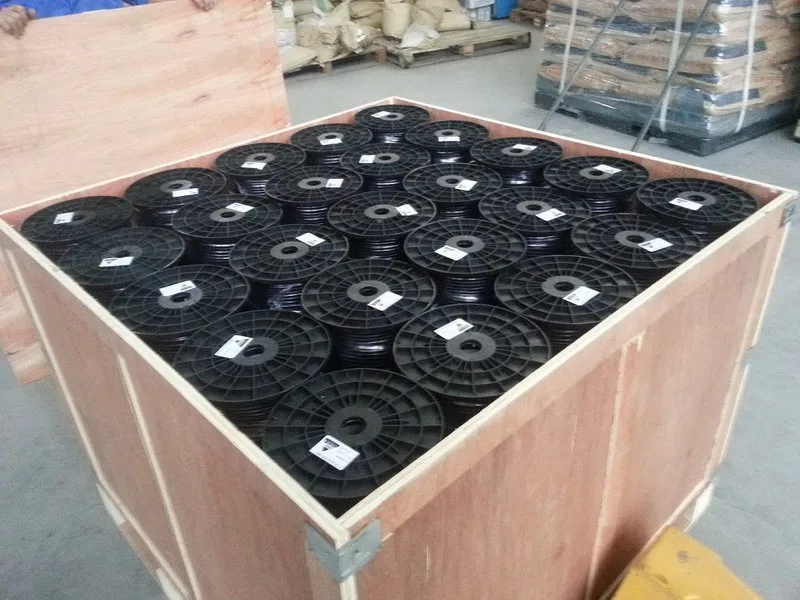

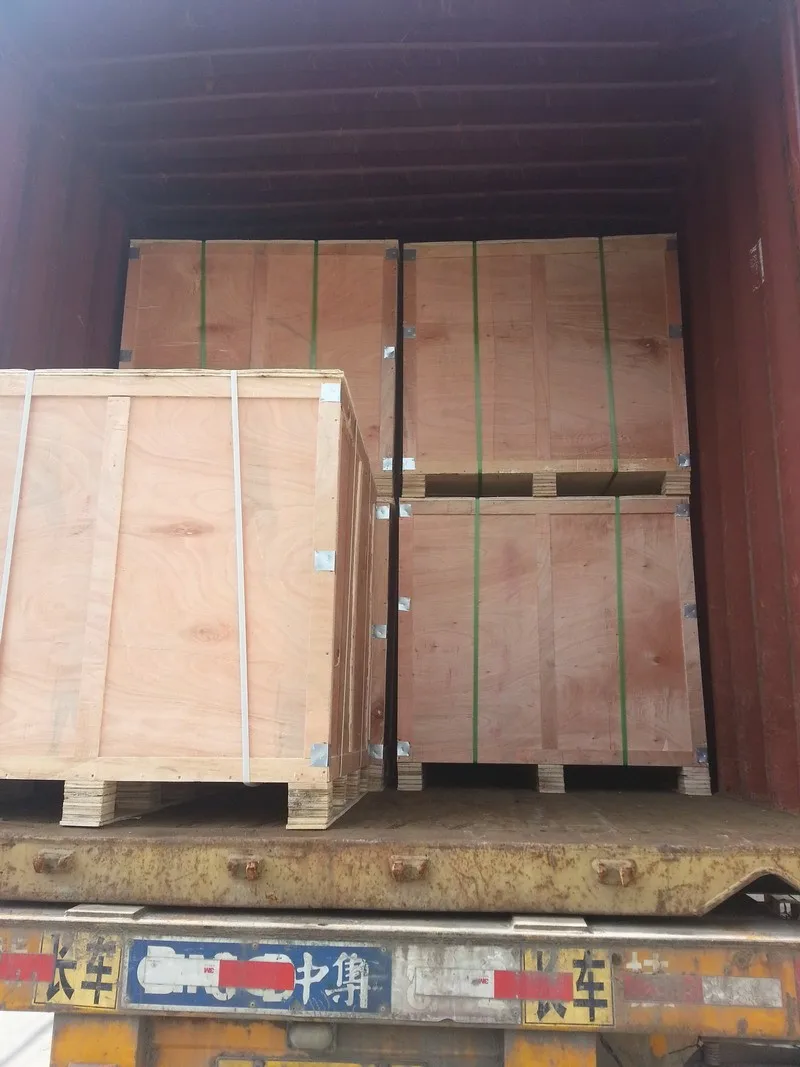

Container Packing

Container	20’ GP	40’ GP
Meters per wooden carton	6400	6400
Wooden cartons per container	20	40
Meters per container	128000	256000

Our Services.

1)To maintain quality control we do personally inspect for each item prior to shippment.
2)We guarantee 100% customer satisfaction,we guarantee that our products are brand new and first-class quality
3)We take pride in our quality system.
4)All products shipped are 100% inspected
For any questions pls feel free to contact me through the detailes Beside

Certificates

- CE SHBST16040061675386YEC
- TUV R50275081

Price

Price US$ 1.1 / Meter

Packaging & Shipping

- Packing200m/box 100m/roll
- Packaging Size42 x 42 x 22 ( Centimeters)
- Package Weight 32 ( Kilograms )
- Delivery Lead Time7days
- Minimum Order 500 Meter
- Supply Ability60,000meter per day
- Total quantity in StockOver 5000
- Delivery PortNingbo
- Shipping Career

Product Image

TUV Wire Tinned Copper PV Photovoltaic EN50618 H1Z2Z2-K 1x10mm2 Solar Cable

TUV Wire Tinned Copper PV Photovoltaic EN50618 H1Z2Z2-K 1x10mm2 Solar Cable 2

TUV Wire Tinned Copper PV Photovoltaic EN50618 H1Z2Z2-K 1x10mm2 Solar Cable 3

Solar Cable 10mm2 Related Products

Company Profile

About Zhejiang Pntech Technology Co.. Ltd.

Membership Free member
Registration Date2017.05.25
Country/RegionChina
CityNingbo
Contact Rainbow Young(Ms.)

Our company is a specialized manufacturer and exporter of solar energy photovoltaic products in China.
Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Selling Categories

- Electrical Equipment & Supplies >> Connectors & Terminals
- Electrical Equipment & Supplies >> Wires, Cables & Cable Assemblies
- Tools >> Hand Tools

Keywords

solar cable , pv cable , mc4 connector , tool

Registration Date	2017/05/25(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2011
Employees total	51 - 100
Annual revenue	USD 10,000,001 - 50,000,000

Contact Information Order Credit Report

Company	Zhejiang Pntech Technology Co.. Ltd.
Address	No.1, North of Zhongyi Avenue, Gulin Town, Haishu District, NingboNingboZhejiang315100China
Phone	86 - 574 - 27975177
Contact	Rainbow Young
