Telecentric Megapixel High Resolution and Magnification Lenses

Add to Basket Share to :

Price

US$ 1

Min Order Quantity1 Piece
Supply Ability1000
PortShanghai
Delivery Lead Time3-4 days
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Soyo Security Co.,Ltd
Membership Free member
Registration Date2013.04.24
Country/RegionChina
CityShanghai
Contact Fany Chow(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Soyo
- Model Number STC11230-48H
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Red
- Related Keywords telecentric camera lens, fisheye cctv lenses ITS, FA machine vision optics

Description by Manufacturer

Double-Telecentric Lenses 2/3" Object FOV 48mm

SUGGESTED !
The STC11230-48H 2/3" Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc., these lenses feature a varity of FOV up to 300mm, customized design for 1/2.5" ~1.1" sensor, and bi-telecentric design for high quality imaging.

Optimized for 1/2.5"~1.1" C-Mount cameras;
Large FOV from 26mm upto 300mm;
Excellent resolution for high pixel cameras;

Low distortion, good telecentricity,big aperture and big depth of field for high end application.

Optical specifications
Magnification(x)	0.238
Object Field of View (Φmm)	48
Working Distance (mm)	128±3
Max Sensor Size (Φmm)	11.4(2/3")
Best Aperture (F/#)	5.4
Telecentricity typical (max) (deg)	<0.1
Distortion typical (max) (%)	<0.1
MTF30 (lp/mm)	>165
Depth of Field (mm)	±7.7@F11
Length of I/O (mm)	282±3

Field of View (mm × mm)
8.47x7.1 with ICX625/655	35.6x29.8

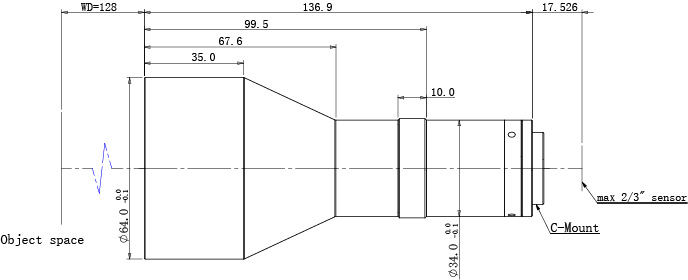

Mechanical Specifications
Mount	C
Length (mm)	136.9
Weight (kg)	0.5

(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTV レンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )

Cell： 86-18949838193

Skype/wechat： soyocctv

Price

Price US$ 1 / Piece

Packaging & Shipping

- Packingstandard
- Delivery Lead Time3-4 days
- Minimum Order 1 Piece
- Supply Ability1000
- Total quantity in Stock501 – 700
- Delivery PortShanghai
- HS Code9002199010
- Shipping Career

Product Image

Telecentric Megapixel High Resolution and Magnification Lenses

Main Export Markets

- Soyo Security Co.,Ltd is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia

Download Product Brochure

M12 Lens Data..pdf (0.32 Mb) FA Lens Datasheet.pdf (1.42 Mb)

Company Profile

About Soyo Security Co.,Ltd

Membership Free member
Registration Date2013.04.24
Country/RegionChina
CityShanghai
Contact Fany Chow(Mr.)

[ Soyo History ]
Soyo security Co., Limited, a dynamic & aggressive optical cctv lens company founded in 2005 in Shanghai China, with cooperated factories & offices, the Hong Kong office was open in 2013 to enlarge overseas business.
We are a professional CCTV lens supplier at lens designing, manufacturing, sales & services for industrial and commercial application, from surveillance megapixel lenses to consummer lenses, from scanner lenses to video conference lenses, machine vision lenses, FA lenses to ITS lenses. Soyo Optical makes a great many of different lenses for world clients during the past years.
We are one of the best CCTV Lens supplier balancing quality and price in the Great China region & all over the world,selling more than 5,00,000 pieces optical machine vision lenses, FA lens, CCTV lenses , Telecentric lenses in the past years, with 60%-80% percent export business out of sales.

[ Soyo Advantages ]

We bring in advanced management and outstanding skills at coating, plastic injection technology, and attentions to: Supplying the free of charge advance-sales and after-sale service; we trust " honesty is the best policy " to be the life of our enterprise. Soyo optical has long-term megapixel lens cooperation with many big companies and owns majority of projects overseas. Samsung, Foxconn, Huawei, Xiaomi, BOE, Petrol China, Hongda, Volkswagen etc. are the business partners, with business to Industrial, Safe city, Government, AI, Tele-communication, Hospital, Power supply, ITS etc. covering countries just like Korea,Thailand, India, Maylasia, USA, Indonesia etc.
Since 2019, we have been working with many big Chinese/Japanese brands at industrial FA machine vision cameras while providing megapixel lenses to our clients with lower price, which have saved much percent of cost for the end-users upon one-stop solutions.

Why to select Soyo as partner :
SOYO : A Professional Supplier At Megapixel Lenses.

SOYO : To See Everything Be Much Clear !

Selling Categories

- Security & Protection >> CCTV Products

Keywords

cctv lens , megapixel lens , motorized zoom lens , FA lens

Registration Date	2013/04/24(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2005
Employees total	51 - 100
Annual revenue	USD 10,000,001 - 50,000,000

Contact Information Order Credit Report

Company	Soyo Security Co.,Ltd
Address	1F,#2158 HUQINGPING Highway,Xujing,QingpuShanghaiShanghaiChina
Phone	86 - 189 - 49838193
Homepage	http://www.soyocctv.com
Contact	Fany Chow / Sales director
