Transparent Transmission LoRa Wireless Module with SX1278 Chip and UART Interface

Add to Basket Share to :

Price

US$ 5.9

Min Order Quantity500 Piece
PortShenzhen
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen DreamLNK Technology Co., Ltd
Membership Free member
Registration Date2008.06.06
Country/RegionChina
CityShenzhen
Contact James Wu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.James Wu

Shenzhen DreamLNK Technology Co., Ltd

* Buying Product

Category : Wireless Networking Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name DreamLNK
- Model Number DL-RTS1278M
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Yellow
- Sensitivity -132dBm
- Standby current <250nA
- Transmit power 100mW
- Related Keywords UART Wireless Module, LoRa Wireless Module, SX1278 LoRa Module

Description by Manufacturer

Wireless Transparent Transmission LoRa Module (SX1278 Chip) with UART Serial Port:

DL-RTS1278M is a high-performance wireless serial port LoRa module developed by DreamLnk for wireless meter reading and industrial remote control, it was embedded with high-speed low-power MCU and high-performance spread-spectrum RF chip SX1278, with LoRa spread-spectrum technology, while using efficient cyclic interleaving error correction coding, anti-interference and sensitivity are at the most advanced level in the industry. DL-RTS1278M provides multiple channel selections, and can online modify the serial port rate, transceiver frequency, transmit power, RF rate and other parameters. The default frequency is 434.125MHz. The working voltage of DL-RTS1278M is 2.1-3.6V, and only consumes 13mA in the receiving state. DL-RTS1278M has four working modes, which can be arbitrarily switched between the modes. In the 1SEC cycle polling wake-up power saving mode (Polling mode), the reception consumes only tens of microamps, a section of lithium at 3.6V / 3.6AH. The sub-battery can work for several years and is very suitable for battery-powered systems.

Features:

● 3000 meters transmission distance (0.81Kbps)

● Working frequency 433MHz, 470MHz, 868MHz, 915MHz optional

● -132dBm = 810bps ultra-high sensitivity

● Maximum 100mW transmit power

● LoRa spread spectrum modulation

● Zero waiting to wake up, with air wake up function

● Efficient cyclic interleaving error correction coding

● Four working modes, standby current 2.5uA

Applications

● Wireless automatic meter reading

● Extremely long distance data communication

● Wireless sensor network

● Industrial automation data collection

● Field data remote control and telemetry

● Various transmitters, flowmeter intelligent instruments

● Building automation and security

● Monitoring and control of mine petroleum equipment

● Environment, energy saving, temperature monitoring

● Intelligent transportation, intelligent power

● Intelligent robot

As a professional wireless module supplier, and a third party design office (of TI, Silicon Labs, Semtech), DreamLNK is specialized in radio frequency field for almost 8 years! Should there is any other question, please kindly let me know.

Price

Price US$ 5.9 / Piece

Product Image

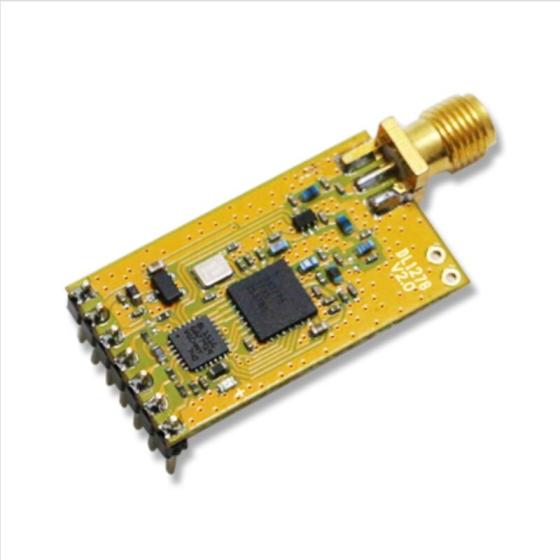

Transparent Transmission LoRa Wireless Module with SX1278 Chip and UART Interface

Transparent Transmission LoRa Wireless Module with SX1278 Chip and UART Interface 2

Transparent Transmission LoRa Wireless Module with SX1278 Chip and UART Interface 3

UART Wireless Module Related Products

Main Export Markets

- Shenzhen DreamLNK Technology Co., Ltd is mainly exporting to Asia, Europe, Australia

Download Product Brochure

Wireless RF Modules Presentation from DreamLNK.pdf (2.13 Mb)

Company Profile

About Shenzhen DreamLNK Technology Co., Ltd

Membership Free member
Registration Date2008.06.06
Country/RegionChina
CityShenzhen
Contact James Wu(Mr.)

Shenzhen DreamLNK Technology Co., Ltd. (referred to asDreamLNK) is a professional high-tech enterprise specializing in ISM band micro-power wireless communication technology. We have a professional R&D team with abundant working experience; can provide you various RF modules and one-stop intelligent IOT solution!

As a member of the CLAA China LoRa application alliance, and a third-party design office of TI-chipcon, Silicon Labs, Semtech, DreamLNK can provide different kinds of RF modules, include SOC embedded data transmission modules, intelligent IoT modules, ultra-high-performance industrial control data transmission radios (e.g.: 2.4G module, UART serial module, Lora, FSK module, ASK Module, Bluetooth module, WiFi module, etc.)

After years of development, we have already occupied a place in the field of high-performance radio frequency modules, and have developed a series of mature radio frequency products. Meanwhile, we have invested an antenna laboratory and a modern factory in Dongguan (Tang Xia) in year 2016. So, we can also provide high quality antenna, and relative smart link products!

Nowadays, our complete product line is increasingly used in wireless data acquisition, environmental monitoring, industrial control, medical and health, smart home, IoT terminal, children education, aero-modeling, etc.,

Relying on our professional R&D team, high-precision testing & measuring equipment, advanced antenna laboratory, and a strict quality control, we can greatly shorten the development cycle, and always provide our clients first-class reliable product, with consistency quality.

We promise to provide you a professional after-sales service, and a comprehensive technical support. Welcome to inquire! Let us create a better future together!
