Trimos Portable CMM C-Line C4 CH 3D Measuring Instrument

Add to Basket Share to :

Price

US$ 40000 ~ 60000

Min Order Quantity1 Unit
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Trimos SA
Membership Free member
Registration Date2022.11.07
Country/RegionSwitzerland
CityRenens
Contact Katalin Bede(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name trimos
- Model Number C4
- Place of Origin Switzerland
- Supply Type In-Stock Items
- Condition New
- Color grey
- Related Keywords CMM, portable CNC CMM, coordinate Measuring, swiss made, measuring machine

Description by Manufacturer

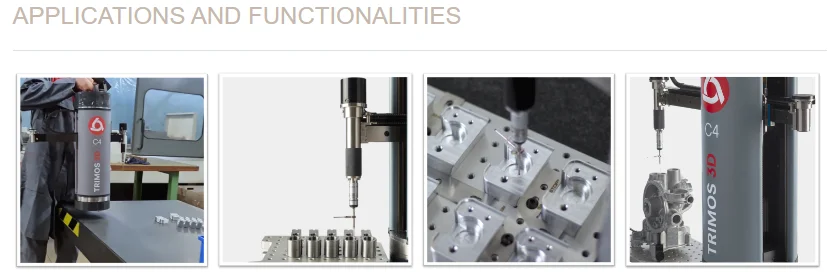

Trimos' new C-Line is the world’s first truly portable CNC Coordinate Measuring Machines designed for the workshop. This product line is part of the new TRIMOS 3D product group.

Portable: At only 13,5 kg, the CNC C-Line goes with you wherever you need it. You are no longer required to take the part to the CMM, the C-Line can be deployed directly in the manufacturing process.

Easy-to-Use: The C-Line is easy to operate using a portable PC. The concept of this product has been thought for optimal user experience and ease-of-use.

Software: The C-Line is delivered standard with the ControlC software, which allows you to perform many type of measurements: distance, circle, plane, line, point… To take full advantage of the performance of the C4, we advise the optional Aberlink software, 3D software offering the advantage of ease of use. Other measurement software are compatible: PolyWorks, CMM Manager, Verisurf etc.

Portable for the maximum of flexibility
4 axes
High precision using Renishaw TP20 probe
Small footprint
Fully CNC combined with manual operation
Ease of use with Aberlink software
3D complement to the height gage 1D/2D
Designed for workshop
Ethernet or wireless communication
Extremely easy to use

TECHNICAL SPECIFICATIONS

C-Line

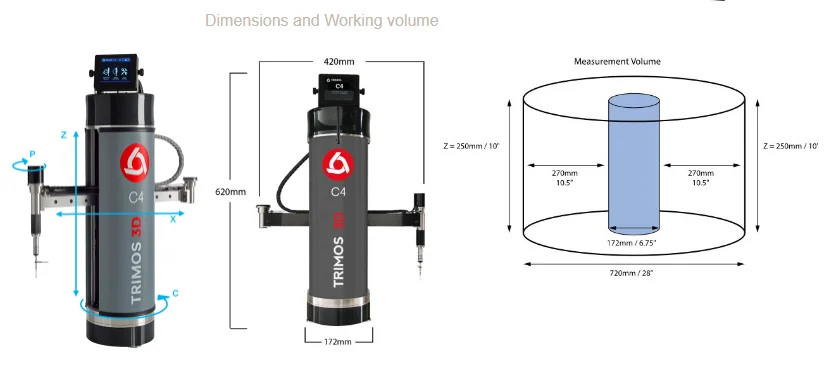

Working volume	mm	X and Y Ø 720, Z 250
MPE_E	µm	8.0
Fixturing accuracy requirement	mm	5
Machine speed	mm/s	User controlled to 150
Machine air requirement		None required
Construction		Stainless steel for all structural components
Machine power requirements		100-240 V AC±10%, 50-60Hz
Autonomy	h	Normal: 4 /peak: 3
Power consumption	W	Normal: 10 / Peak 15
Manual motion control		User controlled by hand movement of probe
Controller	%	Onboard PCB provides motion control, error mapping, I++ interface and ControlC metrology software
Probe Type		Renishaw TP20 probe
Machine weight	kg (lbs)	13.5 (30)
Machine dimensions (W x D x H)	mm	420 x 172 x 620
Operational Temperature	°C	+10 ÷ +40
Storage Temperature	°C	+10 ÷ +40

Price

Price US$ \ 40000 ~ 60000 / Unit

Product Image

Trimos Portable CMM C-Line C4 CH 3D Measuring Instrument

Trimos Portable CMM C-Line C4 CH 3D Measuring Instrument 2

Product Video

Related Products from premium suppliers on EC21

- Trimos SA is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure

gauges (1).pdf (7.63 Mb) Catralog_Calibration_benches.pdf (0.86 Mb) Catalog_Measuring_Benches.pdf (1.13 Mb) Brochure_C_Line.pdf (1.94 Mb) Line.pdf (2.84 Mb)

Company Profile

About Trimos SA

Membership Free member
Registration Date2022.11.07
Country/RegionSwitzerland
CityRenens
Contact Katalin Bede(Ms.)

In an industrial world where quality control becomes more and more important, Trimos is proud to be able to offer a large range of solutions responding to dimensional measurement needs. Each instrument has its specific application and definitely solves all required tasks. Our products combine high precision, innovation, advanced design and ease of use.

Since 1972, Trimos has managed to position itself as the leader in its fields of activity and guarantees a Swiss Made manufacturing quality level. Trimos is focused on 4 segments in the dimensional metrology field:

Height gauges
Measuring and calibration benches
3D instruments: Portable CNC CMM & Measuring arms
Surface analysis instruments

We offer turnkey solutions based on the following modular items:

Instruments
Large range of accessories
Hardware
Software and driver programs

Trimos distributes its products in more than 40 countries through a network of agents. With their help, we can offer a large number of services as qualified technical support for selling new instruments, perfect after-sales services and technical training.

If quality is your objective, Trimos is your partner.
