Trimos V7 CH Vertical Measuring Instrument

Add to Basket Share to :

Price

US$ 4000 ~ 15000

Min Order Quantity1 Piece
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Trimos SA
Membership Free member
Registration Date2022.11.07
Country/RegionSwitzerland
CityRenens
Contact Katalin Bede(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Trimos
- Model Number V7-700
- Place of Origin Switzerland
- Supply Type In-Stock Items
- Condition New
- Color Grey
- Related Keywords diameter measuring, height gauge, angles measuring, cones measuring, swiss made

Description by Manufacturer

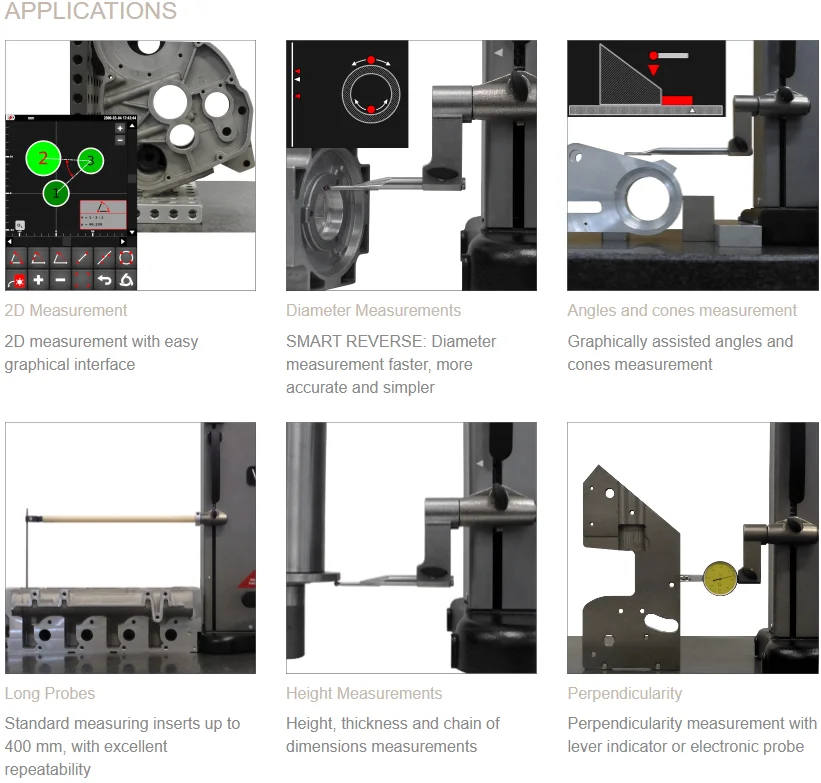

The Trimos height-gauge V7 combines technological innovation and tradition.

With its touchscreen and lateral insert holders, which have proven their worth for decades, the V7 rank as top of the line instruments for the workshop.

In spite of a brand new interface, Trimos instruments philosophy has been maintained and the user will have no difficulty whatsoever to rapidly take it in hand.

The touch-display allows a maximal simplified use as no superfluous information is displayed and therefore the number of functions buttons is limited to what is strictly necessary.

Functions that are normally considered as complex, such as programming, 2d or statistics, become child’s play. It results in an unequalled ease of use and therefore a substantial increase in productivity.

The pair of lateral insert holders comes from generations of instruments that have forged the reputation of Trimos. Their great robustness and flexibility allow the use of very diverse probes up to 400 mm long with a breath-taking repeatability

The V7-700 is equipped with a revolutionary displacement handwheel that allows the user to choose either the manual or motorized displacement mode.

Measuring ranges from 400 to 1800 mm
Simple and easy to use graphic interface
Electronically adjustable measuring force
Motor-driver or manual displacement
2d, programming, statistics
Vast range of accessories
All adjustments possible without tools

TECHNICAL SPECIFICATIONS

V7		400	700	1100	1800
Measuring range	mm (in)	407 (16)	711 (28)	1110 (44)	1810 (71)
Measuring range with extension	mm (in)	719 (28)	1023 (40)	1422 (56)	2122 (83)
Max permissible errors, BMPE	µm	2 + L(mm)/400			2.5 + L(mm)/300
Repeatability, RMPE (2s)	µm	1 (Ø:2)
Frontal squareness deviation SMPE	µm	5	8	11	25
Max. Resolutions	mm	0.0001 (0.00001)
Measuring force	N	0.75 ÷ 1.5
Autonomy	h	12
Interfaces		USB / RS232
Air cushion		Yes
Weight	kg	22	25	34	41

Price

Price US$ \ 4000 ~ 15000 / Piece

Product Image

Trimos V7 CH Vertical Measuring Instrument

Trimos V7 CH Vertical Measuring Instrument 2

Trimos V7 CH Vertical Measuring Instrument 3

Trimos V7 CH Vertical Measuring Instrument 4

Trimos V7 CH Vertical Measuring Instrument 5

Diameter Measuring Related Products

Related Products from premium suppliers on EC21

- Trimos SA is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure

gauges (1).pdf (7.63 Mb) Catralog_Calibration_benches.pdf (0.86 Mb) Catalog_Measuring_Benches.pdf (1.13 Mb) Brochure_C_Line.pdf (1.94 Mb) Line.pdf (2.84 Mb)

Company Profile

About Trimos SA

Membership Free member
Registration Date2022.11.07
Country/RegionSwitzerland
CityRenens
Contact Katalin Bede(Ms.)

In an industrial world where quality control becomes more and more important, Trimos is proud to be able to offer a large range of solutions responding to dimensional measurement needs. Each instrument has its specific application and definitely solves all required tasks. Our products combine high precision, innovation, advanced design and ease of use.

Since 1972, Trimos has managed to position itself as the leader in its fields of activity and guarantees a Swiss Made manufacturing quality level. Trimos is focused on 4 segments in the dimensional metrology field:

Height gauges
Measuring and calibration benches
3D instruments: Portable CNC CMM & Measuring arms
Surface analysis instruments

We offer turnkey solutions based on the following modular items:

Instruments
Large range of accessories
Hardware
Software and driver programs

Trimos distributes its products in more than 40 countries through a network of agents. With their help, we can offer a large number of services as qualified technical support for selling new instruments, perfect after-sales services and technical training.

If quality is your objective, Trimos is your partner.
