Product Attributes

- Brand Name MYDZIrDA
- Model Number MY015
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Interface TYPE-C USB TO OPTICAL INTERFACE
- Transmission wave lenght 940nm
- Protocol DLMS/COSEM
- Related Keywords TYPE-C USB, Infrared, STS DLMS, KWH METER

Description by Manufacturer

DESCRIPTION

MY015 Type C USB to IR converter /optical probe utilize an infra-red LED technology to provide a galvanically isolated, bi-directional communications link between computers and electric utility meters for obtaining meter data, performing site diagnostics and making programming changes. Connecting to a computer or hand-held terminal/Android phon. they permit galvanically isolated communication with electricity and gas smart meters.

FEATURES

*This probe are intended for both-way serial communication with the meter via infrared.

*Compatible with IEC meters, MID meters.

*Compatible with DLMS/COSEM protocol.

*TYPE C USB2.0 interface

*Transparent data transmission, supporting all protocols.

*Support Windows XP/ 7/8/10/11 and Android .

*This probe is attached to smart meter by the permanent magnet.

TECHNICAL DATA

*Communication equipment: PC (notebook, HHU - Hand-Held Units, Mobile Phone) with Type C USB interface

*Magnetic Cohesion forcethe steel plate) : more than 15 N

* Interface: Type C USB2.0 ,half-duplex, male or female ports are optional.

*Transmission speed [Bd] : 300, 600, 1200, 2400, 4800, 9600, 19200

*Transmission wave lenght[nm]: 800 to 1000

*Power supply : Via Type C USB2.0

*Standard: According to ISO/IEC 1107,ISO/IEC62056,DLMS/COSEM

*Cable length: 2m

*Certification: CE

*Working temperature range: - 20 °C to + 70 °C

*Weight [kg] : about 0.16

Packaging & Shipping

- Packing1 piece per box
- Packaging Size16 x 11 x 5 ( Millimeters)
- Package Weight 0.16 ( Kilograms )
- Delivery Lead Time7 days for ready goods
- Supply Ability1000 Set/ Sets per Month
- Total quantity in Stock301 – 500
- Delivery PortShangHai
- HS Code90289010
- Shipping Career

Product Image

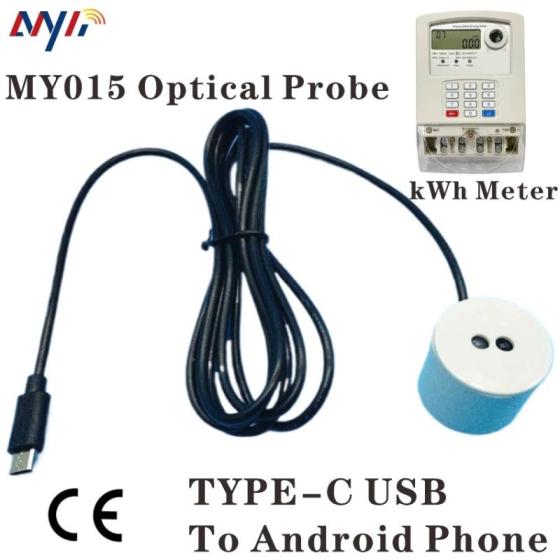

Type C USB To Optical Interface IR Near Infrared IEC1107 IEC62056-21 Dlms Magnetic Adapter Kwh Meter

TYPE-C USB Related Products

Related Products from premium suppliers on EC21

- JiaXing MingYuan Electronics Co., Ltd. is mainly exporting to Asia, Europe, South America, Australia

Company Profile

About JiaXing MingYuan Electronics Co., Ltd.

Membership Free member
Registration Date2024.06.16
Country/RegionChina
CityJiaxing
Contact Jack Yang(Mr.)

Our company sells a variety of optical probes, which are widely used in energy meters, water meters, gas meters, heat meters and other instruments with infrared communication for meter reading and data acquisition.

Our optical probe has a rich variety of different interfaces, such as mainstream USB2.0, RS485, RS232, TTL and other different interfaces, which is convenient for users to read meters in the field, and communicate with the calibration station in the instrument factory. The optical probe meets IEC1107, IEC62056-21, DLMS/COSEM, ANSI C12.18 and other standards.

Of course, we can also customize optical probes according to customer needs in order to meet customer needs and bring customers a better experience.
