Product Attributes

- Model Number 500
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords lan cable making machine, extruder line, pvc extrusion line, cat 5 making machine

Description by Manufacturer

500 twisting machine+Double head backing twisting pay-off

1. Usage:

Twisting machine work with pay-off, finish CAT5,5E,CAT6 network wire to twist in pair.

2.Main features

(1) Pay off and twisting machine feedback linkage through tension swing arm.

(2) PLC setting back twisting ratio to back twisting pay off and twisting machine synchronous linkage control.

(3) Double bobbin back twisted bow made of high strength carbon fiber material,durable.

(4) Twisting machine just need replace one haul-wheel drive wheel to change twisting pitch,hand pull the commutation pole to change the direction.

(5) Spindle cooled by butter,extend the machine life.

(6) All close-end protective equipment,high speed and safe.

3.Main technical parameter:

Φ500 Double head back twist machine
Reeling shaft	φ500mm300mmφ56mm ABS rubber tire
Single coil weight	< 250kg
Coiling tension	Magnetic clutch tension control setting from the machine outside
Wire diameter	0.32-1.2mm twisted pair wire
Twisting OD	Max. 4.0 mm
Range of pitch	10-25mm(Change gear)
Line speed	Max. 1000rpm
Curl speed	Max. 2000rpm
Wire speed	300m/min
Cable type	Bearing type, array pitch can be adjusted
Power	Rotator motor 3.7kw+ inverter Active pay-off motor 0.75kw+inverter , 2 sets
Reel up and down	Motor-driven
Brake	Break line internal and external electromagnetic brake
Backtwisting direction	S&Z
Tension range	200g
Dimension	L2100×W1680×H1420mm
Weight	1850kg
Φ500 Pair twist machine
Wire diameter		φ1.0~φ3.0 mm
Twisted section		0.35-2.0mmsq
Take-up bobbin size		φ500×300 width
Max. speed		2200rpm/4400TPM
Drive motor		4kw+inverter
The range of pitch		4.22-39.64mm
Type of loading&unloading		Hydraulic
Noise		≤70dB(A)
Take-up tension control type		Magnetic powder tension control
Brake		Electromagnetic brake
Center height		640mm
Twisting direction		S&Z
Dimension		L2650W1250H1270mm
Weight		About 2000kg

Price

Price Condition FOB
Price US$ 15000 / Set

Packaging & Shipping

- Delivery Lead Time45
- Minimum Order 1 Set
- Supply Ability5
- Delivery PortSHANGHAI
- Shipping Career

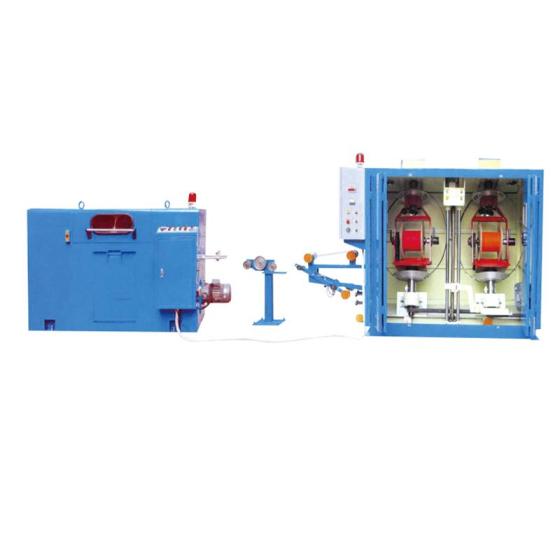

Product Image

UTP/STP CAT6 CAT5 Cable Machine/ LAN Cable Making Machine
