Product Attributes

- Model Number JD25-C,JD25-C,JD9,JD3,JD20.......etc
- Related Keywords precise measuring instruments

Description by Manufacturer

SPECIFICATION Main Measure Work-pieces Include: Smooth columniform worpieces (Axis, hole, plug gauge and ring gauge etc ) The mid-diameter of internal thread, external thread, thread plug gauge and thread ring gauge Workpieces with parallel plane (calipers, length bar and low-grade measuring block) Technical Parameter: Measuring range (mm): External size: Absolute measurement: 1-100 Comparative measurement: 0-670 Internal size: When using small measuring hook (maximum insert depth 12, maximum wall thickness 50): 10-400 When using large measuring hook (maximum insert depth 50, maximum wall thickness 85): 30-370 When using electronic measuring hook: 1-60mm When using universal measuring hook: 14-112mm Measurement of internal thread mid-diameter: When using small measuring hook (thread small diameter 13-30mm) When using large measuring hook [thread small diameter 31 ~ (70  wall thickness) X 2 ] Thread distance: 0.5~6 mm Measurement of external thread mid-diameter: maximum 200mm, thread distance 1~6 mm Measuring force (N): 0, 1.5, 2.5 Digital resolution: 0.1um Accuracy repeatability of the instrument Internal - size measurement

Product Image

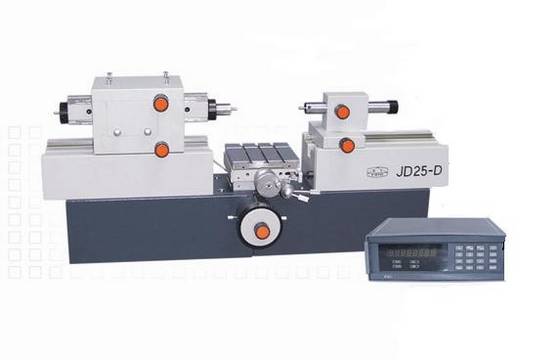

Universal Length Measuring Machine JD-25-C & JD25-D

Precise Measuring Instruments Related Products

Related Products from premium suppliers on EC21

- Guiyang Joint-Win Optical Instruments Co., Ltd is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Guiyang Joint-Win Optical Instruments Co., Ltd

Membership Free member
Registration Date2004.07.14
Country/RegionChina
CityGuiyang
Contact shirley(Ms.)

Guiyang Xintian OETECH Co., Ltd, as a leading manufacturer & exporter of optical measuring instruments in china, is located in a high-tech industrial developmental zone, Xintian, Guiyang, Guizhou, China. It is a comprehensive high-tech enterprise which is mainly concentrates on developing and research, production and marketing of optical instruments, such as all kinds of optical measuring instruments, physics instruments, ophthalmic instruments, telescopes (involving astronomy telescopes), multi-media videophone, TV monitoring systems and grating sensors. As one of the high-tech enterprises, we are proud of our strong technology capabilities, and actively peer into the developing situation within the domain of science and technology in the world. By adopting advanced technology of the developed countries widely in the world, we have improved our products endlessly and achieve the integration in level of light, machine, electricity and computer, which reaches to the internal advanced level. Our products also find good markets in more than 20 countries and regions around the world. Besides, they meet demands of the machine-electricity and mine-metallurgy industries, the calculation as well as measurement departments. Passing a set of whole Quality Guaranteeing System, we are capable of providing our customers with strict and effective quality commitment products. With the principle of ?Clients First and Supreme?, we consistently persist in offering the excellent after-sale services to marketing products.
