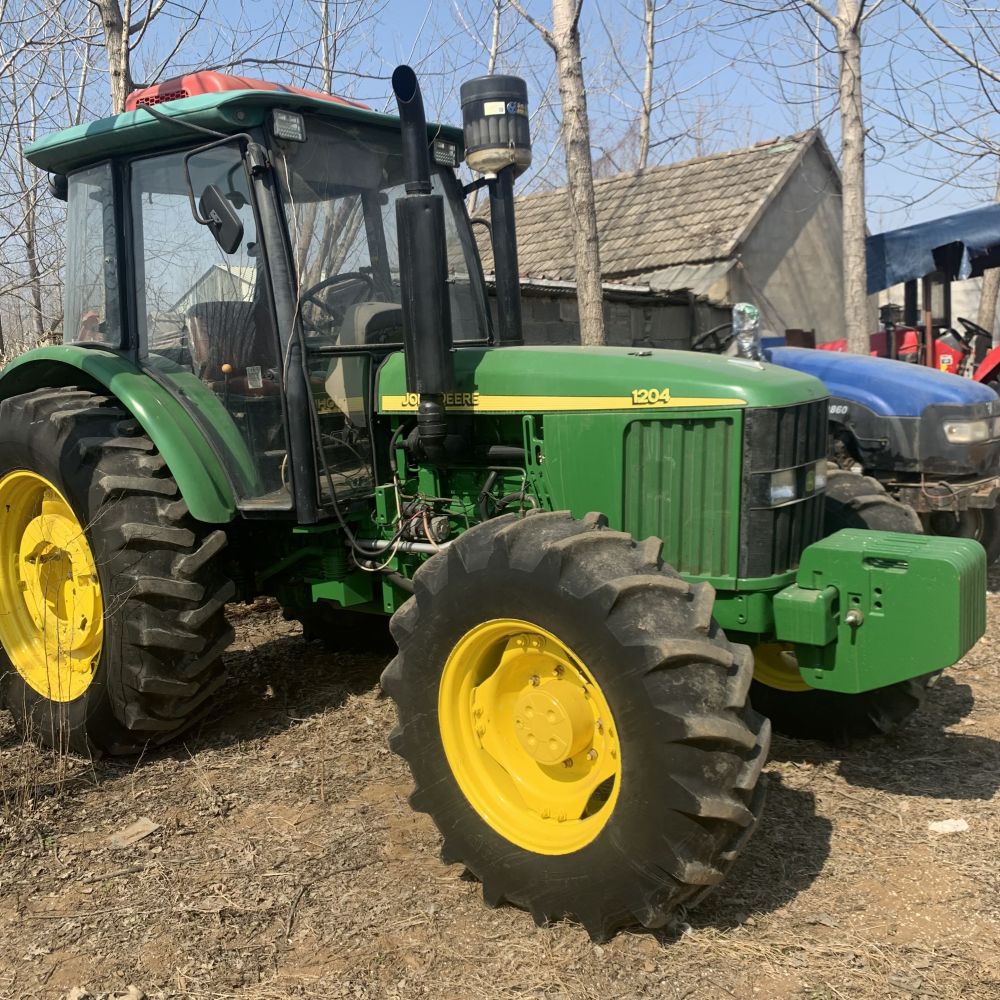

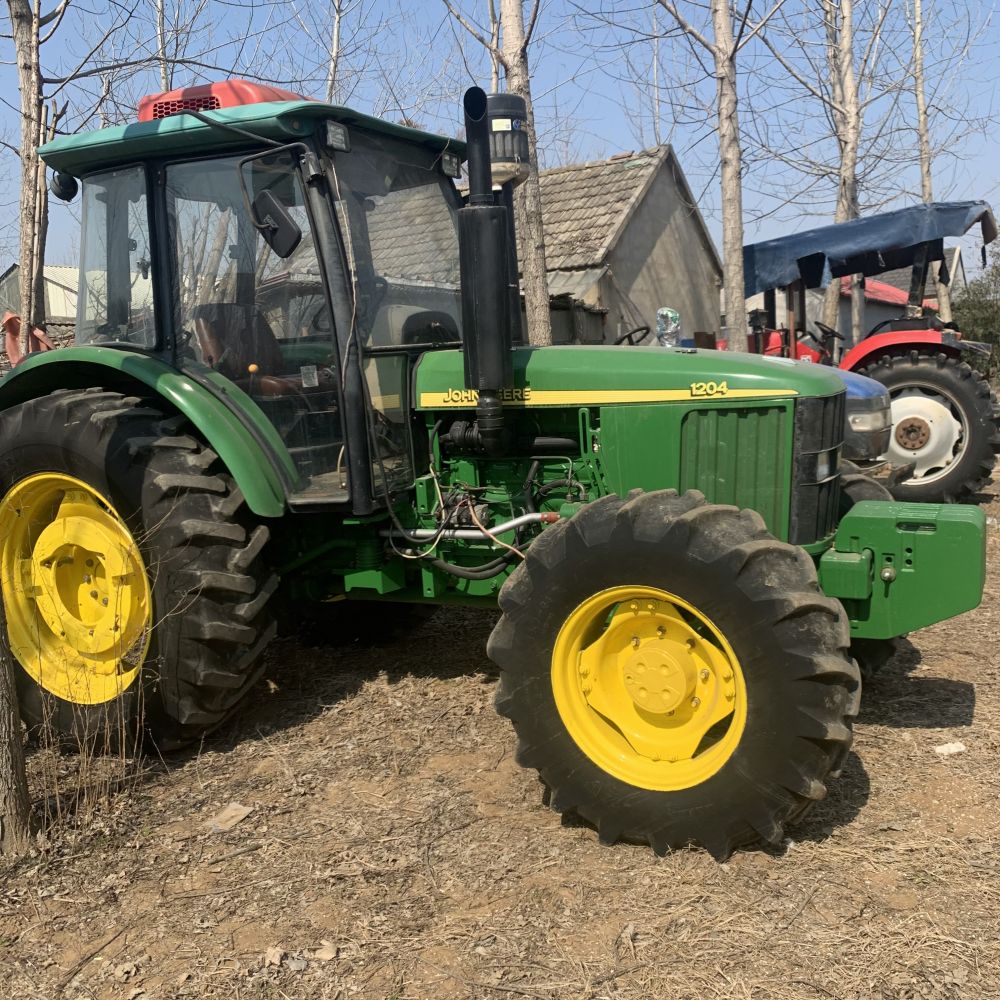

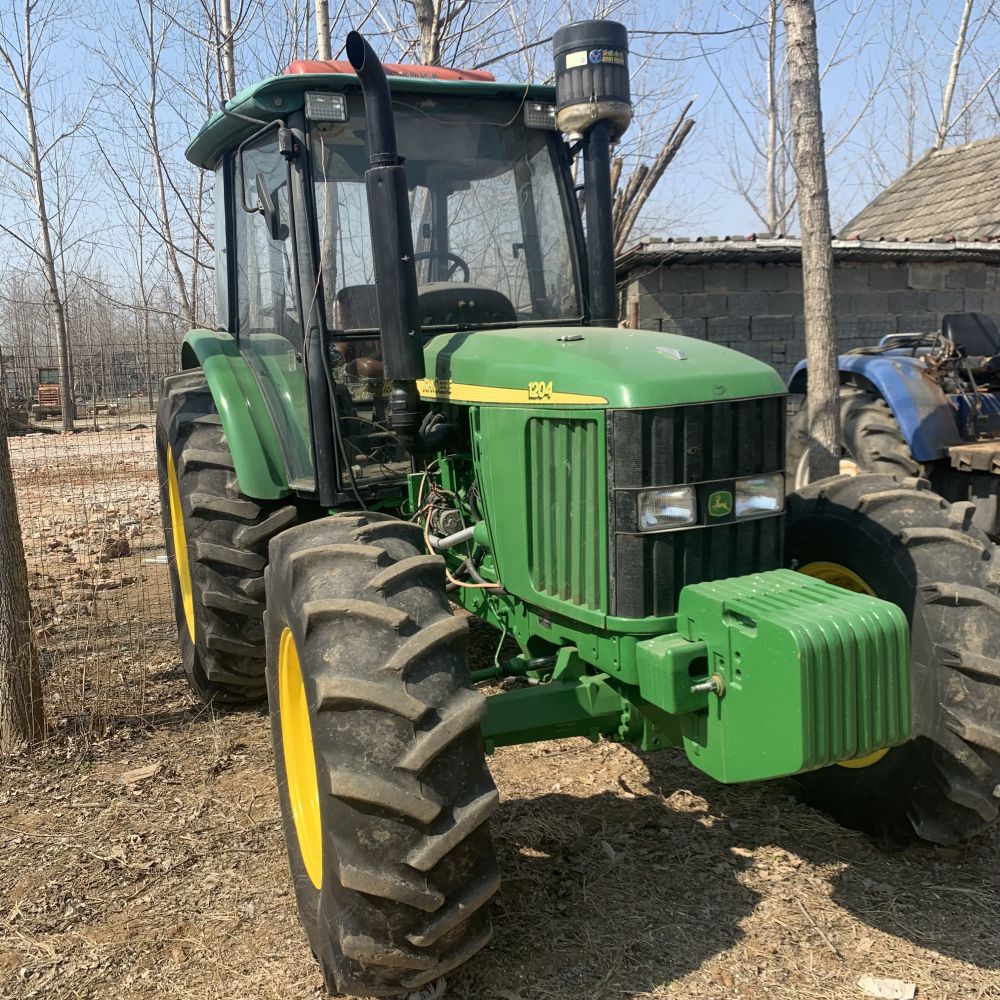

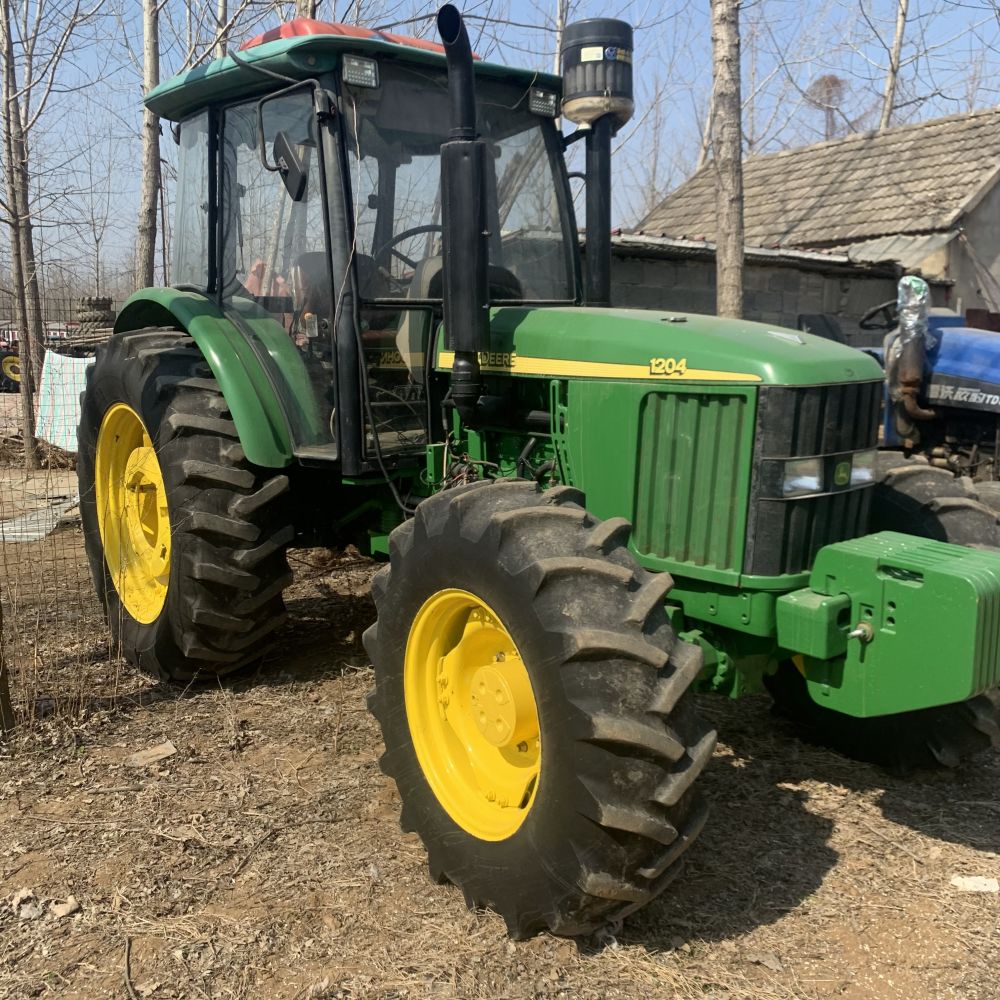

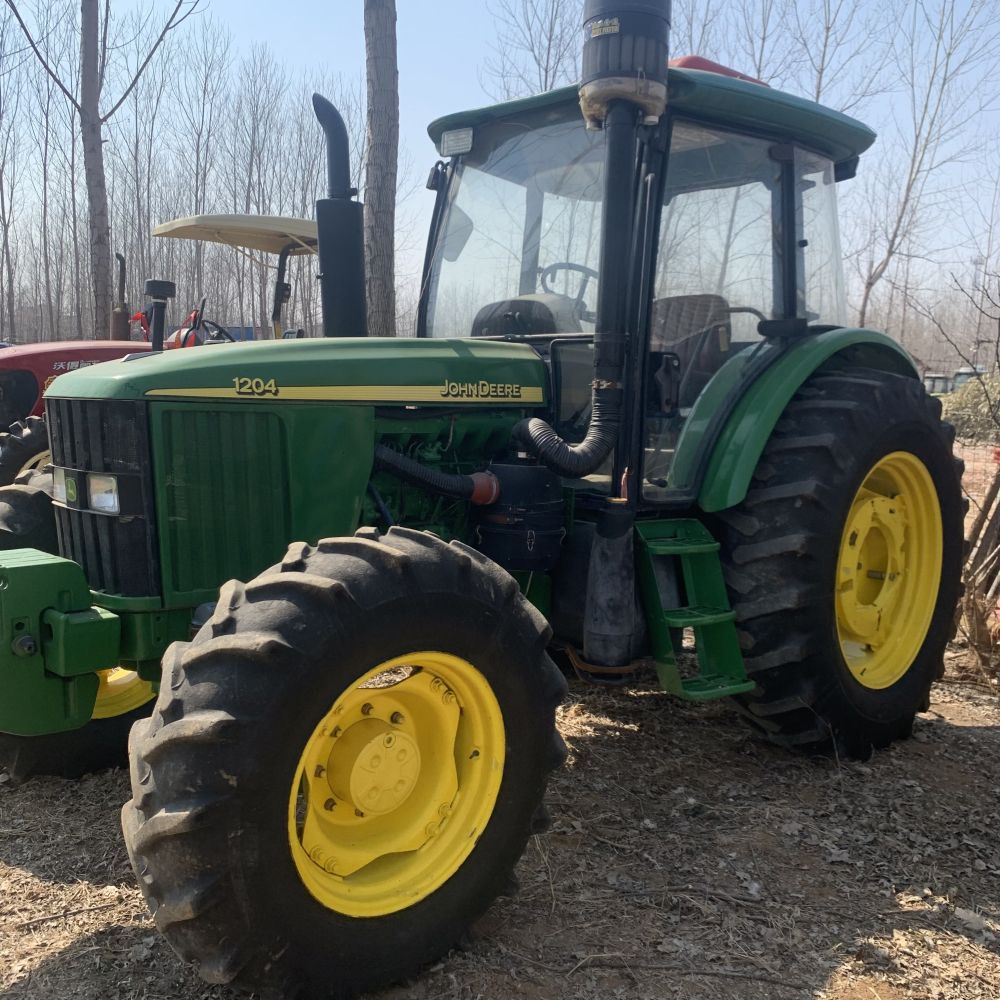

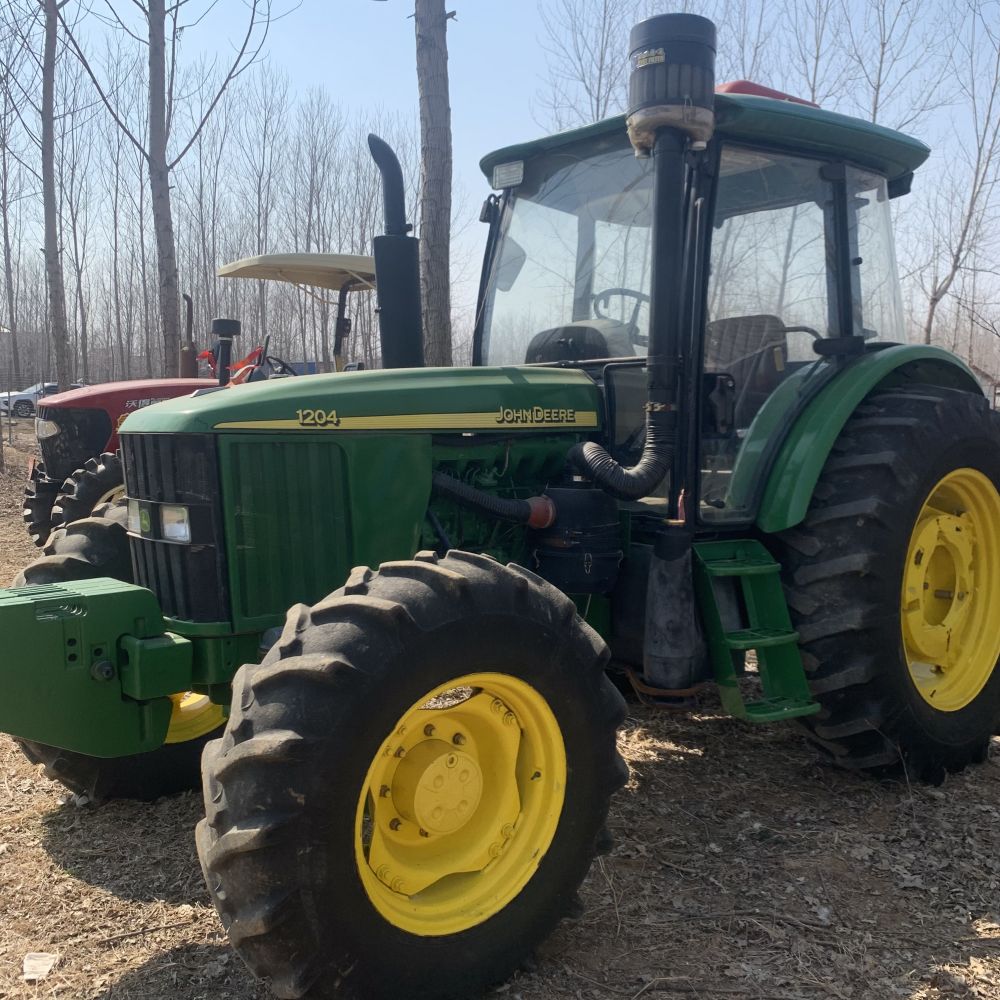

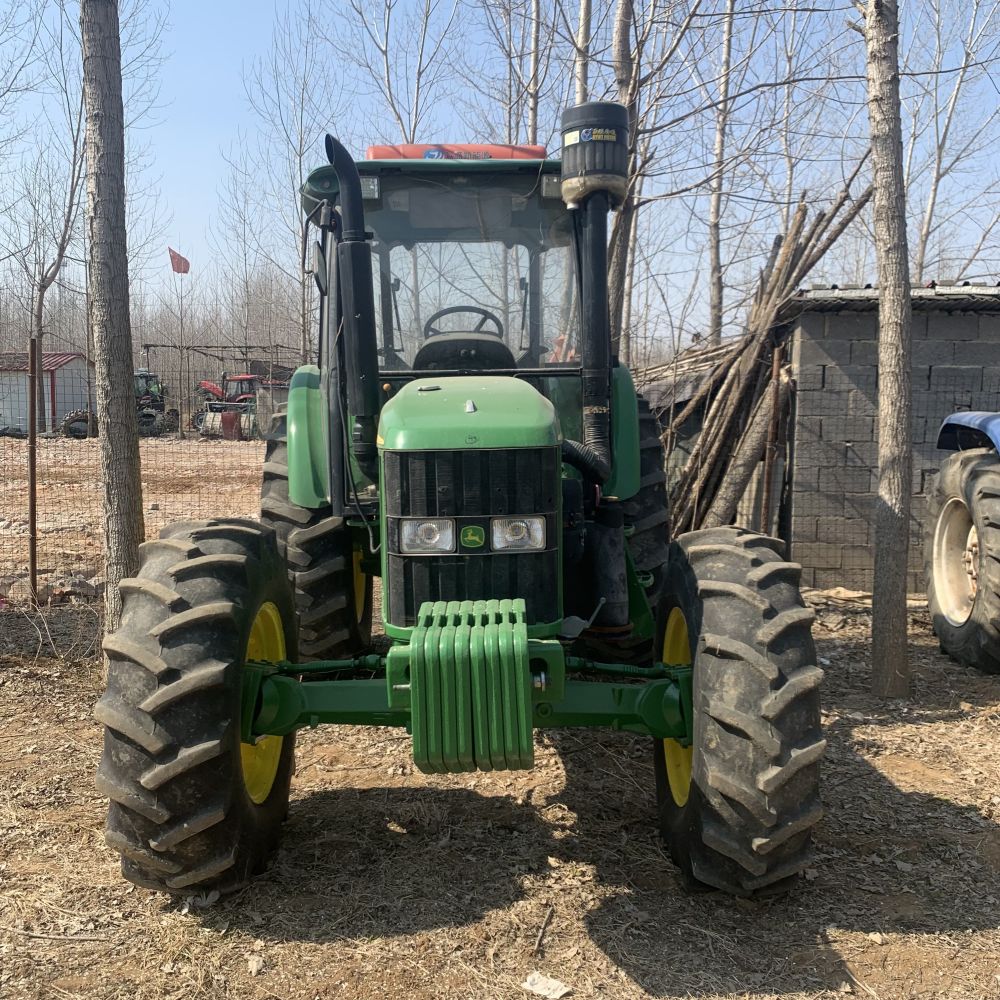

The
1204 tractor has the characteristics of compact structure, good
starting performance, flexible and convenient operation. The engine has
large torque reserve, low noise, and exhaust gas emission meets the
emission requirements of Country 2, which meets the national
requirements for environmental protection emissions. Standard with 9
forward gear and 3 backward gear, optional synchronizer shift, no stop
can smoothly shift, more convenient operation, can meet all kinds of
complex agricultural requirements. The front axle adopts symmetrical
design, with a large steering Angle of 52 degrees and flexible steering.
The minimum steering circle radius is less than or equal to 5.45
meters.
The

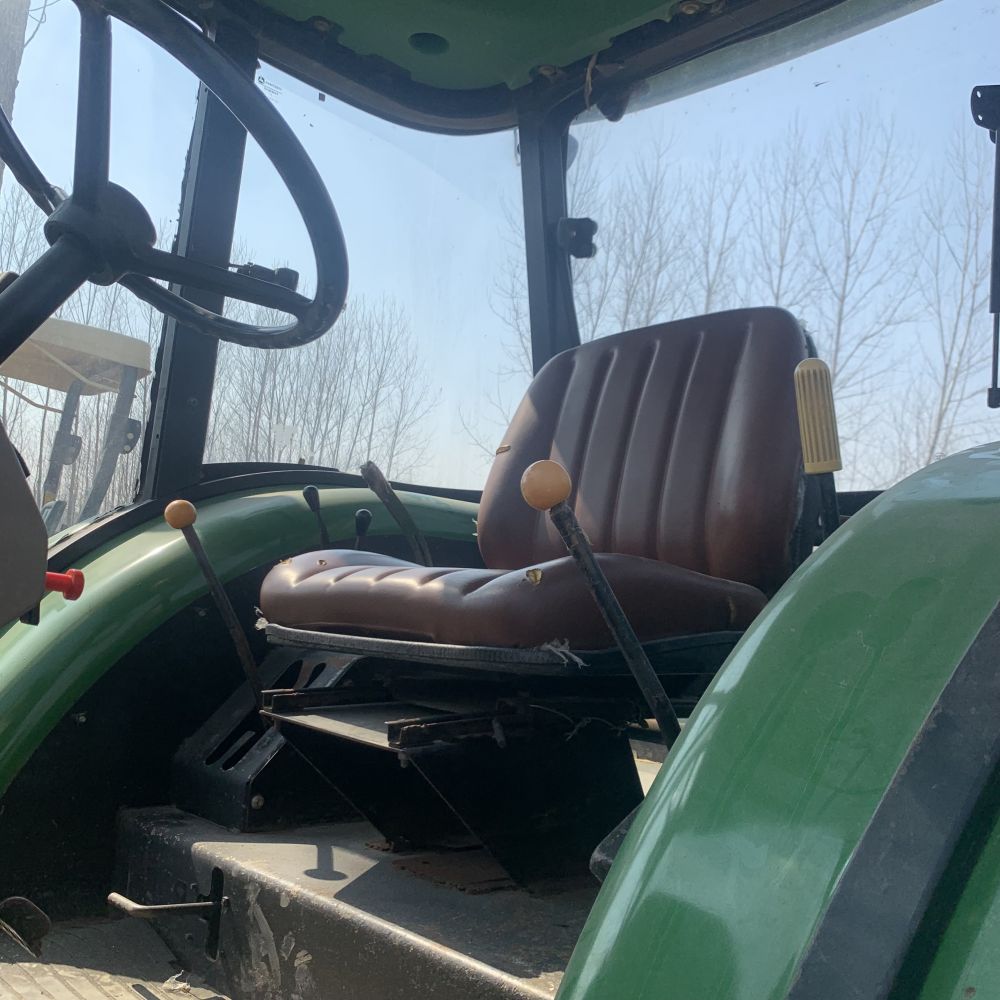

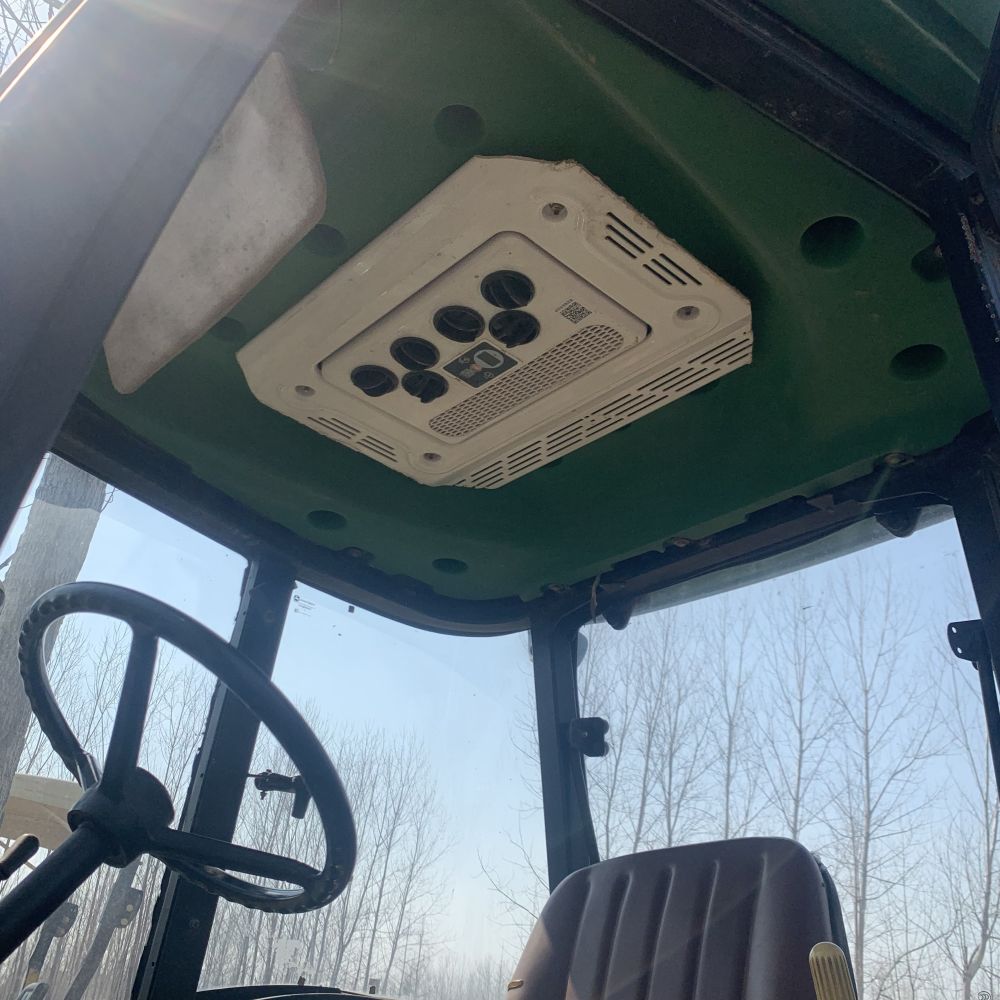

1204 tractor is equipped with a safety cab produced by John Deere
worldwide for wide vision, safety and comfort. Convenient and flexible
tillage depth adjustment mode makes the operation simple and efficient. Equipped with forced lubrication system and safety start switch. The tires can be fitted with anti-puncture tires, eliminating the worry of working in some fields with thorns.
1,
1204 tractor standard with 9 forward gear and 3 backward gear, optional
synchronizer shift, do not stop can smoothly shift, operation more
light and fast, can meet a variety of complex agricultural
requirements. There are many agricultural tools available for selection,
which have better farming effect and higher economic benefit.
2,1204
tractor has a safety start switch device: only put the main gear lever
in neutral position, can start the engine, completely eliminate the
unsafe factors caused by not picking up the gear start tractor.
3,
1204 tractor with forced pressure lubrication system: the lubrication
of the transmission system using forced pressure lubrication. On the
friction surface with large load and high relative speed, a uniform oil
surface protective layer is formed, so that the gear and bearing with
high speed can get better protection, more reliable performance, better
lubrication performance and faster heat dissipation.
4.
1204 tractor has differential lock device. When the differential speed
combined with the separation of the sleeve, the speed of the two wheels
is different, so that the tractor can realize free turning. When the
drive wheel slips on one side, the differential lock connects the left
and right half shafts of the tractor, allowing the rear drive wheel to
get out of trouble by generating more traction on skidding ground.
5,
the use of three-point suspension, class 2 connecting rod, tillage
depth adjustment method can adjust, position adjustment, force position
comprehensive adjustment, the use of fixed pull rod and stability chain
device rear suspension system, suspension rod height adjustment
function, the rear suspension lifting ability is strong.
6, increase the oil radiator and water radiator area, more excellent function.
| producer |
John Deere |
| model |
1204 |
| engine power |
120 HP |
| gear box |
Meshing sleeve, 9 forward gears, 3 backward gears, optional synchronizer shift |
| Maximum lift capacity(The lower suspension point is 610mm) |
≥25 kn |
| Power output shaft power |
102 hp |
| engine type |
LR6A3Z-21 |
| rated speed |
2100 (r/m) |
| type |
Six cylinder, in-line, wet liner, overhead valve |
| Air Intake Type |
turbo charged |
| displacement |
6.49 (L) |
| Cylinder diameter and stroke |
105x125(mm) |
| fuel consumption rate |
≤246g/kw/h |
| compression ratio |
17:1 |
| lubricating system |
pressure lubrication |
| gearbox |
Meshing sleeve, 9 forward gears, 3 backward gears, optional synchronizer shift |
| Maximum tractive force |
≥31 (kn) |
| Min. turning radius |
≤5.45 (m) |
| wheel base |
2636 (mm) |
| ground clearance |
470 (mm) |
| cab |
safe cab |
| weight |
4570 (kgs) |
| dimention |
4730x2185x2760(mm) |
| tires size |
14.9-24/18.4-38 |
