Product Attributes

- Brand Name KAIQIAN
- Model Number TY-Q
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Function Purification Filter
- Structure Vacuum Filter
- Usage used lube oil.turbine oil
- Flow rate null
- Function 10-300 LPH
- Related Keywords turbine oil filtration, turbine oil purification, transformer oil purifier

Description by Manufacturer

TY-Q Oil Lubricant Recycle Machine Steam Turbine Lube Oil Purifier Lube Oil Recycling Machine

Usage

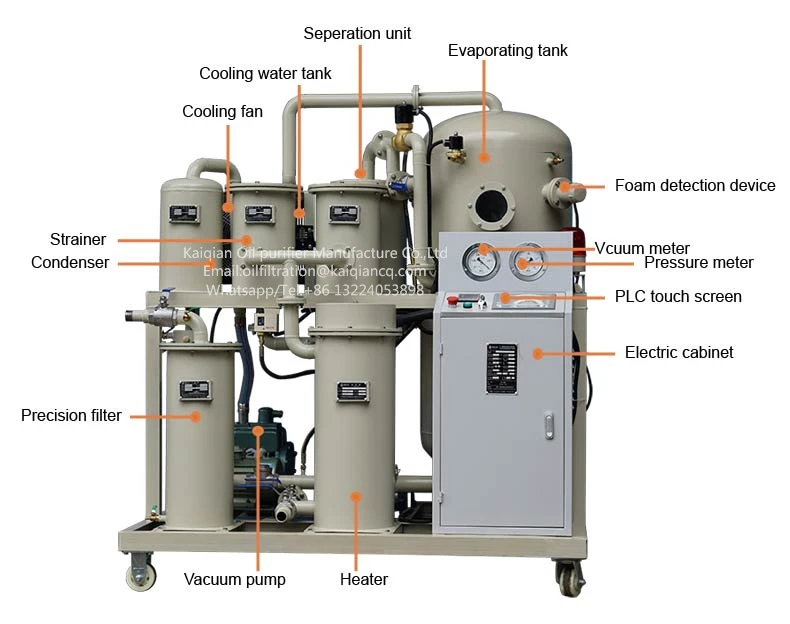

TY-Q series vacuum turbine oil purifier widely used in turbine unit,and hydraulic turbine set,
through on line or off line operation can purify the un-degradation rancid oil ,equipped with vaccum drying separation ,three dimensional atomization ,and precision filtration .After the treatment, the gas, moisture,acid,foaming in the emulsified oil will meet the using standard of new oil.Widely used in electricity, chemical, paper making, and oil plant etc. Can effectively ensure the safe operation of the steam-turbine lubricating system.

FEATURES AT A GLANCE

COMPACT DIMENSIONS
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCEPLC CONTROLER
THREE STAGE FILTER SYSTEM
HIGH VACUUM
Vacuum Defoaming Technology

No	Item	Data
1	Flow Rate	10-300 LPM
2	Mechanical impurities	NO
3	Demulsibility number	≤15 Min
4	Moisture	50-80 ppm
5	Gas content	≤0.1 %
6	Cleanness-degree	≤6
7	Filter precision	5-10 um

pumps

Features

This device is aimed at the turbine oil lubrication system dilute oil station and fuel tank - dehydration, degassing, impurity removal ,it can improve the lubrication system cleanliness.
.Turbine oil vacuum oil filter maximum capacity to meet more than 200 tons of single lubrication system purification treatment.
.The turbine oil vacuum filter can effectively remove not only 100% free water and 99.9% dissolved water but also100% free gas and 98% dissolved water.The treated oil can meet the national standard .
Treated Oil  ↓↓↓↓

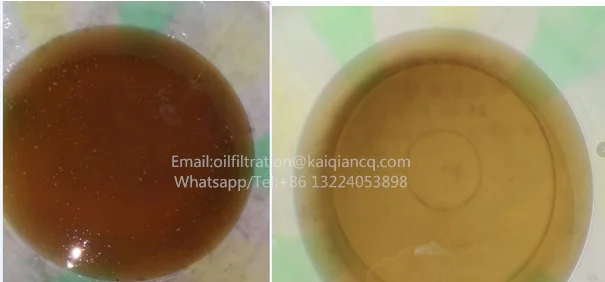

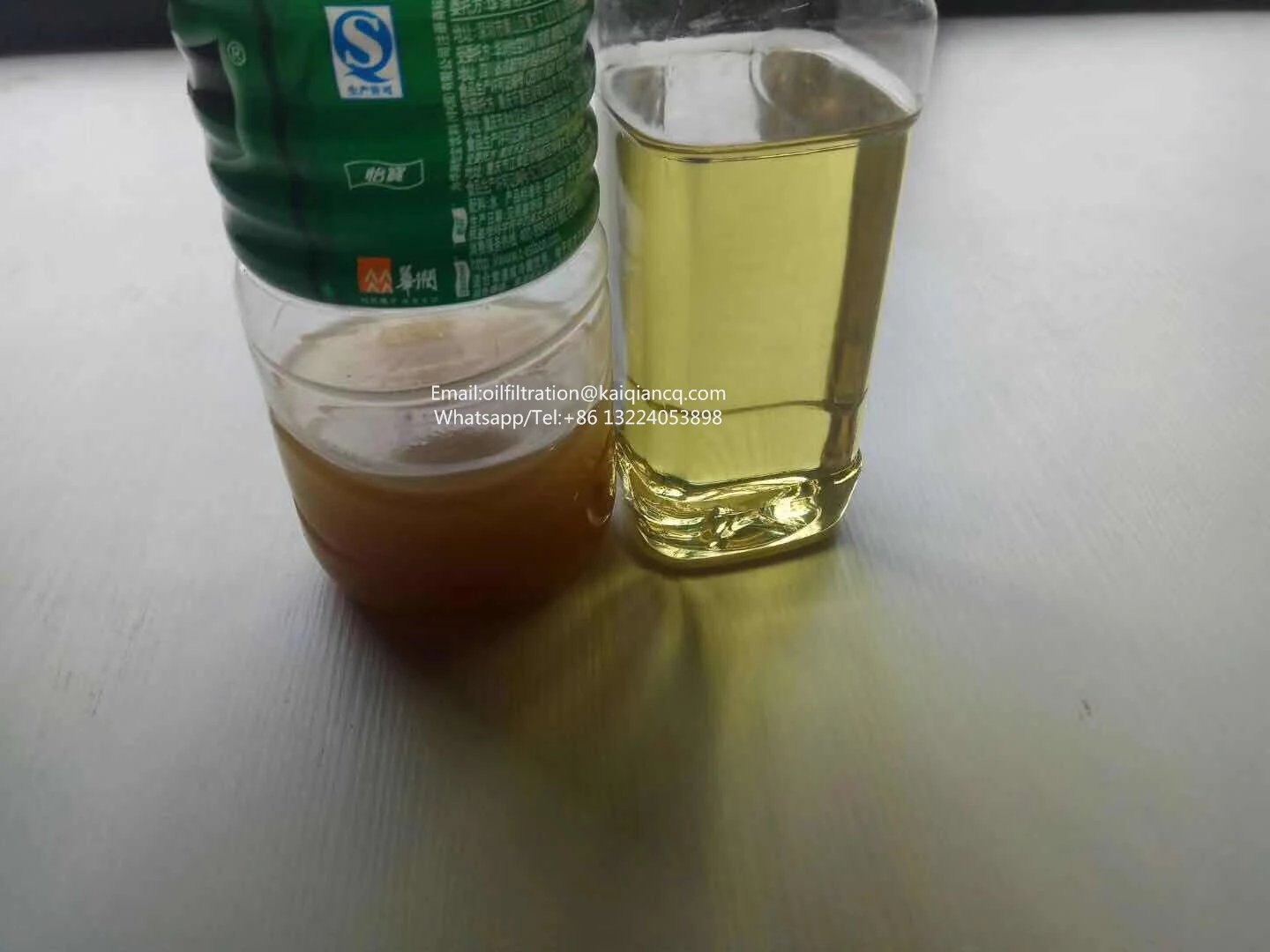

Before  & After

Before & After

Item	Unit	TY-Q20	TY-Q30	TY-Q50	TY-Q80	TY-Q100	TY-Q150	TY-Q200	TY-Q300
Flow Rate	L/min	20	30	50	800	100	150	200	300
Working vacuum	Mpa	－0.08～－0.096
Working pressure	Mpa	≤0.5
Working temperature	℃	≤20～80 (Adjustable )
Power supply	kw	380V50Hz (Customnized)
Heating power	V	24	30	36	42	48	54	60	72
Total power	kw	26	33	39	46	53	66	74	84
Diameter of intel&outlet	mm	Φ25	Φ32	Φ32	Φ42	Φ42	Φ48	Φ48	Φ60
Weight	Kg	385	450	550	600	800	850	1000	1200
Dimension	L	1350	1400	1450	1500	1550	1550	1700	1850
	W	850	950	1100	1100	1150	1150	1450	1450
	H	1600	1650	1700	1700	1750	1800	1850	1910

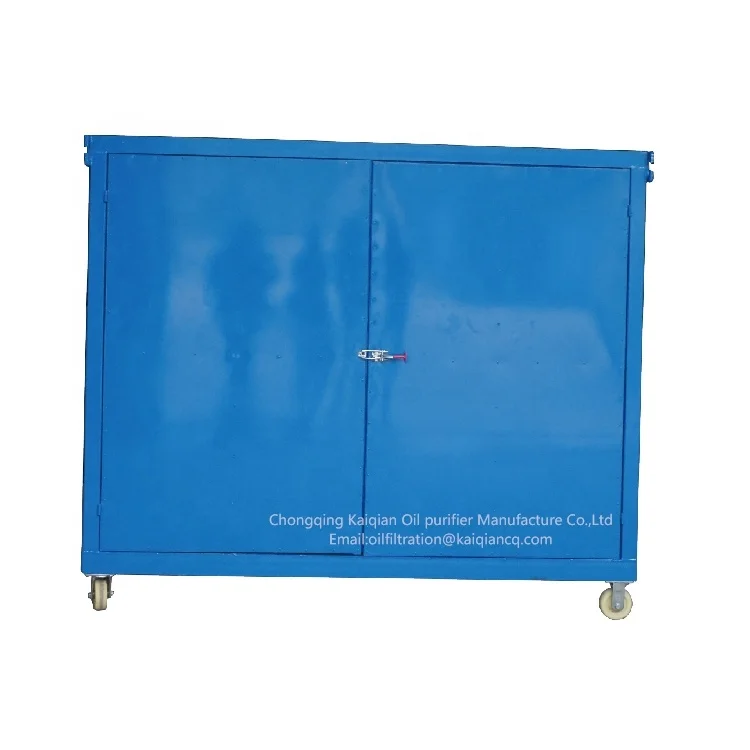

Enclosed Type lubricant Oil filtration

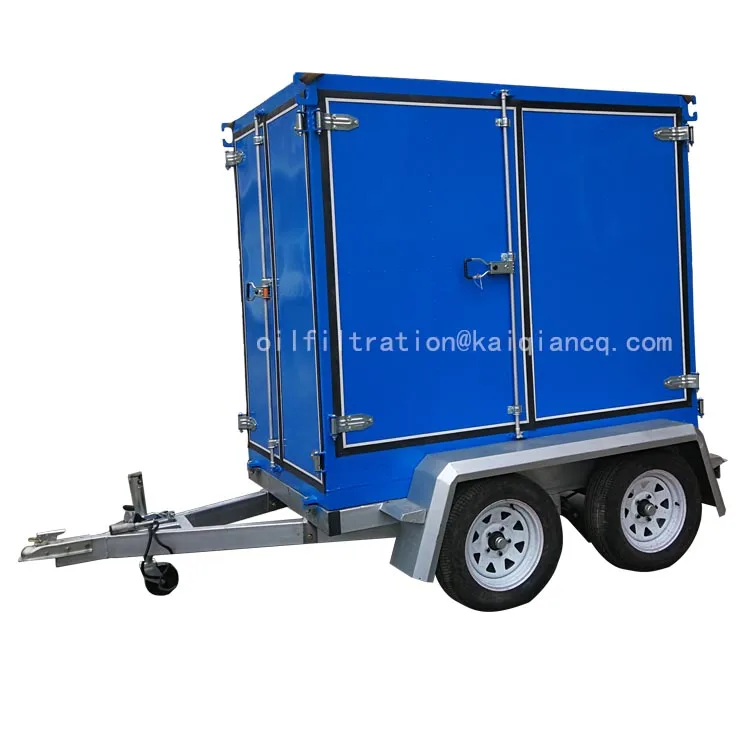

Trailer Type Oil Purifier Machine

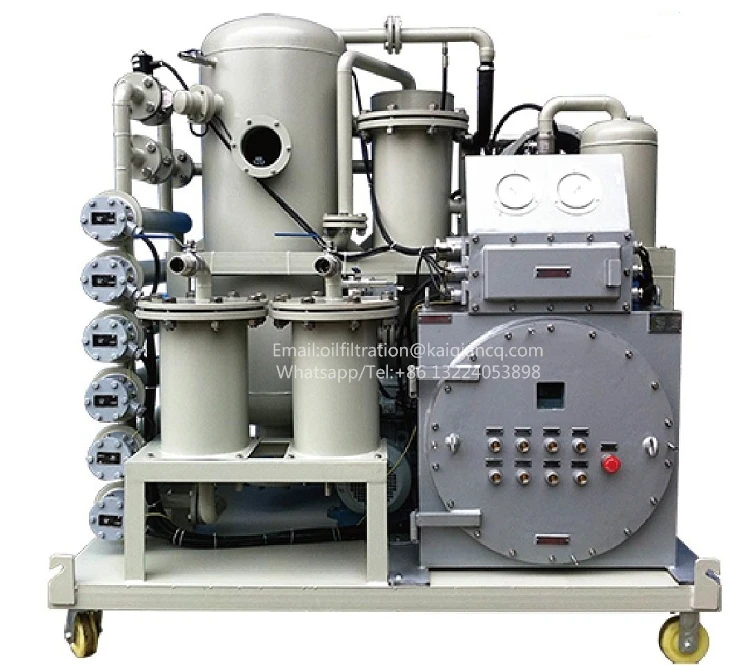

Explosion proof vacuum oil recycling

FAQ

1.What is the usage of a vacuum oil purifier?
Dehydration, degassing, impurity removal of old oil, and extend oil life.

2.Does your process use chemicals or additives?
A: No, it is pure -physical technology.

3.What is consumable?
There is no consumable except filters.

4.How often do clients need to change filters?
The replacement time of the filter is determined by the pollution degree of the oil. The mechanical impurity is less than 3%. Generally, the oil filtered by the filter is replaced once within 100 tons

5.What is the material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304, it can be customized according to your request)

6.Can any of the products be customized?
Yes, we can customize the color of the machine, industrial power, and your logo on the machine, the pumps, electrical elements, PLC, touch screen LCD controller, trailer design etc .

7.What is the flow rate you can provide?
10-300 LPM


8.Who can i get contact for more infos？
Email:oilfiltration(at)kaiqiancq.com ; Whatsapp/Tel:+86 13224053898

Price

Price US$ \ 4500 ~ 25000 / Set

Packaging & Shipping

- Packing1 pcs per wooden box
- Delivery Lead Time20-30 working days
- Minimum Order 1 Set
- Supply Ability50Sets per Month
- Total quantity in Stock1 - 10
- Delivery PortChongqing Shanghai
- HS Code8421299090
- Shipping Career

Product Image

Vacuum Lubricating Oil Purifier Systems Manufacturer Portable Lube Oil Filtration System

Vacuum Lubricating Oil Purifier Systems Manufacturer Portable Lube Oil Filtration System 2

Vacuum Lubricating Oil Purifier Systems Manufacturer Portable Lube Oil Filtration System 3

Vacuum Lubricating Oil Purifier Systems Manufacturer Portable Lube Oil Filtration System 4

Vacuum Lubricating Oil Purifier Systems Manufacturer Portable Lube Oil Filtration System 5

Vacuum Lubricating Oil Purifier Systems Manufacturer Portable Lube Oil Filtration System 6

Vacuum Lubricating Oil Purifier Systems Manufacturer Portable Lube Oil Filtration System 7

Turbine Oil Filtration Related Products

Company Profile

About Chongqing Kaiqian Oil Purifier Manufacture Co.,Ltd

Membership Free member
Registration Date2020.05.13
Country/RegionChina
CityChongqing
Contact Silva(Ms.)

Chongqing Kaiqian oil purifier manufacture Co.,Ltd was located in Shapingba district, Chongqing,China. It is a high-tech enterprise which was specialized in researching, designing,producing ,selling and exporting oil purifier equipment for different kinds of waste oil like turbine oil ,hydraulic oil ,transformer oil ,used motor oil ,tire oil and plastic oil.
We own a group of professional oil purifier experts and engineers.Under the guidance of ISO9001 quality certification,we conduct our devices in accordance with the machinery industry standard JB/T5285-2008 and electric power standard DL/T521-93.We have developed dozen series and models of oil purifier successfully, with features of high quality, reliable performance and advanced techniques.
