Valid Magnetics Displacement Correction Device / Web Guide for Masks Production Machines Automation

Add to Basket Share to :

Price

US$ 500

Min Order Quantity1 Piece
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Valid Magnetics Limited
Membership Free member
Registration Date2014.06.11
Country/RegionHong Kong
CityFo Tan
Contact Matthew(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name ValidMagnetics
- Model Number EPC
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Mask Production, Mask Machines, Correction Device, alignment device, Woven, Web Guide

Description by Manufacturer

Woven fabrics are frequently displaced when feeding into the machine to cause failure in production and the waste of materials.

With our unique and own developed correction device which is specialized for mask production machines, the pass rate and efficiency are greatly improved!

Features:
- Rapid response by high speed CPU
- Support Ultrasonic sensors, opto sensors to deal with different materials
- Top quality of bearing with high precision (+/- 1mm) and low noise
- Durable and long working life
- Easy to be installed

Specifications:

Voltage	DC24V, 48W power supply
Control accuracy	1mm
Control method	Closed-loop control
Control response	0.01sec
Environment	0-40

Three sizes available:
EPC260

Sensor Specifications:

Tracing method	Edge tracing
Power input	DC10~30V
Output signal	Analog 0-5V double channel NPN type
Testing scope	8mm(+/-4)
Adjustable accuracy	(+/-0.02mm)
Testing method	Opto-electrical sensing
Wavelength / Response frequency	100KHz / 1K HZ
Protection level	lp54
Weight	250g
Environment	(-10 to 80 C, RH90%)
Outcase material	Aluminium alloy
Material calibration	Necessary

Simple Connection Diagram:

Price

Price US$ 500 / Piece

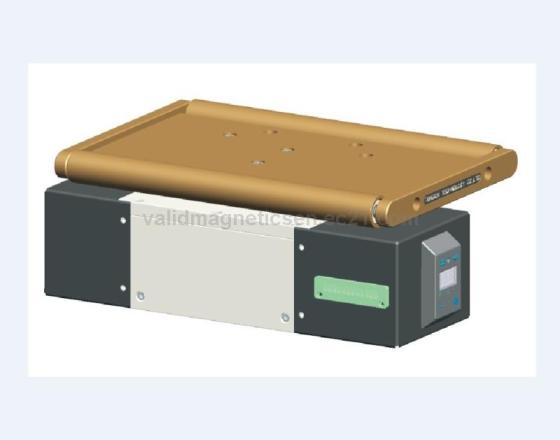

Product Image

Valid Magnetics Displacement Correction Device / Web Guide for Masks Production Machines Automation

Valid Magnetics Displacement Correction Device / Web Guide for Masks Production Machines Automation 2

Valid Magnetics Displacement Correction Device / Web Guide for Masks Production Machines Automation 3

Product Video

Valid Magnetics Displacement Correction Device / Web Guide ...

Mask Production Related Products

Company Profile

About Valid Magnetics Limited

Membership Free member
Registration Date2014.06.11
Country/RegionHong Kong
CityFo Tan
Contact Matthew(Mr.)

Valid Magnetics is a Hong Kong based technology company specialized in testing, measuring and controlling products or systems in torque, tension, load-force-weight field. We have our own manufacturing facilities and R&D department for designing, improving and producing the latest products and obtain several patents for the contribution and innovation in this area. We are the leading manufacturer of motor test equipment, hysteresis brakes / clutches and electronic tension devices in Asia with hundreds of local and oversea customers in over 20 countries.

Selling Categories

- Manufacturing & Processing Machinery >> Other Manufacturing & Processing Machinery

Keywords

hysteresis brake , Hysteresis Dynamometer , hysteresis clutch , tensioner , tension meter

Registration Date	2014/06/11(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2006
Employees total	6 - 10
Annual revenue	USD 100,000 - 500,000

Contact Information Order Credit Report

Company	Valid Magnetics Limited
Address	Room 604 , Leader Industrial CenterFo TanSha TinHong Kong
Phone	852 - 852 - 62908202
Homepage	http://www.validmagnetics.com
Contact	Matthew
