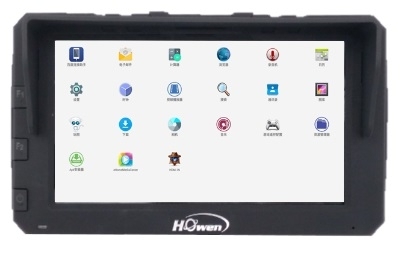

Model | Hero-MDT-AT5 | |
Hardware | ||
CPU | Quad core ARM Cortex-A17, 1.8GHz | |
SOC | RochChip RK3288 | |
RAM Memory | DDR3 2GB | |
Storage | EMMC 8GB/16GB | |
Touch screen | Capacity Screen: 7’’ 1024*600 5mm LCD screen Resistance Screen: 7’’ 800*480 5mm resistance LCD screen; | |
Storage | Support SD Card, Max 128GB | |
USB Device | 2 x USB 2.0 (Micro USB) | |
USB Host | 1 x USB Host 2.0 (optional) | |
UART | 2x RS232 | |
RS485 | 1 pcs half duplex (optional) | |
Output control | 1 x 12V control | |
Input | 3 x input status detection | |
Microphone | 1 cha built-in microphone | |
Speaker | Built-in 8R/1.5W size, 32mm. (optional audio output for external amplifier, Built in speaker will mute when external audio is on.) | |
Video input | 2 ch 720p (1 Megapixel) input. 2ch recording. | |
Video output | optional | |
3G/4G | Built-in. 3G/4G module optional. | |
3G/4G Antenna | built-in antenna | |
GPS Antenna | built-in active GPS antenna, SMA external active GPS antenna optional | |
Wi-Fi | Built-in | |
Bluetooth | Built-in | |
Wi-Fi Antenna | Built-in antenna | |
Software | ||
OS | Android V5.1 or Ubuntu 14.04 | |
Audio format | MPEG-3, WMA, etc. | |
Video format | MPEG-4, AVI, RMVB, etc. | |
Picture format | JPG, BMP, GIF, etc. | |
Text format | TXT | |
TTS voice | Support | |
Image hard decoding | H.264/H.265 encoding/decoding | |
Navigation | Support Android navigation software. Support pinch to zoom (capacitive screen) | |
SDK | Test APP and source code for programming guidance | |
Communication | ||
3G/4G | Support 3G and LTE modules optional. (PCI e mini card). Default: WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 8, all bands with diversity Optional: WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 2, Band 5, all bands with diversity GSM/GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz | |
DATA | GPRS: UL 85.6 kbit/s; DL 85.6 kbit/s EDGE: UL 236.8 kbit/s; DL 236.8 kbit/s WCDMA PS: UL 384 kbit/s; DL 384 kbit/s HSPA+: UL 5.76 Mbit/s; DL 21.6 Mbit/s | |
GSM Voice | optional | |
Sensitivity | -110dBm | |
3G antenna gain | 3.3 dB | |
GPS | ||
GPS module | u-blox 6 | |
Receiver Type | L1 frequency band, C/A code, 22 tracking | |
Sensitivity | -165dBm (tracking), -148dBm (Acquisition) | |
GPS antenna gain | Built in antenna 1.5dB, external antenna: 3dB | |
Accuracy | ≥15m(position),0.1m/s(velocity) | |
Acquisition Time | 36s (cold start) 33s (warm start) 1s (hot start) <1s (Re-Acquisition) | |
Upload frequency | 1 Hz | |
General | ||
Power | 8-32V | |
Power consumption | <6W | |
Dimension | 29*123*193mm | |
Working temperature | -20℃~ +70℃ | |
Storage temperature | -40℃~ +80℃ | |
Protection | IP64 | |
Vibration test | 5-300HZ, 2G |
