Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Medical Ultrasound Instru, Professional Medical Devi

Description by Manufacturer

Essential details

Place of Origin:: Jiangsu, China

Brand Name:: Superstar Medical

Model Number:: USM10

Power Source:: Electric

Warranty:: 3 Year

After-sale Service:: Online technical support

Material:: Metal, Plastic

Quality Certification:: CE

Instrument classification:: Class I

Safety standard:: None

Product name:: Vet Ultrasound Machine

Size:: 607*976*1458mm

Weight:: 90kg

Application:: Animal Health Diagnosis

Interface:: HDMI, RJ-45, Power, USB*4, DICOM

Display:: 21.5 inch color LED display, 13.3 touch screen

Keyword:: vet ultrasound system

Product Description

Application:

For bovine, ovine, equine, canine, feline and other domestic animals, animals for experiments, wildlife, and some aquatic animals.
It is applicable for the inspection of variousanimals' clinical abdomen, thoracic cavity, heart, tendon, small organs, eyes,
reproduction system, etc.

·Newly designed ergonomic console ·Stereo audio system ·Multiple Languages support, EN/RU/SP/PT/ARB/VN/ID/DE/FR Carotid artery intima measurement thickness(IMT）
Coherent Contrast imaging（CCI）
B/C/D Real-time three synchronous imaging
Power Doppler imaging（PDI）
Direct power Doppler imaging（DPDI）
Tissue Doppler imaging（TDI）
Strain rate imaging (SRI)
Panoramic imaging
Deflection imaging
Trapezoidal imaging
Free hand 3D

Weight	90kg
Size	6079761458mm
Interface	HDMI, RJ-45, Power, USB*4, DICOM
Display	21.5 inch color LED display, 13.3 touch screen
Display mode	B, BB, 4B, M, BM
Color doppler display mode	B/C, B/C/M, B/POWER, B/C/PW
Language	CN/EN/VI/DE/FR/ES/RU/AR/PT/ID
Imaging	Carotid artery intima measurement thickness(IMT） Coherent Contrast imaging（CCI） B/C/D Real-time three synchronous imaging Power Doppler imaging（PDI） Direct power Doppler imaging（DPDI） Tissue Doppler imaging（TDI） Strain rate imaging (SRI) Panoramic imaging Deflection imaging Trapezoidal imaging Free hand 3D
Obstetric measurement	Bovine(BTD, BUD), Equine(EGSD、ESD), Swine(HLA、SLA), Ovine(SCRL), Canine(HD、BD、GSD、CRL), Feline(HD、BD)

Details Images

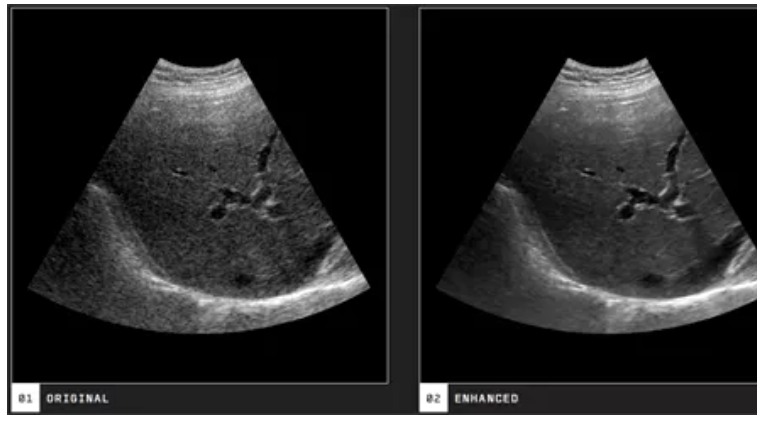

Speckle Noise Removal Technology

Shooting and extracting noisy ultrasound images from multiple spatial dimensions, and performing point-to-point intelligent recognition of noisy images in each spatial dimension to obtain the organization information of the image; the organization information in each spatial dimension is pixels classification of point region attributes, using local geometry to divide pixels into pulse regions and edge detail regions; according to the classification of pixel points, speckle noise suppression is performed on the noisy tissue information in each spatial dimension to obtain a single-dimensional denoised ultrasound image; a
single-dimensional denoised ultrasound image of each spatial dimension is synthesized into an ultrasound denoised image.

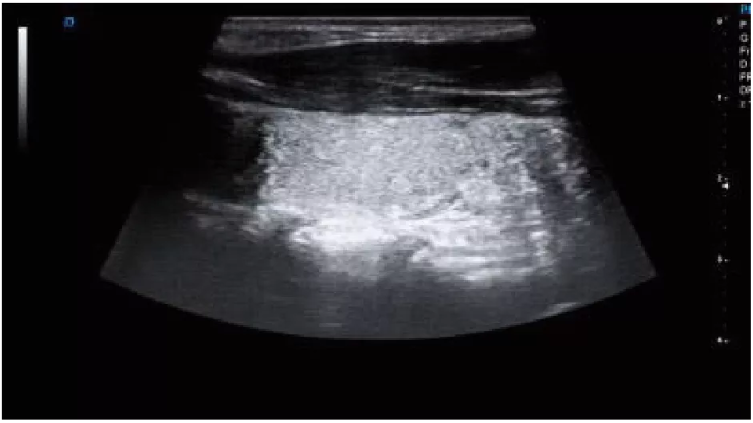

Real-time Wide-field Imaging

Expand the scanning field of view and observe the image information of large lesions in real time; it has a picture-in-picture zoom-in function, an adaptive cropping function, and intelligent jitter suppression technology.

Omni-directional Adjustable M-type

The Omni-directional adjustable m-type is angle-corrected, compared to the traditional m-type, which can obtain more and more accurate information about the various structures of the heart, which is conducive to better observation of the size of the heart cavity and the phased motion of the wall abnormal conditions, especially for difficult patients due to the special location of the heart, can obtain accurate measurement data and information.

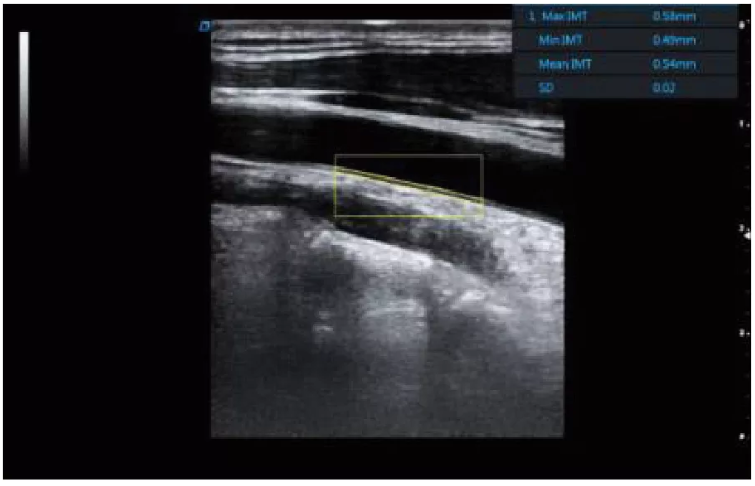

IMT Automatic Measurement of Vascular Intima-media

The thickness of vascular intima-media is an important indicator for predicting the risk of cardiovascular disease in animals without clinical symptoms. Automatic intima-media measurement technology provides you with an effective detection tool. It can automatically measure the thickness of the intima-media in the near-field and far-field of the blood vessel, and automatically optimize the measurement angle.

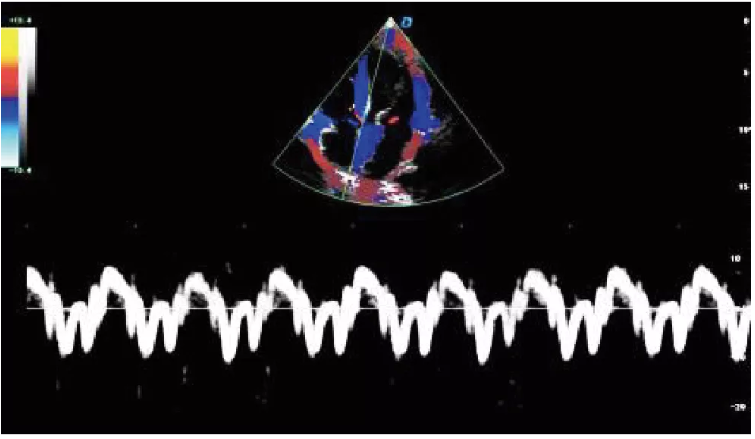

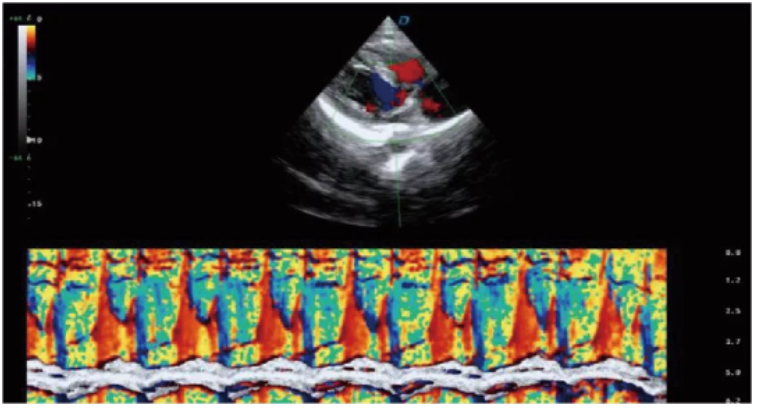

Tissue Doppler Imaging (TDI)

Tissue Doppler imaging is a new technique to obtain information about the speed, direction, time, and other aspects of myocardial tissue movement in order to analyze heart function more intuitively. TDI can quantitatively evaluate myocardial movement observe the speed of movement of different parts of the heart, determine whether there are local lesions, and evaluate early diastolic function.

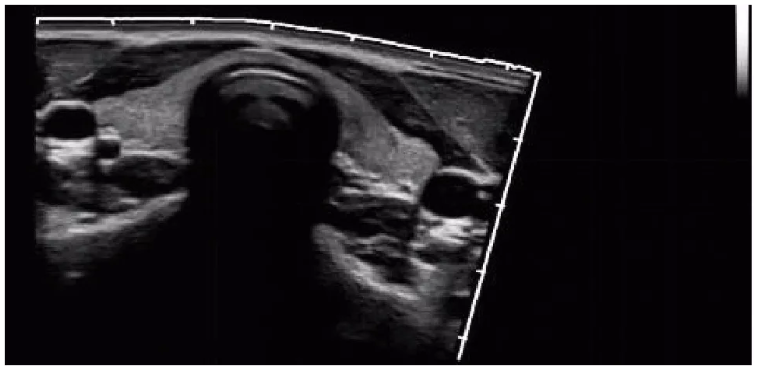

Trapezoidal Imaging

The line data of the linear array probe is transformed into a trapezoidal image through coordinate transformation and interpolation, which is a kind of extended imaging.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
