Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords AI patrol robot, autonomous mobile robot, unmanned inspection robot

Description by Manufacturer

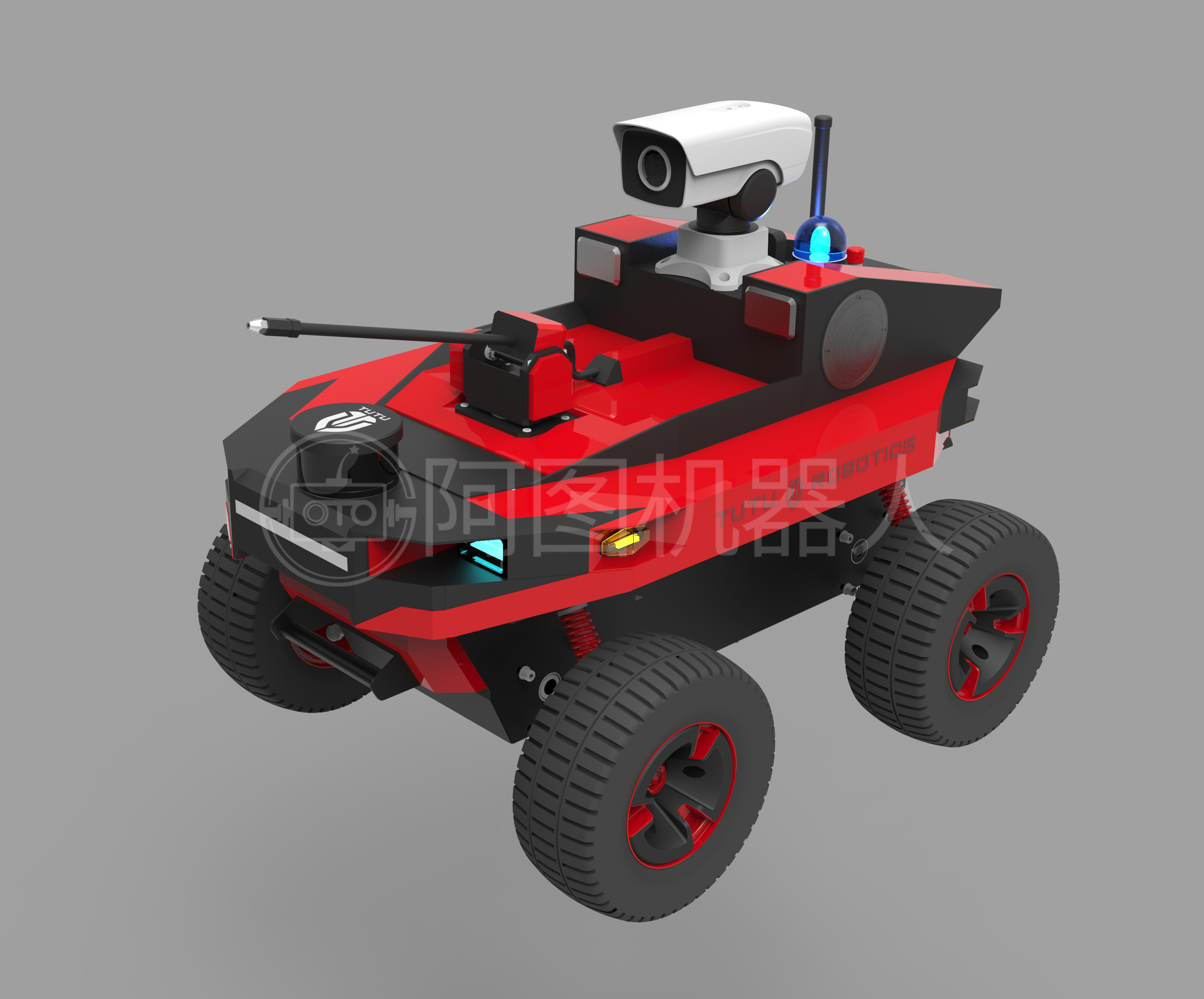

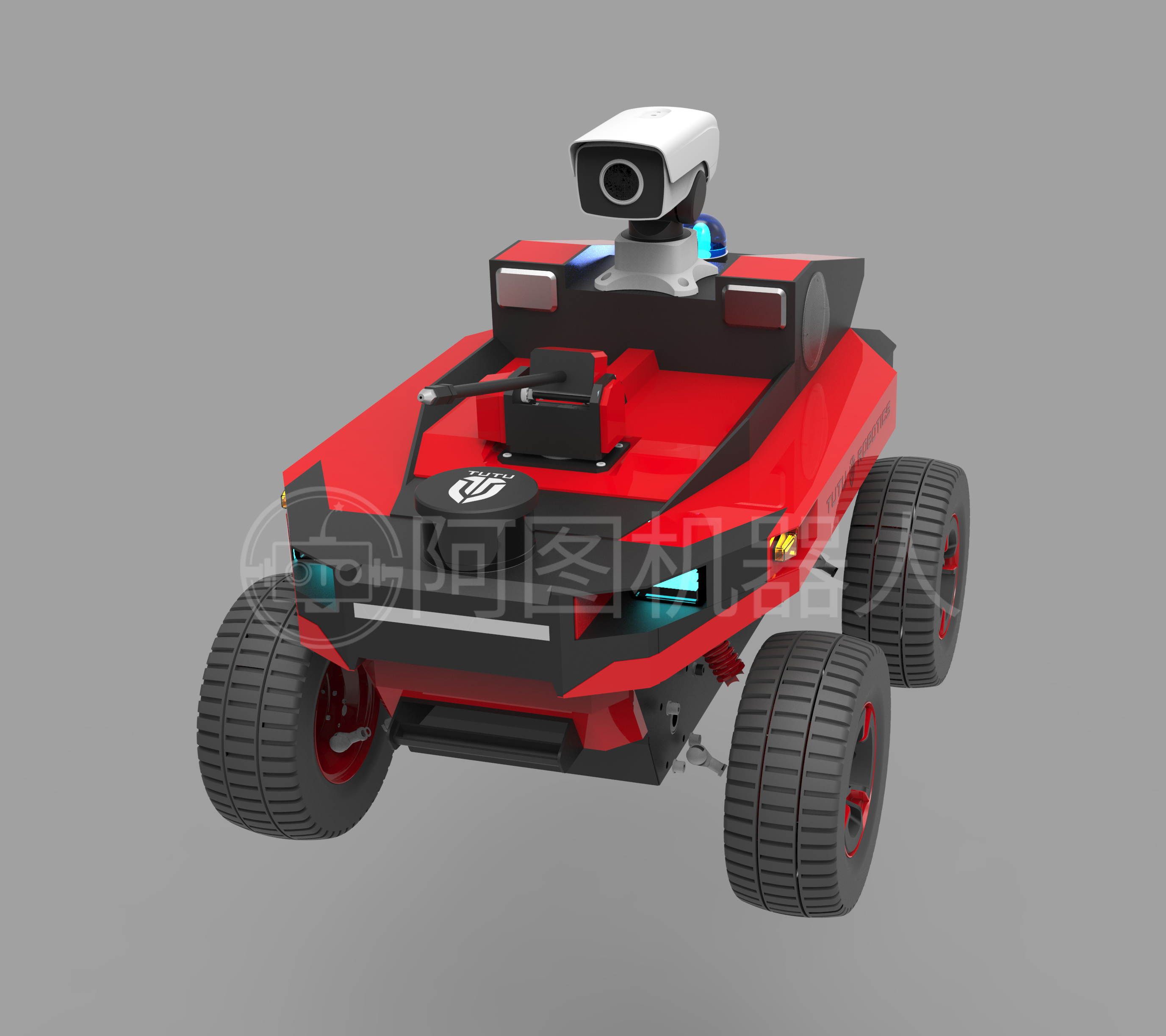

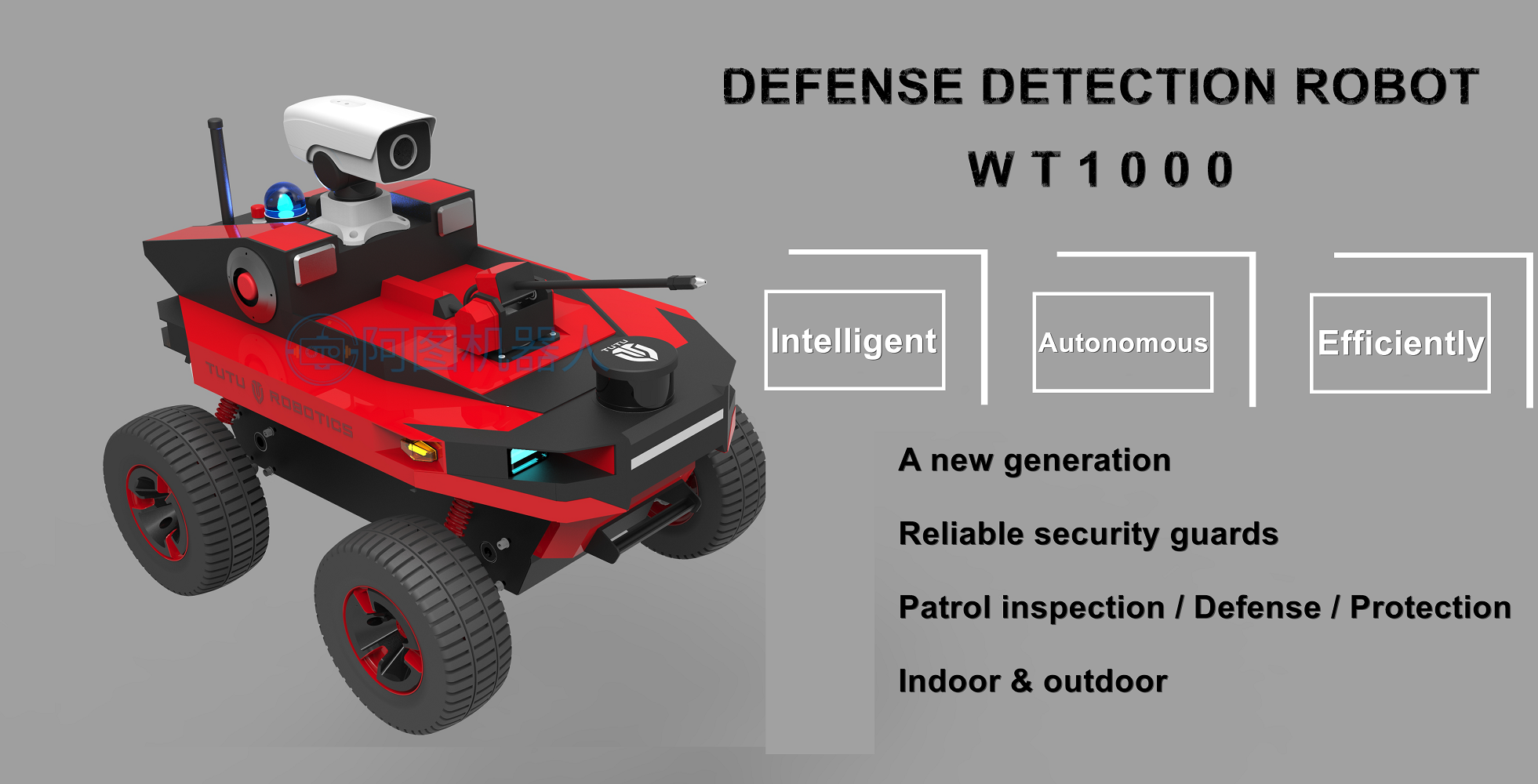

W T 1 0 0 0   provides users with intelligent and efficient mobile defense and investigation services.
   The whole vehicle adopts independent damping suspension design to better achieve shock absorption.

   The robot integrates many functions, such as strong lighting, warning and shouting, audible and visual electric bell, liquid jet, biometric recognition, self-learning of environmental map, regular route cruise, obstacle avoidance, battery replacement and so on, equipped with high-capacity battery and high torque power, it provides super long endurance and strong power for the equipment.

 It is a reliable safety guard.

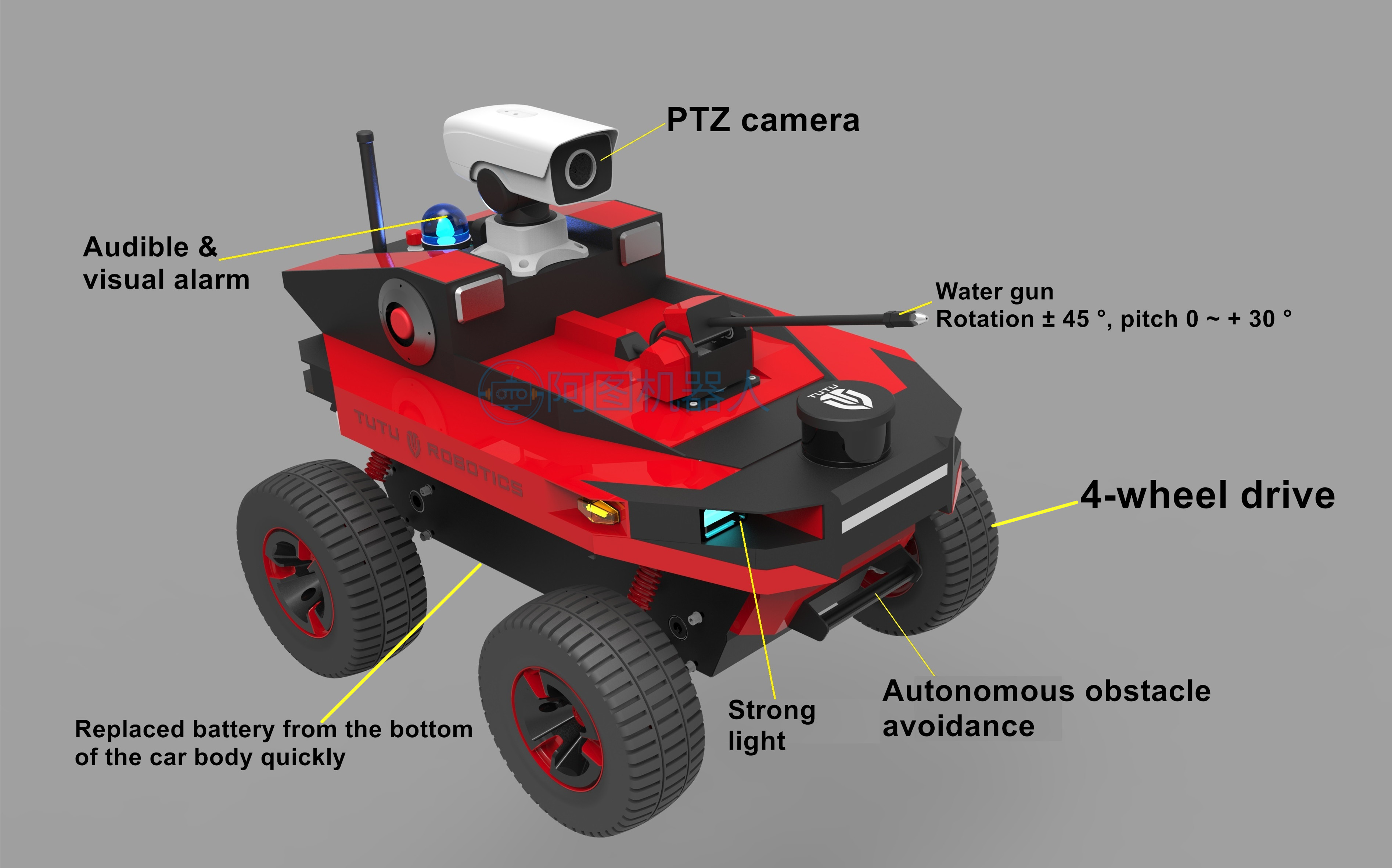

Features:

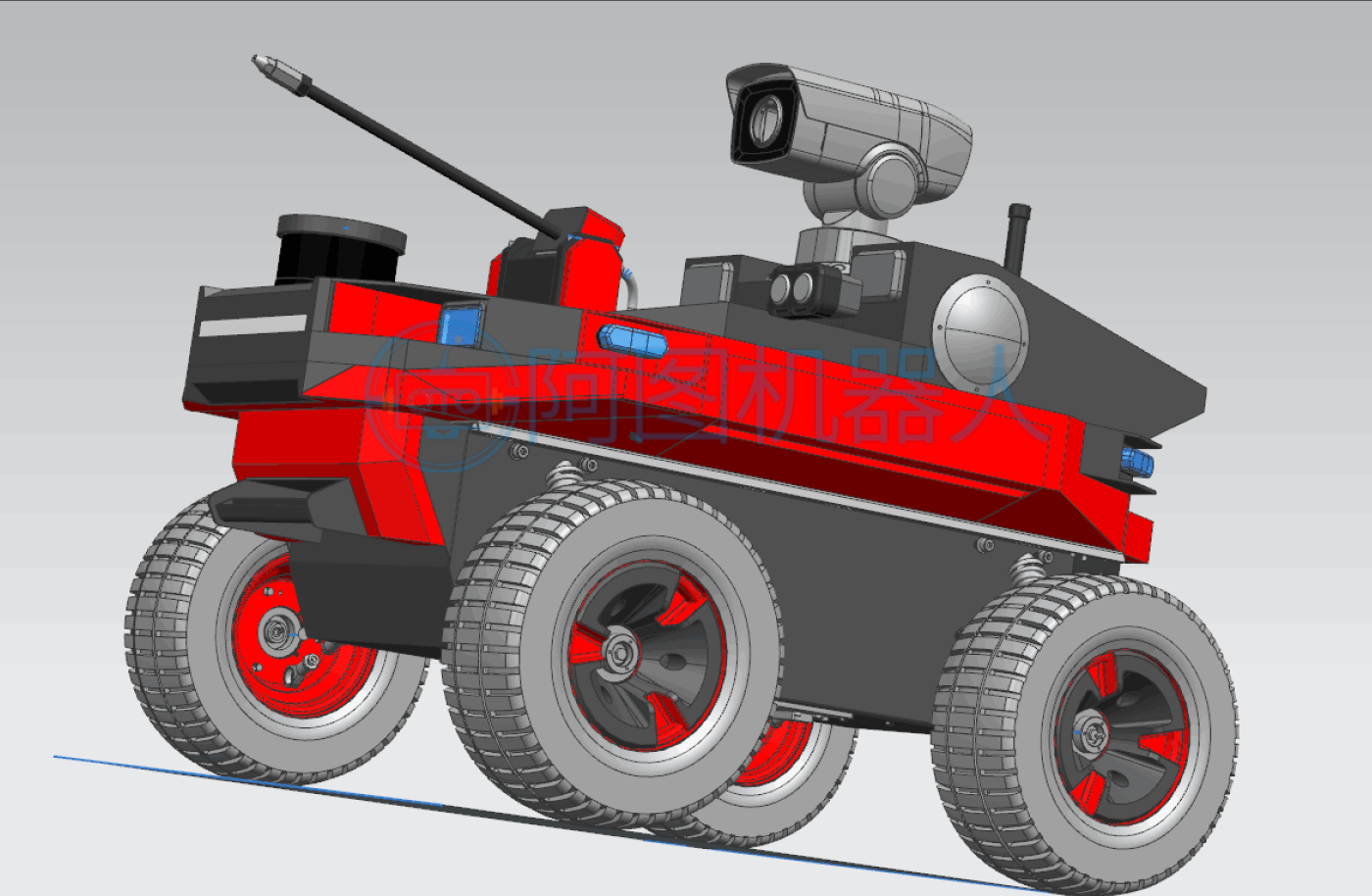

◆Use 4-wheel drive, and adopts double wishbone independent suspension◆ Equipped with obstacle avoidance function in the front end, which can avoid collision when encountering obstacles
◆ The turning radius is very small, which can realize in-situ turning
◆ Can quickly replace tires of the same specification and different purpose, which is convenient for use in the field and special environment
◆ The whole vehicle is relatively compact. Can easily enter the ordinary elevator room through a single door, which can realize the rapid switching between indoor and outdoor environment
◆ The defense system can turn ± 45 °, pitch 0 ~ + 30 °, and with high-pressure water pump, it can attack the enemy at 7 ~ 10 meters in an ideal environment
◆ The functions of warning and shouting, audible and visual electric bell and strong light lighting can frighten the enemy
◆  Biometric function can intelligently and quickly distinguish between the enemy and ourselves.
◆  The self-learning of environment map and the cruise function of regular route can better and faster adapt to the environment and achieve the optimal defense and investigation effect

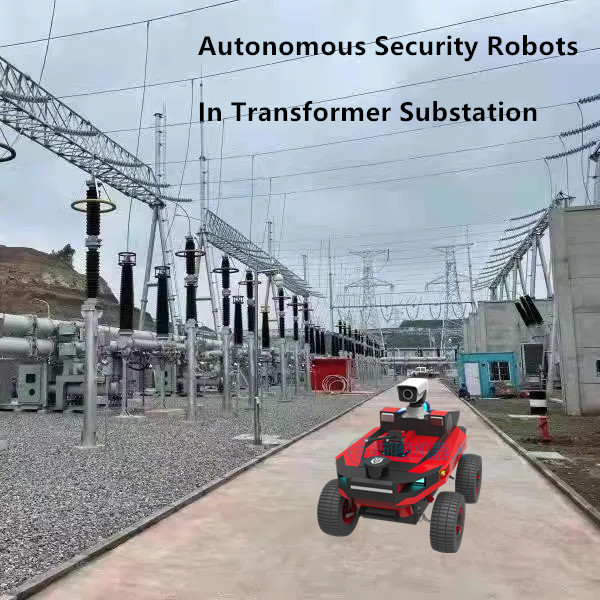

Application: Autonomous security robots work in transformer substation, chemical plant, house, public garden.
    When a intruder is found, security robot will send a voice warning to the intruder, drive away the intruder and turn on the light. If the intruder is still not eliminated, the robot will automatically adjust the angle and spray the vehicle body solution to the intruder.

Technical Datas:

Item	Specifications	Item	Specifications
Power	800W	Working ambient temperature	-5℃~45℃
Weight quality	77kg	Suspension system	Front and rear double wishbone independent suspension damping
Mini turning radius	In-situ rotation	Driving form	4 wheel independent drive
Operation speed	0～1.7m/s	Max climbing ability	30°
Working hour	Normal temperature 6H	Charger	AC220V independent charger
Charging time	4~5h	Communication interface	WIFI 2.4G
Remote control function	Yes	Protection grade	IP65

Dimension	Dimension	1016740750mm
Dimension	Mini ground clearance	100mm
Material	Suspension	Aluminum alloy
	Body	Steel plate
	Tire	Quality rubber
	Surface treatment	Spray
Battery	Type	Lithium battery
	Capacity	50AH
	Pressure	24V
Injection system	Injection angle	Rotation：±45°
	Injection angle	Pitch：0~+30°
	Injection distance	7~10m
	Pump pressure	5.5Kg

Tire parameters
Width	120mm	External dia	310mm
Type	Hollow tire	Tire pressure

Camera parameter
Pixel	8 megapixels	Protection grade	IP66
Night vision	Yes	Fill light	Yes

Function 1: Autonomous Navigation patrol

     Equipped with high-performance 16 line radar and slam technology to build the patrol scene, it can conduct autonomous navigation patrol according to the set route. During the patrol, it can independently identify and avoid obstacles, monitor and identify hazard sources, and make early warning and expulsion in time.

Function 2: Rapid security management

      Patrol map can be quickly managed through upper computer; The establishment and deletion of patrol map can be realized; Modification of patrol route and other operations

Function 3: Intelligent security

     When an abnormality is detected, it will mobilize its own PTZ camera to identify the abnormality. After it is determined as a hazard source, start the intelligent security function.
  1)Audible and visual alarm: the equipped audible and visual alarm sends out bright red light and 110dB voice alarm sound to warn of
danger source intrusion.

  2)Voice warning: send voice warning to the hazard source through the equipped voice system, try to drive away the hazard source and
turn on the lamp to illuminate the hazard source.

  3)Drive off system: if the hazard source is still not eliminated after voice drive off. The Smurf turns on the drive off system,
adjusts the angle of the water gun, and sprays the solution carried on the vehicle body to the hazard source

Function 4: Green environmental protection

     Equipped with 50000ma high-capacity lithium battery; It can support long-distance cruise; Support 15A fast charging; The battery can be quickly disassembled and replaced for easy maintenance.

Function 5: Four wheel drive, strong power

     With four-wheel drive, the driving capacity is more powerful. Walk more smoothly and quickly. It can solve the security patrol work of indoor and outdoor scenes.

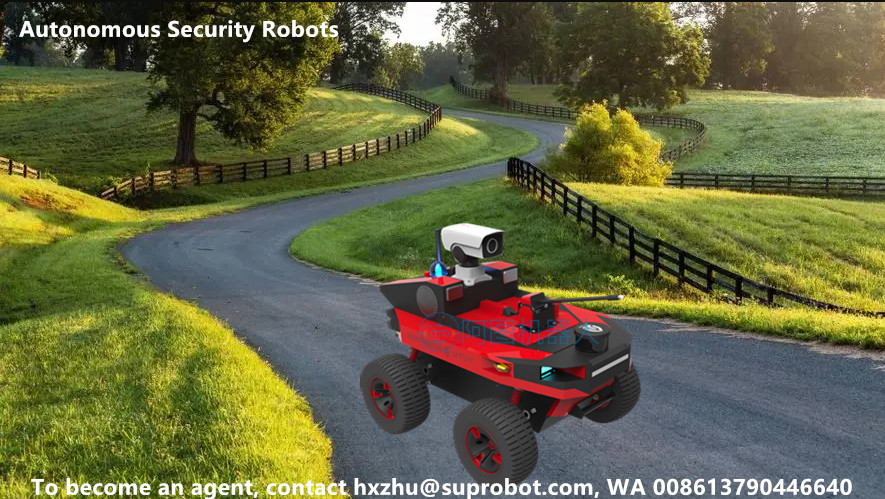

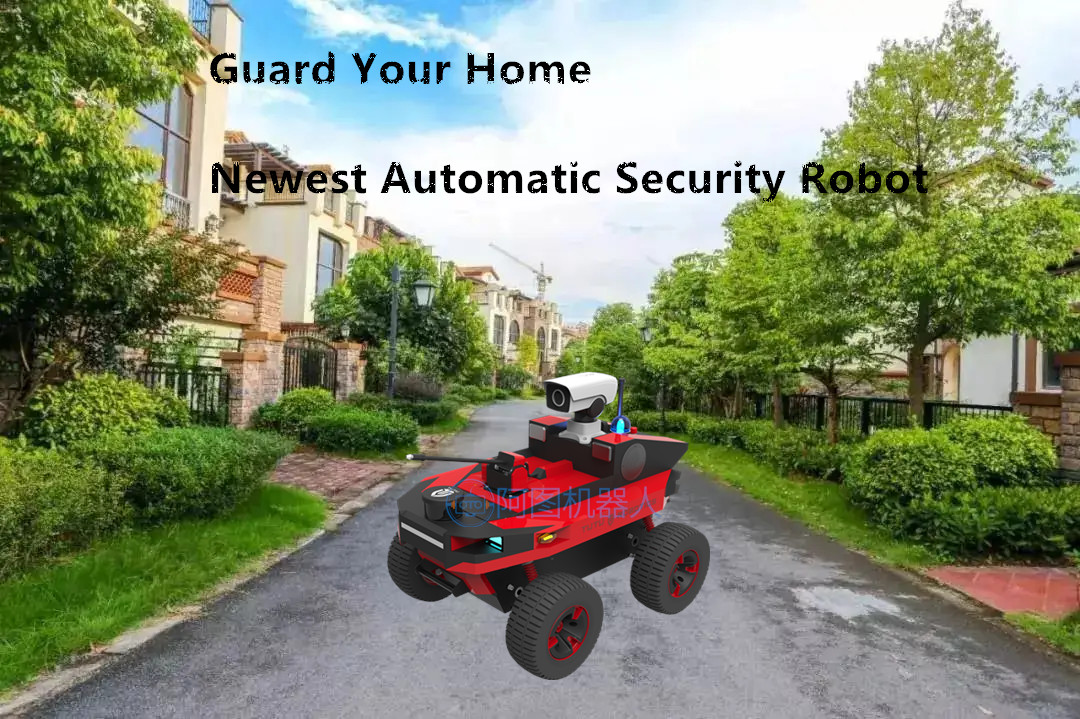

Suburban home security

   Country homes are often left with no one at home for longer periods of time. Since they often remain unattended for most of the day, their integrity is usually provided for by a security system installed inside the house. However, using outdoor security sensors can become complicated by possible false alarms due to falling branches, movements of wild animals, and changes in weather conditions. Using them at sites where there are no security officers nearby often requires regular security patrols due to false alarms of an outdoor security system.

    A mobile security robot can significantly reduce the number of false alarms investigated by security patrols. It can automatically move to the site of a possible intrusion indicated by a triggered perimeter security sensor. By programming the robot’s route accordingly, it is possible to regularly inspect the integrity of any gates, doors, and windows.

    For large areas of private property, it is advisable to use security patrol robots for regular inspections in order to identify
and prevent incidents of trespassing. In some cases, just the fact that a mobile security system moves around the property can effectively deter potential trespassers from violating private property boundaries.

Please click here to get more details and price!

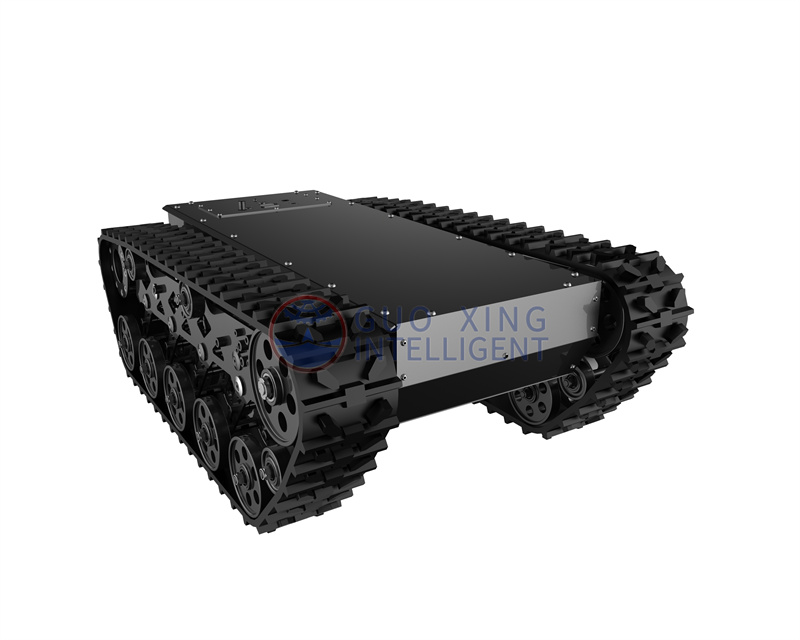

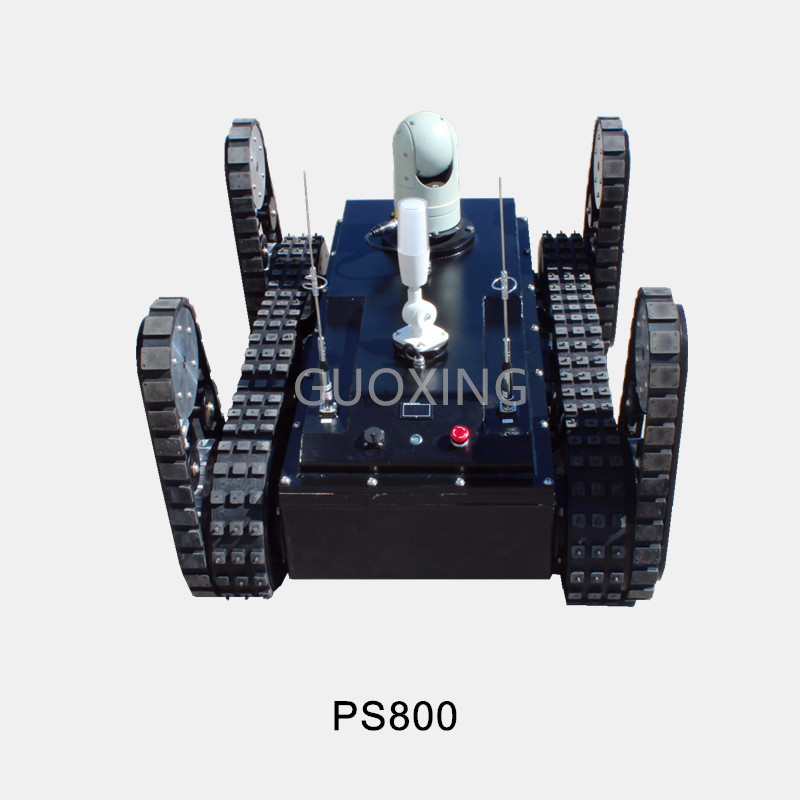

RELATED PRODUCT

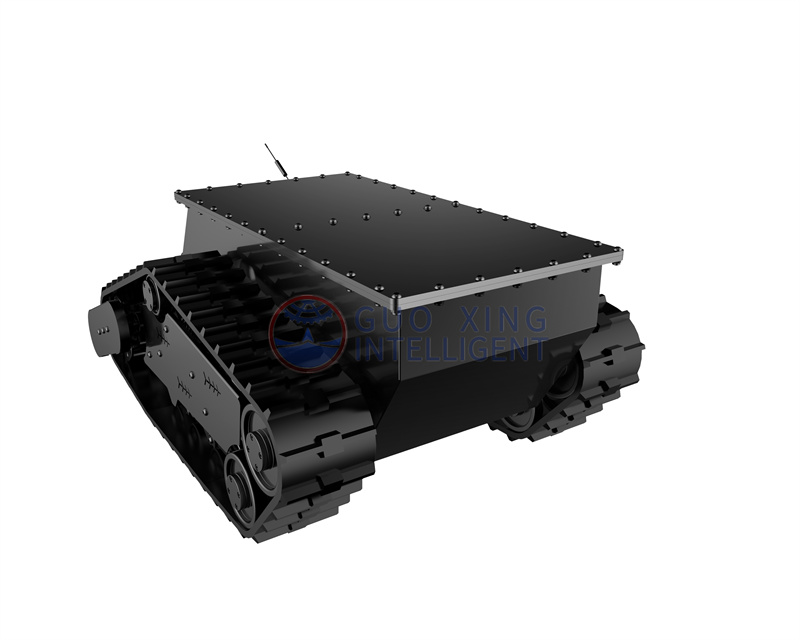

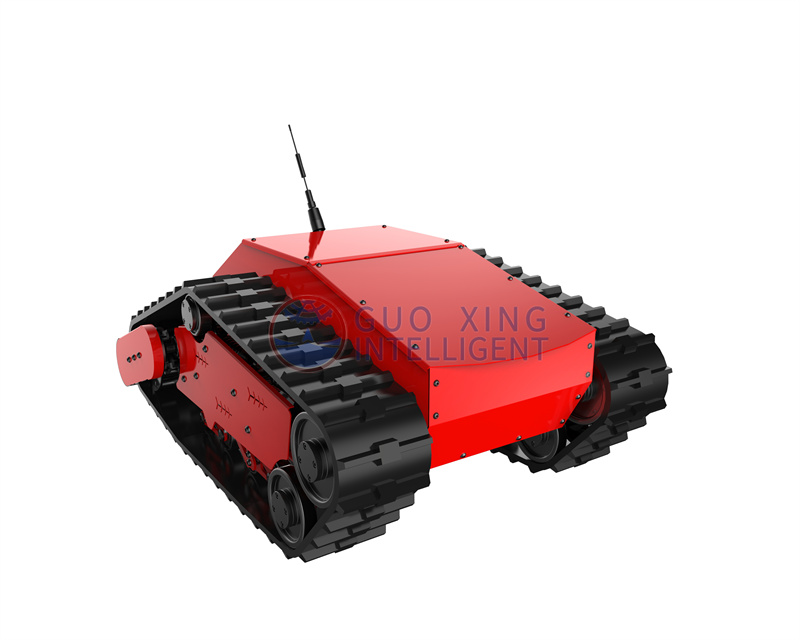

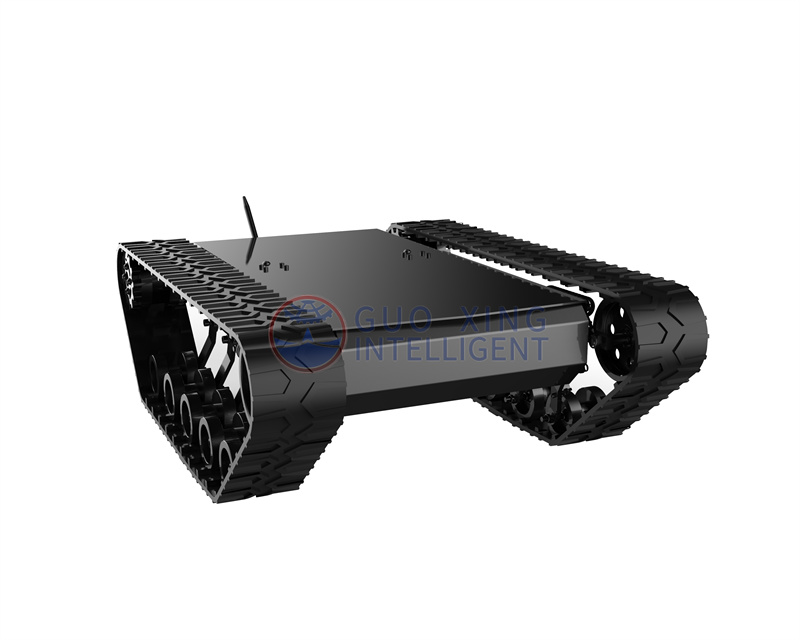

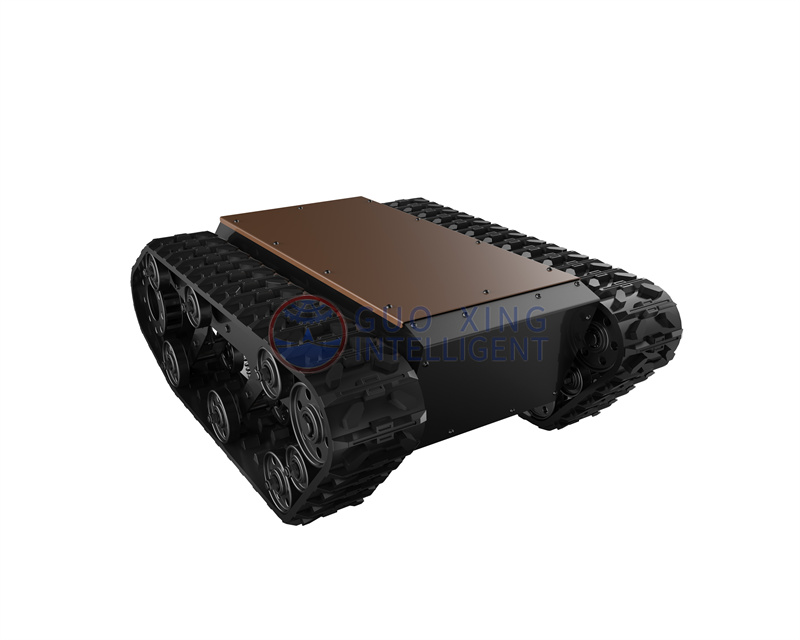

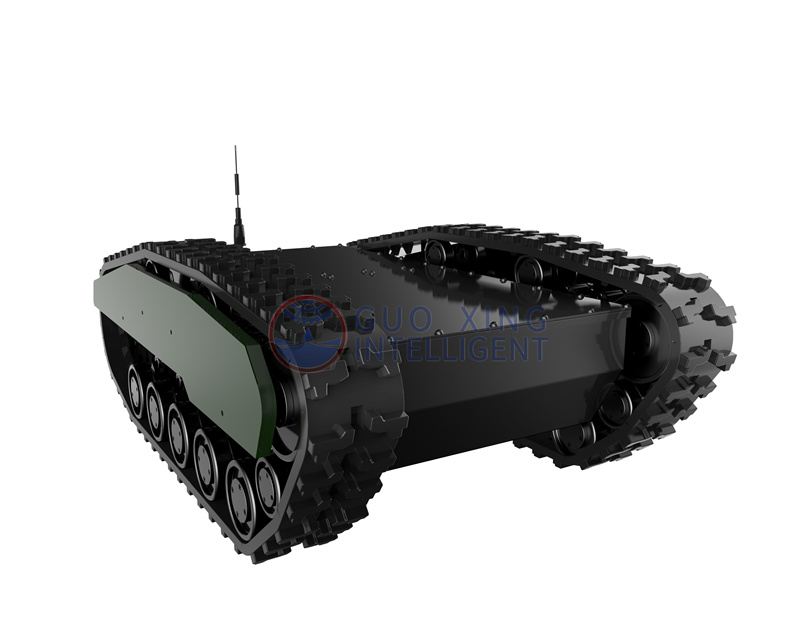

         SAFARI-138T                    SAFARI-600T                    SAFARI-880T                    SAFARI-900T

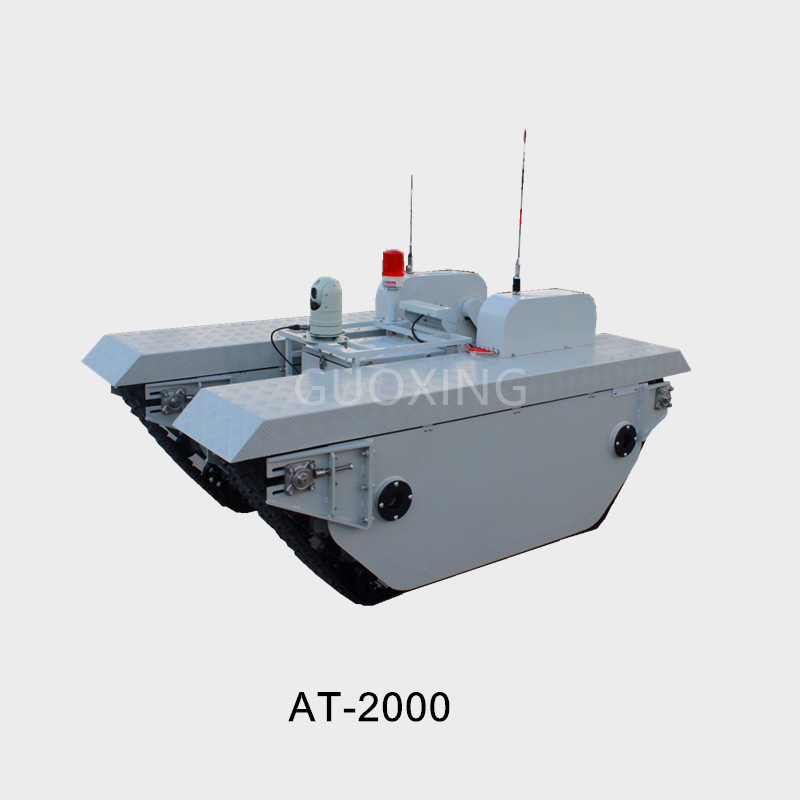

Explosion-proof PKT1300    Water-proof PLT1000        Amphibious AT-2000       Swinging Arm Robot

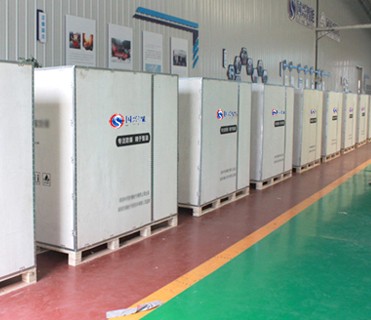

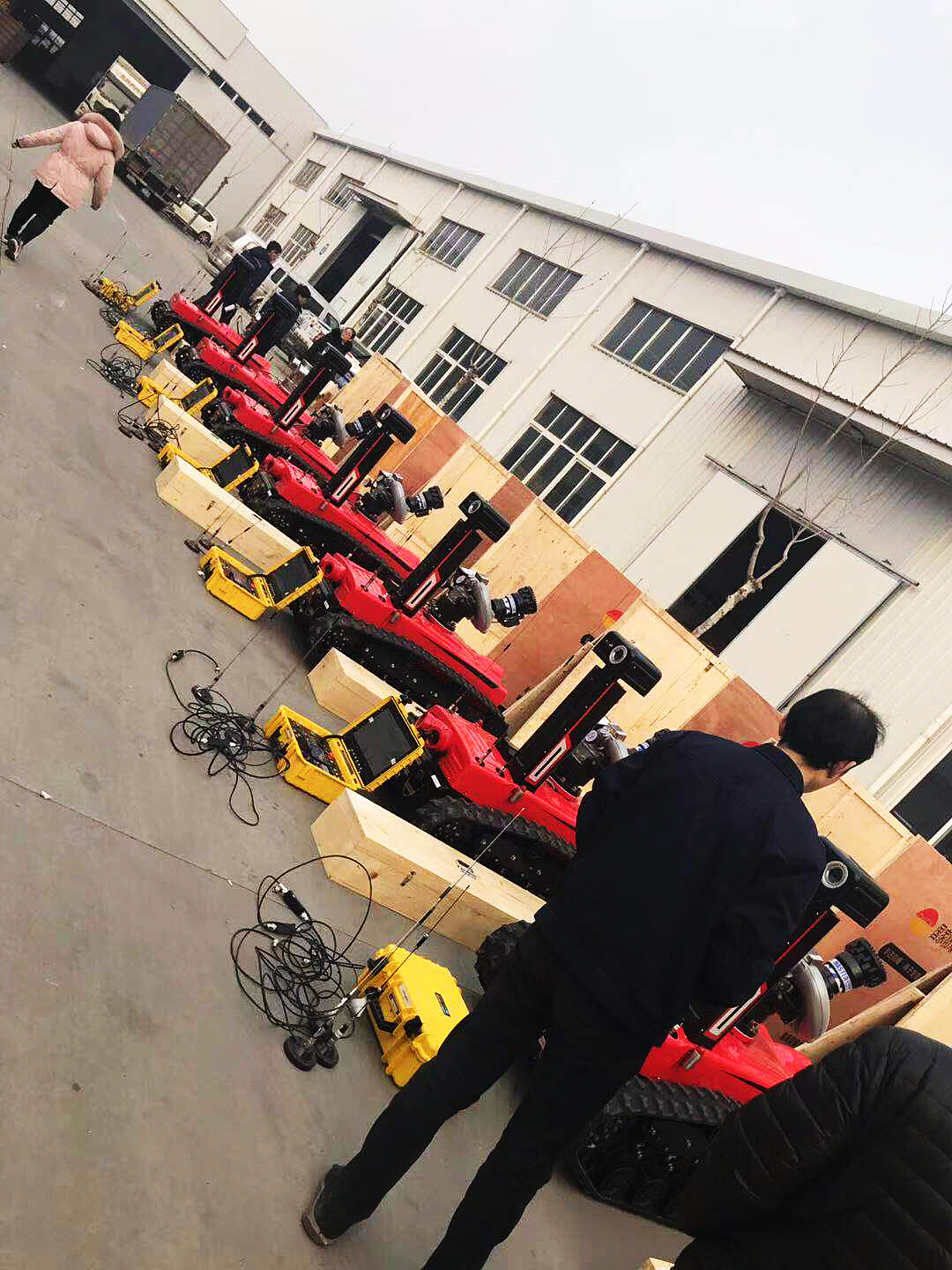

PACKAGE

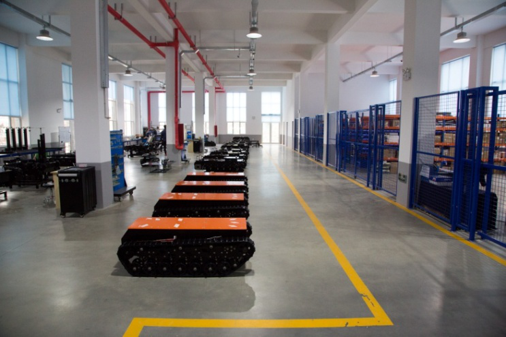

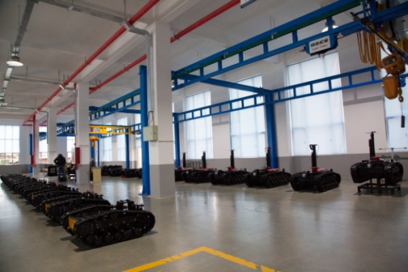

COMPANY PROFILE

Shandong Guoxing Intelligent Technology Co., ltd is located in Yantai city, Shandong Province .
As an early manufacturer of Special robots in China, the company is committed to being an international first-class supplier of special robots and supporting chassis in high-risk and complex environments.
It is high-tech enterprise integrating research and development, production sales and service.

At present, the products developed by the company include explosion-proof products serials, fire-fighting prodcuts serials, military products serials, nuclear power products serials, general chassis serials, self-developed exlosion -proof battery management system and software,high-power drivers and other accessory products.

Among them, explosion-proof serials products have obtained the explosion-proof certificate of the national explosion-proof certification center, the fire-ifghting serial products have obtained the certificate of Shanghai fire- certficate of the national explosion-proof certifictation center, the fire-fighting serials products have obtained the inspection report of Shanghai Testing and inspection Institute for STIEE, and all have obtained the national invention patent.

COMPANY QUALIFICATION

The company has more than 200 patents, the copyright of the 9 computer software. There are 2 national standards and 1 industry standards for drafting explosion-proof products.
