Product Description

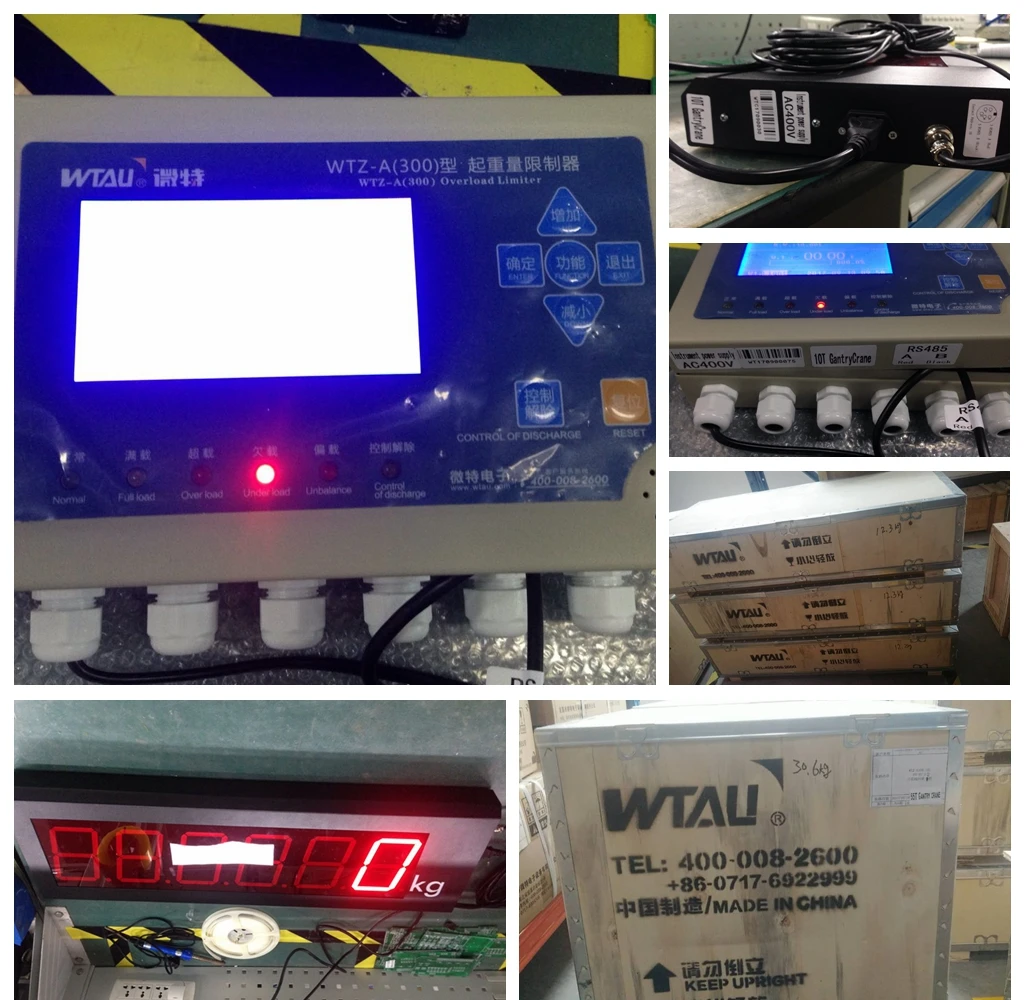

WTZ - A300 loading-capacity limiter is used to monitor 2 ~ 4 channel weight, especially suitable for very large gantry crane, complex large lifting equipment. It can also be connected with a high external large size screen for the convenience of outdoor site construction personnel understand the current load of the lifting device in real time. When the load reaches the preset rated load, the limiter can release the audible and visual alarm signal, and output switching values.
Low power consumption, faster processing speed, higher accuracy, reliability, further improve; Applying optical coupling isolation circuit design, which has a strong anti-interference ability to solve the suddenly strong external interference influence on instrument when signal acquisition process. WTZ - A300 loading-capacity limiter interface shows not only the actual weight, but also the load rate percentage bar graph display. Menu form clear, very good for debugging and correction; Adopting civilian 220 vac and industrial 380 vac two specifications power input.
Main technical parameter
n Ambient temperature for work: -20℃~60℃
n Relative humidity of work environment: 90%RH(20℃)
n Operating voltage: AC 220V ±10%, 50Hz (or customized AC 380V and DC24V)
n Manner of working: continuous
n Composite error: ≤5%F.S.
n Output interface: 4-20MA
n Output interface of Weight sensor :RS485
n Display screen: 240*128 lattice liquid crystal screen
n Preset capacity of the output contacts: AC220V, 5A
n IP grade: IP68 for the weighing sensor
Company Information
Weite Technologies Co.,Ltd
Founded in 2002, it is national hi-tech enterprise located in Yichang, China. It has been focusing on R&D and OEM manufacturing of lifting safety protection devices such as Load Moment Indicator, Safe monitoring systems, overload limiter, Load cell, Anemometers etc.We continuously concentrate on ensuring lifting equipments run safely as long-term pursuing goal.
"The trusted Safety Partner for Global Top 100 Crane Owning Companies like Tat Hong, Asiagroup, Big Crane and Fortune 500 corps" . Nowadays, WTAU products are widely used in marine industry,electrical, chemical, steel, metallurgy, construction, ports and other industries, and have been wide spreaded to over 30 countries and regions.
FAQ
1) Is your company well-reputated? How to prove that?
It is a China Top 3 brand focusing on Crane Safety Protection Equipment. We are also Safety Partners for Global Top 100 Crane Owning Companies like Tat Hong(top 9), Asiagroup(top 45), Big Crane(top 94) and Top 500 companies such as ABB, Macgragor,TTS,CNOOC,etc. Products are been sold to over 30 countries and regions globally.
2) How to assure the quality?
The Product Warranty for the total item is 12 months. Any problem after installation, we will change the new one for free.
3) How to install the LMI?
English User Manual(include all the details of each item) will be offered for installation and trouble shooting(refer to the pic below). Also free Remote Instant Technical assistance would be offered by our english engineers. Or we can send our engineers to assist you locally.
4) How much is your LMI system?
Send me the crane model, hook number, working conditions(Luffing Tower Working Condition, Pilling) and special requirement and the like. Your contact info is a must.
5) How can I place order?
A: You can contact us by email about your order details, or place order on line.
6) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.
