Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room

Add to Basket Share to :

Supply Ability1000 Sets per Year
PortGuangzhou Port
Delivery Lead Time45~75 days

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Guangzhou Nanya Pulp Molding Equipment Co., Ltd.
Membership Free member
Registration Date2015.06.29
Country/RegionChina
CityGuangzhou
Contact Effy Gong(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Effy Gong

Guangzhou Nanya Pulp Molding Equipment Co., Ltd.

* Buying Product

Category : Paper Product Making Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name NANYA
- Model Number ES400-B~3000-B
- Place of Origin China
- Capacity 400-3000 pcs/h
- Standard CE/TUV/SGS/ISO9001
- Raw Material Waste Paper
- Voltage 220 V - 450 V
- Automation Semi-automatic
- Related Keywords egg tray machine, fruit tray machine, cup golder machine, egg carton machine

Description by Manufacturer

Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room

Specifications:

Model Type	ES400-B	ES600-B	ES800-B	ES1200-B	ES2000-B	ES3000-B
Capacity	400pcs/h	600pcs/h	800pcs/h	1200pcs/h	2000pcs/h	3000pcs/h
Hydrapulper	0.5m³, 5.5kw	0.5m³, 5.5kw	1.5m³, 15kw	1.5m³, 15kw	2m³,22kw	2.5m³,27kw
Forming Machine	Plate Size 800*400mm 2pcs/unit	Plate Size 1200*400mm 3pcs/unit	Plate Size 1600*400mm 4pcs/unit	Plate Size 1200*800mm 6pcs/unit	Plate Size 1600*400mm 6pcs/unit	Plate Size 1200*800mm 6pcs/unit
Drying Line	4m×4m×2.5m	6m×4m×2.5m	8m×4m×2.5m	12m×4m×2.5m	12m×6m×2.5m	24m×4m×2.5m
Workshop Requirement	Length≥10m Width≥10m	Length≥15m Width≥10m	Length≥15m Width≥12m	Length≥20m Width≥12m	Length≥25m Width≥12m	Length≥27m Width≥14m
Power Requirement	40kw	45kw	65kw	90kw	110kw	150kw
1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g. 2. For different capacity, customized allocation can be made according to the clients’ requirement. 3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.

Descriptions:

This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
The formed products can be dried by drying product line, drying house or under the sunshine directly.
There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on.

Production Information and Our Warranty:

Status: Brand new
Product Type: Semi-automatic egg tray production line
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: ES400-B ~ ES3000-B
Voltage: 220V - 440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Applications:

Egg tray	20,30,40packed egg tray… quail egg tray
Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
packages	Shoe tree, industrial package…

Competitive Advantages:

Semiautomatic production line
Siemens servo motor is applied
Energy saving and labor utilization
High quality thermoforming machine, forming, drying, pressing finished automatically in one machine Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
The standing director of Chinese packaging association

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	45-75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date

Price

Price Condition FOB

Packaging & Shipping

- PackingExport Standard Packing
- Delivery Lead Time45~75 days
- Minimum Order1 set
- Supply Ability1000 Sets per Year
- Delivery PortGuangzhou Port

Product Image

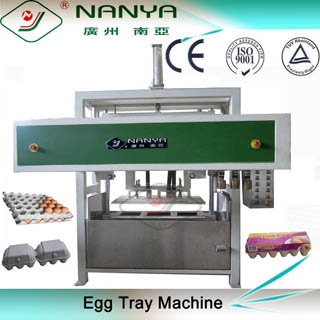

Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room

Egg Tray Machine Related Products

Main Export Markets

- Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is mainly exporting to China (Mainland), Asia, Europe, North America

Company Profile

About Guangzhou Nanya Pulp Molding Equipment Co., Ltd.

Membership Free member
Registration Date2015.06.29
Country/RegionChina
CityGuangzhou
Contact Effy Gong(Ms.)

1. NANYA company was set up in 1994, now has two factories, one is in Guangzhou City mainly for technical research and development, one is in Foshan City mainly for machine and mold fabrication, totally covering over 27,000 square meters and exporting over 50 countries and regions. Now its one of the earliest and biggest pulp molding machines manufactures in China. We keep reaching to improve machine stability, lower production cost saving and production safety.
2. Currently our company mainly make the following pulp molding machines:
(1) Semi automatic tableware machines & automatic tableware machines & tableware machine with smart robots;
(2) Pulp molding machines for egg tray/egg carton/fruit tray;
(3) Pulp molding machines for general quality(non-thermoforming)industrial packages;
(4) Pulp molding machines for finery quality(thermoforming)industrial packages, hot press machines, edge trimming machine, lamination machine, moulds
3. Our R&D technician team have more than 50 people, they have rich experience at paper making /mechanical design/ pneumatic/ thermal engineering/ environmental engineering and mold design.
4. NANYA has established long term cooperation with renowned universities, Guangdong University of Technology (GDUT) and South China University of Technology (SCUT). We together develop and apply the advanced technology at home and abroad these years.
5. NANYA adopts the international brands for spare parts and auxiliary equipment, such as Siemens/Schneider /Festo, etc, which ensures the machine stability and durability.
6. NANYA has exported machines and moulds to more than 50 countries and regions and enjoys high reputation among customers. We keep good relationship with our customers and never have legal dispute with any customer. Usually the customers who bought our machines will come back to us when they add machine to expand capacity in future.
