Product Attributes

- Model Number XTS30+3141 TV
- Place of Origin China
- Related Keywords microscopes, TV microscope, video camera

Description by Manufacturer

Technical Specifications

Trinocular Tube, Inclined 45 degree, can be rotated a full 360°
Zoom Range of Body: 0.7x-4.5x
Zoom Ratio: 6.5:1
Eyepiece: WFH10X high eyepiece point eyepiece (standard)
Magnification: 7x-45x (with accessory lens: 2.1x-225X )
Working distance: 108mm
Field of view: 31.3mm- 4.9mm
Interpupillary distance: 54mm-75mm
Dioptric correction: +5 -- -5
Optional eyepiece: WF15x,WF20x,WF25x
Optional objective: 0.3X,0.5X,0.75X,1X standard,2X

# 3141 Pole Stand with HF

Base dimension: 240x180x34mm, the distance from pole to the plate centerline:120mm, Vertical post: Dia.25mm, Main post 200mm, with attached extension post 170mm
Focusing Mount (#4113): the vertical working distance 80mm(+69,-11mm), the ring`s ID. 83mm
With a Locking Ring for vertical stopping.
Light system: Dual Illuminator, Top transmitted 6V/15W halogen bulb and bottom incident 5W fluorescent Ring light, adjustable top light lever allows user to direct positioning of light path onto specimen; for individual use or both at a time.
Clear Glass Plate：Dia.99mm
With two Spring Clips for holding the objective on the plate.
Color Filter: with a standard white filter for Top and Bottom, Dia.40mm, the Darker Blue and Bright Blue for option.
This model package: 1 set per each carton, Gross weight 8.5 kgs, Carton size 45*31*37cm

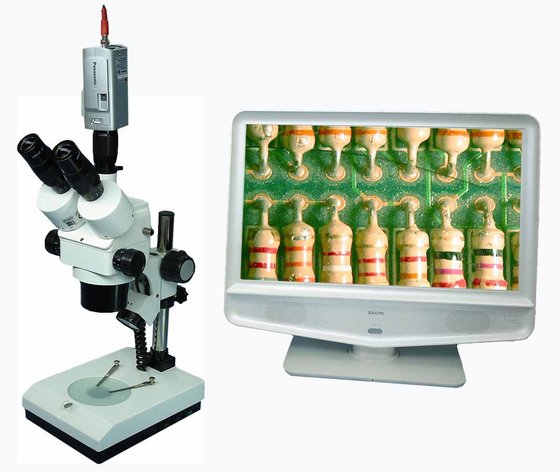

The trinocular shooting can suit and connect with shooting sets or the sample image can be displayed on TV or computer by video display.
If connect TV, the CCD adapter & CCD camera is necessary

Price

Price Condition FOB

Packaging & Shipping

- Delivery Lead Time7 days for ready the goods

Product Image

Company Profile

About Beijing Tech Instrument Co., LTD.

Membership Free member
Registration Date2011.08.12
Country/RegionChina
CityBeijing
Contact Michael Z.(Mr.)

Beijing Tech Instrument Co.,Ltd.is located in Beijing, China. Beijing Tech Designs, engineers, and manufactures four series of products as Optical instruments, Bio-Medical instruments, Photographic equipment and Environment equipment. Beijing Tech is recognized around the China and the World as the main manufacturer in Stereo Microscopes, our products are widely used for various applications, such as science research, industries, bio-medical and education.

Beijing Tech has more than 30 years of experience in manufacturing microscopes, we have 400 staff working together in the main factory. We know how to support our customers and give the service that is expected above all standards. In China mainland, we have more than 20 experienced sales and technical people working to service our distributors and agents in different provinces. We are essentially part of a developmental strategy to tap into the inexhaustible market. Throughout the years we have established a successful working relationship with our customers. In international market, the Stereo Microscopes are exported to more than 80 countries in Europe, Asia and America.
