ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC Drilling Machine

Add to Basket Share to :

Price

US$ 13500

Min Order Quantity1 Set
Supply Ability100 SETS/MONTH
PortQingdao, China
Delivery Lead Time30
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name JAYA INTERNATIONAL CO.LTD
Membership Free member
Registration Date2012.03.30
Country/RegionChina
CityJinan
Contact Hebe Gao(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name ZICAR
- Model Number CR1325ATC
- Place of Origin China
- Supply Type Arrangeproductionafterprepayment
- Condition New
- Working Table Size(mm) 1300x2500
- Number of Axes 2
- No. of Spindles Single
- CNC or Not CNC
- Weight (KG) 1300
- Range of Spindle Speed(r.p.m) 1 - 18000 rpm
- Positioning Accuracy (mm) 0.05 mm
- Travel (X Axis)(mm) 1300 mm
- Travel (Y Axis)(mm) 2500 mm
- Repeatability (X/Y/Z) (mm) 0.05 mm
- Spindle Motor Power(kW) 9
- Voltage 220V/380V 50/60HZ or customized
- Dimension(L*W*H) 3100*2000*1700mm
- Power (kW) 9
- X axis travel 1300mm
- Y axis travel 2500mm
- Z axis travel 250mm
- Repeat positioning 0.05mm
- Running speed 45m/min
- Carving speed 25m/min
- Spindle 9kw China air cooling spindle
- Related Keywords wood router, cnc wood router, wood cnc router prices, wood cnc router

Description by Manufacturer

ZICAR HOT SALE Wood Router for WOOD WORKING

Specifications
X working size	1300mm
Y working size	2500mm
Z working size	250mm
Bed structure	Welding of Thick Wall Square Pipe
Max. working speed	45m/min
Max.engraving speed	25m/min
repositioning accuracy	±0.05mm
Command	G code
working voltage	220V/380V 50/60HZ
Spindle	9kw China air cooling spindle
Spindle speed	0-18000rpm/min
Tool magazine	12 tools for linear-type auto change
Table	Vacuum table
Vacuum pump	7.5kw water cooling vacuum pumps
Transmission	X/Y helical gears 、 Z screw
Guide	TAIWAN LM 25mm square guide
Motor&driver	JMK servo motor&servo driver
Reducer	Taiwan quality reducer
Inveter	11kw inverter
Driver	Servo driver
Control system	Taiwan LNC2200 controller system
Automatic location	Automatic location
Oling system	Auto oiling system

The machine is widely used in furniture processing industry, home decoration, wooden doors manufacturing.

Applicable industry: wood furniture, wooden crafts processing industry, suitable for large panel cutting and large relief carcving products.

Applicable material: solid wood panel, artificial board, acrylics, PVC, MDF and so on.

Price

Price US$ 13500 / Set

Packaging & Shipping

- PackingPlywood case
- Packaging Size1300 x 2500 x 250 ( Millimeters)
- Delivery Lead Time30
- Minimum Order 1 Set
- Supply Ability100 SETS/MONTH
- Delivery PortQingdao, China
- HS Code8465990000
- Shipping Career

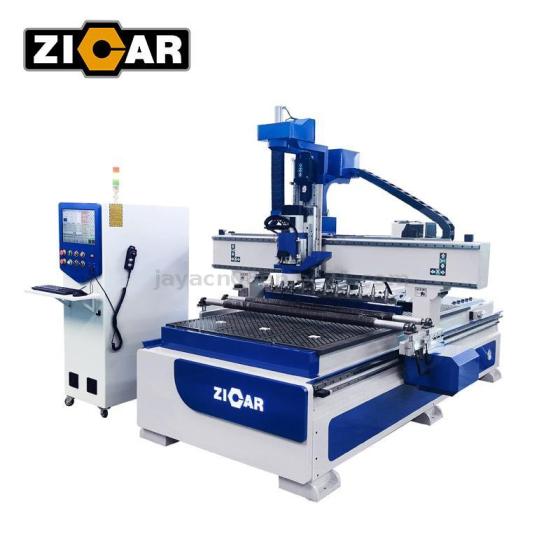

Product Image

ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC Drilling Machine

ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC Drilling Machine 2

ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC Drilling Machine 3

ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC Drilling Machine 4

ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC Drilling Machine 5

ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC Drilling Machine 6

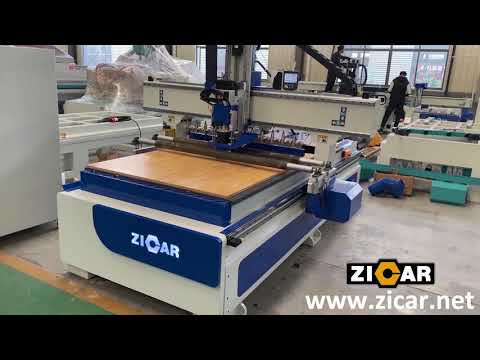

Product Video

ZICAR Wood ATC CNC Router Machine Furniture Woodworking CNC ...

Wood Router Related Products

Company Profile

About JAYA INTERNATIONAL CO.LTD

Membership Free member
Registration Date2012.03.30
Country/RegionChina
CityJinan
Contact Hebe Gao(Ms.)

Jaya International is a professional woodworking machinery supplier with over 50 years? history and have been engaged in exporting for more than 15 years, which entitle us to following advantanges:

*More than 300 employees, 56 technicians, covering an area of 35000 square meters, with seperate international trade office.
* ISO9001:2000, CE certified, 15 national patent.
*Always supply customers with right products at a competitive price, with quick delievery and assistance.
*Assuring service and spare parts after sales.
*Qucik feedback within 24 hours.

We trust that our experience and knowledge of this line will surely help to expand your market in your country.
