Product Attributes

- Brand Name hilink
- Model Number HLK-LD101
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Dark Blue
- Size 20mm*25mm*4mm
- Related Keywords X-band radar, Microwave Sensor Switch, Human Movement Detection, 10G Radar Module

Description by Manufacturer

Welcome to Hi-Link store.

Shenzhen Hi-Link Electronic Co., Ltd was founded in 2009. It is a high-tech enterprise focusing on WiFi module, Bluetooth module and power module, integrating R & D, production and sales services.

We are committed to making each intelligent product more convenient, faster and more reliable and providing customers with safe, high-quality and reliable products is our eternal pursuit.

HLK-LD010

1. Summary

HLK-LD101 is an X-band radar module working at 10.525GHz. Based on the Doppler effect, this design uses fixed-frequency, directional transmitting and receiving antennas, which are first combined with chip integration technology and microwave antennas on the market. It has the characteristics of anti-interference, small size, no wall penetration, high stability, good consistency, and good clutter and high-order harmonic suppression effect. The on-board integrated IF demodulation, signal amplification, digital processing, light intensity detection, timing and other functions are integrated on the module, and the serial port function is opened at the same time, which is convenient for users to adjust relevant parameters. This product adopts pulse power supply mode, and the average power consumption can be reduced to 7mA.

2. Product Features

Working frequency 10.525GHz

Wide voltage operation：+3.3V~15V

Module size：20mm*25mm*4mm

The sensing distance is about 7m (straight line distance)

Detect angle 100°

Maximum transmit power：2dBm

Maximum receiving sensitivity：-95dBm

Motion detection Onboard integrated transmit and receive antennas

3. Product Application

Smart home

Smart lighting

Smart home appliances

Smart security

4. Product Parameters

TA=25℃

Symbol	Parameters	Test Conditions	Min	Typ	Max	Unit
Input power
VCC	Working voltage		3.3		15	V
I	Working current	VCC=5V	8	12	35	mA
Output
f_OSC	Microwave frequency	VCC=3.3~12V		10.525		GHz
P	Transmit power	VCC=3.3~12V			2	dBm
Vout	Output voltage		2.9	3	3.1	V
Iout	Output current				10	mA
Tw	Power-on stabilization time		10	15	25	S
Temperature and humidity range
T_A	Working temperature		-20		+60	℃
T_B	Storage temperature		-40		+85	℃
H_A	Working humidity		10		95	%
H_B	Storage humidity		0		95	%
Detection range
	Radial detection distance ①		1	1.2	1.5	m
Ts	Turn-off delay ②			5		S
ESD features
	Contact discharge			2		kV
	Air discharge			2		kV

Table1：electrical parameters

Notes：

①The sensing distance can be set according to customer needs;

②The turn-off delay can be set according to customer needs;

5. Pin configuration and function description

No.	Part	Port	Illustrate	Schematic
1	P1	V	DC 3.3~15V	Front Back
2		G	Power ground
3		O	TTL high level 3V
4		O2	NC reserved
5	P3	Pad	Program download port (from top to bottom，3.3V/CLK/DIO/GND/TX/RX）

Price

Price US$ 1.5 / Piece

Packaging & Shipping

- PackingStandrad
- Package Weight 0.1 ( Kilograms )
- Delivery Lead Time5 days
- Minimum Order 1 Piece
- Supply Ability30000 per month
- Total quantity in StockOver 5000
- Delivery PortShenzhen
- Shipping Career

Product Image

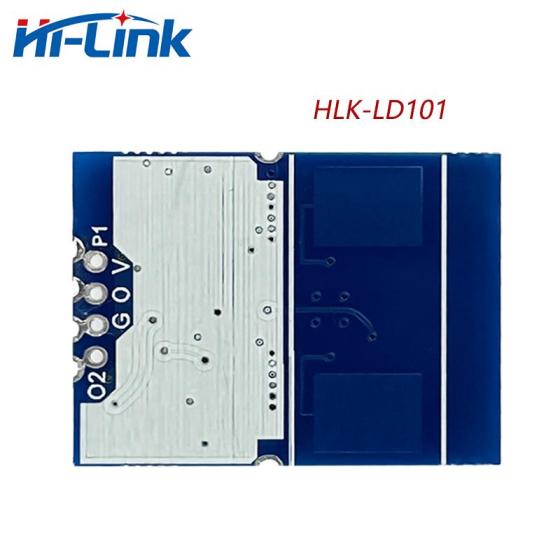

10G Radar Module LD101 Intelligent Microwave Sensor Switch Human Movement Detection Sensor
