5VDC 3W Isolated Switching Mini Power Supply Module Hlk-PM01

Add to Basket Share to :

Price

US$ 2

Min Order Quantity1 Piece
Supply Ability50000 per month
PortSHENZHEN
Delivery Lead Time3days
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Hi-Link Electronic Co.,Ltd
Membership Free member
Registration Date2016.07.06
Country/RegionChina
CityShenzhen
Contact Anna Kuang (Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Anna Kuang

Shenzhen Hi-Link Electronic Co.,Ltd

* Buying Product

Category : Switching Power Supply

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name HI-LINK
- Model Number HLK-PM01
- Place of Origin China
- Input Voltage 100-240V
- Output Current 0.6A
- Output Power 1 - 50W
- Output Type Single
- Output Voltage 5V
- Size 34*20*15mm
- Related Keywords AC DC converter, isolated power module, step down power module, switching power supply

Description by Manufacturer

We are Hi-Link Electronic co.,ltd, manufacturer of AC DC power module products in China.

If you need samples, please place order here.

If you need more quantity, please contact us directly, we will provide our best price to you.

Choose us with best quality and favourable prices.

1.Product Features
1). The ultra-thin, subminiature
2). The full voltage input (90 ~ 264 Vac)
3). Low ripple and low noise
4). Output overload short circuit protection function
5). High efficiency and power density
6). Product design to meet the EMC and safety testing requirements
7). Low power consumption, green environmental protection, no-load loss < 0.1 W
8). 100% load test
9). Meet the requirements of UL, CE,

2. Environmental Conditions
1). Working temperature: -20- + 60 Celsius
2). Storage temperature: -40- + 80 Celsius
3). Relative Humidity: 5-95%
4). Cooling: natural cooling
5). Atmospheric pressure: 80-106 Kpa
6). Altitude: ≤2000m
7). Vibration: Vibration coefficient 10 ~ 500Hz, 2G10min / 1cycle, 60min.each along X, Y, Z axes

3.Electrical Characteristics (at ambient temperature test)
1). Rated input voltage: 100-240 VAc
2). Input voltage range: 90-264VAc
3). Maximum input current: ≤0.2A
4). Input current surge: ≤10A
5). Maximum input voltage: ≤270VAc
6). Enter slow start: ≤50mS
7). Input Low Voltage Efficiency: Vin = 110VAc, full load ≥69%
8). Input High Voltage Efficiency: Vin = 220VAc, full load ≥70%
9). Long-term reliability: MTBF≥100,000h
10). Load rated output voltage: + 5 ± 0.1VDc
11). Full rated output voltage: + 5 ± 0.2VDc
12). Short-term maximum output current: ≥1000mA
13). Maximum output current for a long time: ≥600mA
14). Voltage Regulation: ± 0.2%
15). Load regulation: ± 0.5%
16). Output ripple and noise (mVp-p): ≤50
17). Switch overshoot amplitude: ( rated input voltage, output load plus 10%) ≤5% VO
18). Output over-current protection: output maximum load of 150-200% A

aeProduct.getSubject()

Certificates

- CE SEM15129760

Price

Price US$ 2 / Piece

Packaging & Shipping

- Packingstandard
- Package Weight 0.1 ( Kilograms )
- Delivery Lead Time3days
- Minimum Order 1 Piece
- Supply Ability50000 per month
- Delivery PortSHENZHEN

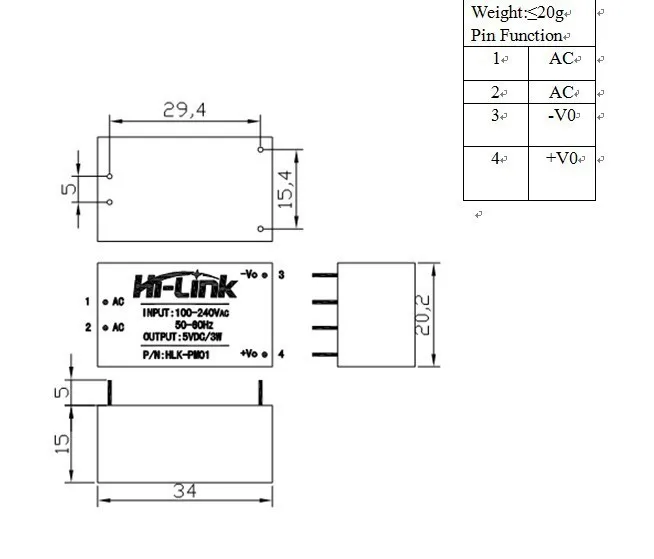

Product Image

5VDC 3W Isolated Switching Mini Power Supply Module Hlk-PM01
