13.56MHz MIFARE DESFire EV1 Reader Module, CPU Card RFID Reader Writer

Add to Basket Share to :

Supply Ability10000 sets per month
PortSHENZHEN
Delivery Lead Time5 working days for small order lot
Payment Terms 3

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name SHENZHEN CHIKEK Intelligent TECH Co.,LTD
Membership Free member
Registration Date2017.03.30
Country/RegionChina
CityShenzhen
Contact Tracey(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Tracey

SHENZHEN CHIKEK Intelligent TECH Co.,LTD

* Buying Product

Category : Access Control Card Reader

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name CHIKEK
- Model Number CHK301MT
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Frequency 13.56MHz
- Interface UART TTL
- Protocol ISO14443A/B ISO15693
- Related Keywords DESFire card reader, CPU card rfid module, Smart card module, Embed rfid module

Description by Manufacturer

Brief Introduction:

CHK301MT - MIFARE DESFire cards reader writer module, is operatable for kinds of different contactless IC/CPU cards, which compatible with ISO/IEC 14443 Type A, Type B, and ISO/IEC 15693, ISO18092 standard.

Specially, this module supports DES, 3DES and AES encryption algorithm, and with more opened operation interfaces for MIFARE DESFire series cards, such as to create/delete/format Application ID of the card’s PICC level, and define different kinds of files under application level, etc. These functions can be realized directly with CHIKEK’s friendly SDK kits.

Thanks to the features of MIFARE DESFire EV1 cards made by NXP company, this model of embeddable module offers higher safety, faster data transaction and more widely applications.

Key Features:

3.3V ~5V power supply, UART-TTL interface;
Tiny size, single-face laying components with stamp-hole
Compliant with ISO14443A/B, ISO15693, ISO18092 Standard
Option version of ISO7816 T=1 standard;
Read/Write or Read UID only working mode
Support to create standard Data file, Back-up Data file, Value file, Linear Record file, Cyclic Record file and Transaction MAC file)
Support KEY Authenticate,get KEY Version, change KEY, etc;
Available to operate DESFire PICC level, Application ID create/delete/format, etc
External LED and BUZ available (external driver circuit needed)

Technical Parameters:

Electrical Specification
Power supply	DC 3.3V ~ 5V
Power consumption	Max current：<50mA, Standby current: <1 mA
Operation frequency	13.56MHz
Baudrate	9600~115200 bit/s ( default 9600bps)
Interface	UART TTL
Antenna	External, stamp hole
Reading range	Up to 4 cm ~ 10 cm( depends on antenna and cards)

Mechanical Specifications
Dimension	25mmx16.5mmx2.8mm (LxWxH)
Weight	3g
Material	FR-4, Blue
Model	CHK301MT

Environmental Conditions
Operation temperature	-20°C～ +80°C
Storage temperature	-40°C～ +85°C
Humidity	Relative humidity 5%～95%

Supported Standard/ Tags
ISO14443 A	Read/write: MIFARE Classic 1K /4K, MIFARE Ultralight, MIFARE Ultralight C, MIFARE DESFire EV1, MIFARE Smart MX, MIFARE Plus S / X, MIFARE Pro X, NTAG 21x Read UID only: Read UID only of all other ISO14443A RFID tags
ISO14443 B	SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
ISO15693	EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity)

SDK information
Demo software	WINDOWS, C# language
Files	Comprotocol document API document User Manual Demo.exe

Note: Other functions and details to be continued and upgrade

Packaging & Shipping

- Delivery Lead Time5 working days for small order lot
- Supply Ability10000 sets per month
- Total quantity in StockOver 5000
- Delivery PortSHENZHEN
- HS Code8473309000
- Shipping Career

Product Image

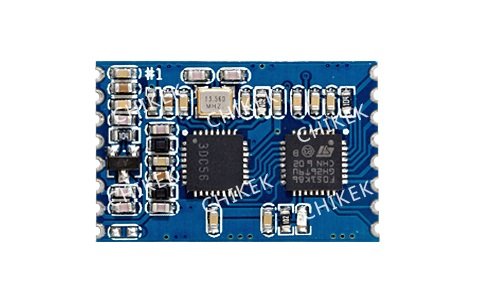

13.56MHz MIFARE DESFire EV1 Reader Module, CPU Card RFID Reader Writer
