HF13.56MHz Multi RFID Reader Writer, Embed Smart Lock RFID Module, ISO14443A/B, ISO15693

Add to Basket Share to :

Supply Ability10000 sets per month
PortSHENZHEN
Delivery Lead Time3-5 working days for small order
Payment Terms 3

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name SHENZHEN CHIKEK Intelligent TECH Co.,LTD
Membership Free member
Registration Date2017.03.30
Country/RegionChina
CityShenzhen
Contact Tracey(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Tracey

SHENZHEN CHIKEK Intelligent TECH Co.,LTD

* Buying Product

Category : Access Control Card Reader

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name CHIKEK
- Model Number CHK303MT
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Frequency 13.56MHz
- Port UART TTL
- Protocol ISO14443A/B ISO15693
- Related Keywords multi rfid reader writer, smart card reader, mifare card module, NFC reader module

Description by Manufacturer

Brief Introduction:

Embeddable Multi-protocol RFID R/W Module CHK303MT, compatible with ISO/IEC 14443 Type A/Type B, ISO/IEC 15693 standards, and support all kinds of standard IC cards, including MIFARE Classic family, MIFARE Ultralight/Ultralight C, NTAG series and I CODE SLI-X cards/tags, etc.

It has Anti-collision ability and can be operated with multiple cards or single card accordingly.

It works with UART TTL interface, DC 3.3V ~5V lower power consumption, optional with different sizes rfid antennas coils for specific requesting reading range from 5 -10cm.

Key Features:

DC3.3V ~5V power supply, UART-TTL interface;

Compliant with ISO14443A/B, ISO15693 standard;

Support contactless card of MIFARE® Classic 1K /4K, MIFARE Ultralight®/Ultralight® C, NFC NTAG Tags,MIFARE® PRO, ISO14443A-4 contactless CPU card, I CODE SLI, TI 2048, Fujitsu MB89R112A etc;

E-wallet increment/decrement/backup,etc available for operating;

Anti-collision ability, can be operated with multiple cards or single card accordingly;

External antenna, reading range up to 5 ~ 7cm;

External LED and BUZ available (external driver circuit needed)

Technical Parameters:

Electrical Specification
Power supply	DC 3.3V ~ 5V
Power consumption	Max current：<50mA, Standby current: <1 mA
Operation frequency	13.56MHz
Baudrate	9600~115200 bit/s ( default 9600bps)
Interface	UART TTL
Antenna	External, stamp hole
Reading range	Up to 4 cm ~ 10 cm( depends on antenna and cards)

Mechanical Specifications
Dimension	25mmx16.5mmx2.8mm (LxWxH)
Weight	3g
Material	FR-4, Blue
Model	CHK303MT

Environmental Conditions
Operation temperature	-20°C～ +80°C
Storage temperature	-40°C～ +85°C
Humidity	Relative humidity 5%～95%

Supported Standard/ Tags
ISO14443A	Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG 21x Read UID only: Read UID only of all other ISO14443A RFID tags
ISO14443B	SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
ISO15693	EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity)

SDK information
Demo software	WINDOWS, C# language
Files	Comprotocol document API document User Manual Demo.exe

Note: Other functions and details to be continued and upgrade

Packaging & Shipping

- Delivery Lead Time3-5 working days for small order
- Supply Ability10000 sets per month
- Delivery PortSHENZHEN
- Shipping Career

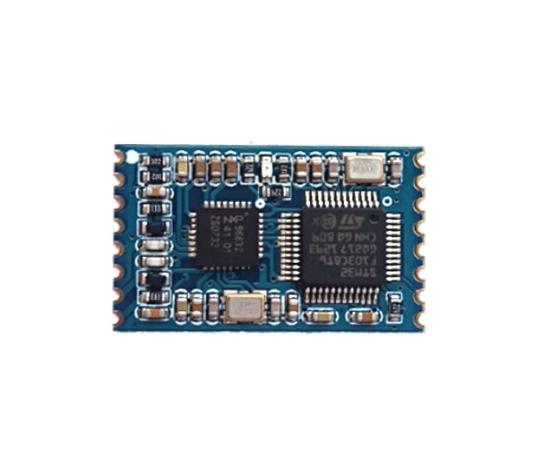

Product Image
