15-19 Inch LCD Rackmount Monitor Display

Add to Basket Share to :

Payment Terms 6

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shanghai Anxin Intelligent Technology CO.,LTD.
Membership Free member
Registration Date2006.05.12
Country/RegionChina
CityShanghai
Contact David Wan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.David Wan

Shanghai Anxin Intelligent Technology CO.,LTD.

* Buying Product

Category : LCD Monitor

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Anxin
- Model Number RCIM-19/RCIM-17/RCIM-15
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Application rackmount
- Screen Size 19"
- Related Keywords Rackmount Monitor, Rackmount LCD Monitor, Rackmount LCD display, Rackmount LCD

Description by Manufacturer

Rackmount monitor wiith 15~19 inch LCD panel and touchscreen are installed in a rugged Rack Mount chassis designed for 19″ Equipment Racks suitable for industrial process control room environments.

Features

Rack mount monitor 19" LCD display with 8.5U height
19" SXGA TFT LCD Panel support 1280x1024 pixels
90°tilt adjustment while mounted in rack: +45°~ -45°
Input signal : VGA + DVI + Audio
300 cd/m2 brightness
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)
Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting

Specifications

Display

Display Type 19" SXGA TFT LCD
Resolution 1280x1024
Max.color 16.7M
Luminance 300 cd/m2
View Angle 160°(H) , 160°(V)
Pixel Pitch 0.294 x 0.294mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input Aviation 2pin Plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input

Power supply

Standard 100~240VAC,50/60Hz, DC 12V 5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel rackmountable chassis
Operate temperature 0°C to 50°C
Storage temperature -20°C to 60°C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions (WxHxD) 482.6 x 377 x 48 mm
Weight Net: 8.0kg , Gross:11.0 kg

Product Image

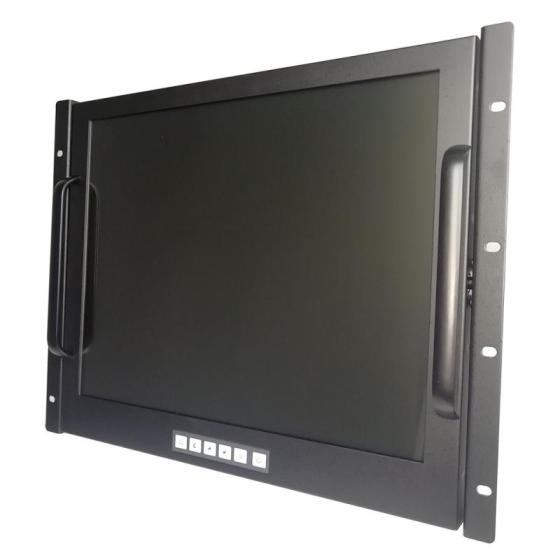

15-19 Inch LCD Rackmount Monitor Display

15-19 Inch LCD Rackmount Monitor Display 2

15-19 Inch LCD Rackmount Monitor Display 3

15-19 Inch LCD Rackmount Monitor Display 4

15-19 Inch LCD Rackmount Monitor Display 5

15-19 Inch LCD Rackmount Monitor Display 6

15-19 Inch LCD Rackmount Monitor Display 7

15-19 Inch LCD Rackmount Monitor Display 8
