Features

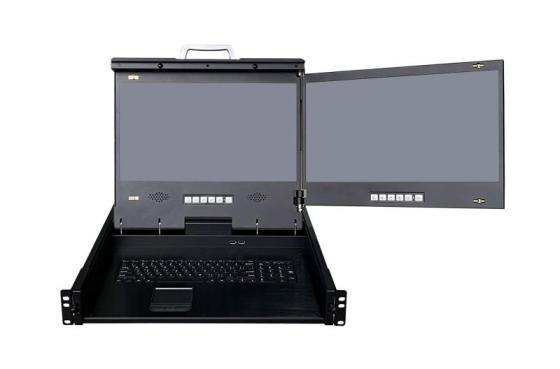

- 17.3" Rack Mount Triple LCD Display Console Drawer, 1.5u Height
- 1920 x 1080 Ultra high resolution
- Triple/Dual HDMI & VGA Port
- Front 2xUSB, Rear 1xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
- 96-key keyboard with touch pad mouse
- USB 2.0 Keyboard & Mouse
- Build in 2x 2 watts speakers
- Self-locking and auto release rails
Specifications
LCD Panel
- Display Type17.3" Wide Screen LCD
- Resolution1920 x 1080
- Max.color16.7M
- Luminance500 cd/m2
- View Angle170°(H) , 170°(V)
- Contrast Ratio1000:1
- Response Time8 ms
System
- Connectors3 x HDMI, 3x VGA, 1 x 3.5mm Audio jack, 1 x USB for KB & Mouse
- USB HUBFront x2 & Rear x 1 USB 2.0 for USB Peripheral Device
- Rack Depth600mm to 900mm rack cabinet front rails to rear rails
- Power Supply100-240V AC 50/60Hz via IEC Type power cord
- DC Power (Optional)9~36V DC input
Mechanical and Environmental
- ConstructionHeavy duty steel alloy chassis
- Operate temperature-10°C~ 60°C (-14~140°F)
- Storage temperature-20°C ~ 70°C (-4 ~ 158°F)
- Storage humidity5% ~ 95% non-condensing
- Anti-Vibration17HZ-500 HZ 1G PTP
- Anti-Shock1G / peak( 11m sec)
- Dimensions (WxHxD)450x67x 535mm
- WeightNet: 17.9 kg , Gross:23 kg
Ordering informations
- RCIM-173WX3ARack mount display, 1.5U, LCD console Drawer, Triple 17.3" LCD displays, 1x Keyboard & touchpad, 100-240V AC IEC Type power cord
- RCIM-173WX3DRack mount display, 1.5U, LCD console Drawer, Triple 17.3" LCD displays, 1x Keyboard & touchpad, 9~36V DC input
- RCIM-173WX2ARack mount display, 1.5U, LCD console Drawer, Dual 17.3" LCD displays, 1x Keyboard & touchpad, 100-240V AC IEC Type power cord
- RCIM-173WX2DRack mount display, 1.5U, LCD console Drawer, Dual 17.3" LCD displays, Keyboard & touchpad, 9~36V DC input
[RCIM-2x8] rackmount dual 8 inches lcd monitor.
8~32 inch full range 16:9/16:10/4:3/5:7 industrial-grade LED LCD panel, high brightness, normal/1080p/2k HD screen ,resistive /capacitive touchscreen, multiple signals, rackmount/panel mount/embedded mount,
RCIM-173WX3 Triple Screen 17.3 wide LCD Display Console Drawer
[RCIM-2x6] 6 inch rackmount monitor dual lcd display
[RCIM-17] rack-mount 17 inches lcd monitor with HDMI/DVI VGA
[RCIM-19] 19 inches rackmount display monitor
[RCPM-17] 17 inches rackmount LCD monitor
[RCPM-19] 19 inches rack mount LCD monitor
RCIM-173W 6u Rack mount display 17.3 inch LCD 1920 x 1080 wide screen monitor
Features
Compact rackmount dual display
8" TFT LCD screen monitor, 3.5U Height
Construction:Heavy duty steel chassis
Input signal: VGA , Video,S-Video
Control: Front panel OSD Control
Power Supply: External 48W DC 12V power adapter
Video Source:NTSC/Pal and detect
Input per panel(total):1(2)composite,1(2)S-Video
90° tilt adjustment while mounted in rack:+45° ~-45° ( V )
Signal Connector: 15 Pin mini D-SUB,Video,S-Video connector
Function Control: Power Switch, Menu, Select (+,-), Enter
OSD: Brightness, Contrast, H/V Position, Color, Phase, Clock, Management
Touch screen ( optional )
Specifications
Display
| Display Type | 8" SVGA TFT LCD |
| Resolution | 800x600 |
| Max.color | 262K |
| Luminance | 250 cd/m2 |
| View Angle | 140°(H) , 120°(V) |
| Pixel Pitch | 0.0675 x 0.2025 mm |
| Contrast Ratio | 500 : 1 |
| Response Time | 25 ms |
| LCD MTBF | 20,000hrs |
| Touch screen | Resistive Type with USB and RS232 controller |
| DC Power Input | Wide Range 8~30v DC input |
| Standard | 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter |
| DC-DC Power | DC 8 ~ 30v input power module(optional) |
| Construction | Heavy duty steel and aluminum front panel |
| Operate temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Storage humidity | 10% to 90% non-condensing |
| Anti-Vibration | 17HZ-500 HZ 1G PTP |
| Anti-Shock | 1G / peak( 11m sec) |
| Certification and Approvals | CE/FCC/ROHS |
| Dimensions (WxHxD) | 482.6*185.6* 64.6mm |
| Weight | Net: 7kg , Gross: 8 kg |
| RCIM-2x8 | Rack mount dual 8" LCD screen monitor with VGA + S-Video + Video input |
| RCIM-2x8TU | Rack mount dual 8" LCD screen monitor VGA input + S-Video + Video input, with touch screen and USB controller |
