LED Driver 12V 150 Watts IP67 waterproof LED Power Supply 240V to 12V DC Transformer 12 Volt 12Amps 144W Small LED Drivers Waterproof
Convert 240VAC to 12VDC for LED strip light, work with AC wall dimmer to dimming the light brightness from 1%-100% smoothly and stable.
SAFE LED DRIVER- High quality materials, safe for use, work with 12VDC LED light, such as: LED Strip light, cabinet light, Puck Lights, Rigid Strip Light etc.
EASY TO USE- No flicker design, good for eye protection, small size suitable for small space installation
GREAT DESIGN- fully potted for waterproof, can be use at wet or dry location, full protection: OVP, OCP, OTP, Surge protection, safe to run your product, for home or commercial use.
Constant voltage+Constant Current Hybrid LED Power supply

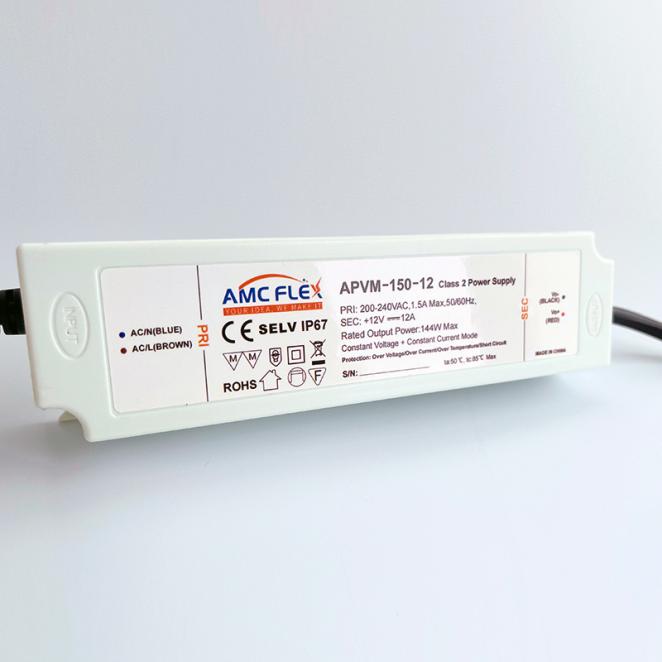

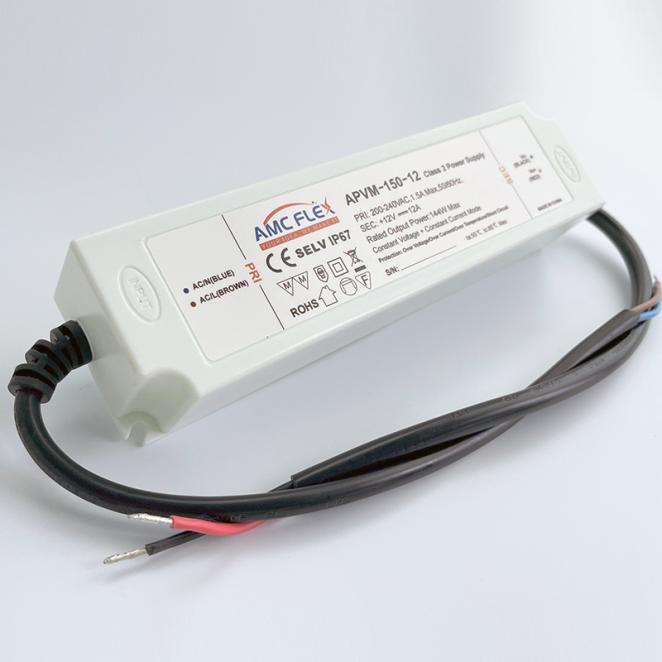

Model:
APVM-150-12
Constant
voltage LED Power Supply.
InputVoltage:
200-240VAC 47-63Hz
Output
Voltage: 12V
Output
Current:12A
Output
Rated Power: 144W max
Inrush
Current: 70 Amps max. at 230VAC/50Hz,full load
No
Load Power Consumption: ＜0.5W
Protections:
Short Circuit /Over Current /Over Voltage/over
temperature protection
Short
Circuit Protection (SCP) Yes,hiccup mode, auto-recovery
Over
Voltage Protection (OVP): Yes,hiccup mode, auto-recovery
Over
Current Protection (OCP): Yes,hiccup mode, auto-recovery
Working
TEMP.: -30°C-70°C
Working
Humidity: 10%-90% RH non-condensing
Storage
TEMP.,Humidity and altitude: -40℃ ~+70°C ambient
temperature
and a 5% to 95% relative humidity range throughout
an
altitude range of -60 meters to +5000 meters AMSL.
Certificates
and approvals: CE CB SELV ROHS
MTBF:
100Khours minimum at full load at 25℃ ambient
Dimension:
190 x 52x 37mm (L x W x H)
Packing:
0.63Kg;20pcs/13.6Kg/0.03CBM

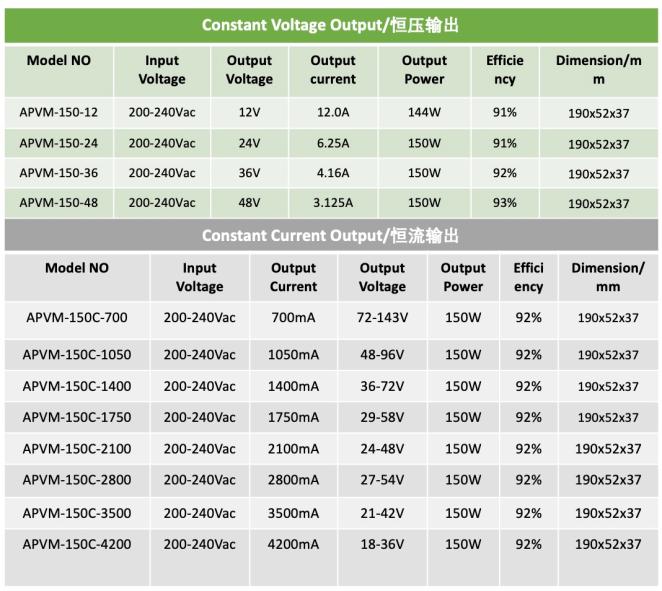

Other output options available:
|
Constant Voltage Output/恒压输出
|
|
Model NO
|
Input Voltage
|
Output Voltage
|
Output current
|
Output Power
|
Efficiency
|
Dimension/mm
|
|
APVM-150-12
|
200-240Vac
|
12V
|
12.0A
|
144W
|
91%
|
190x52x37
|
|
APVM-150-24
|
200-240Vac
|
24V
|
6.25A
|
150W
|
91%
|
190x52x37
|
|
APVM-150-36
|
200-240Vac
|
36V
|
4.16A
|
150W
|
92%
|
190x52x37
|
|
APVM-150-48
|
200-240Vac
|
48V
|
3.125A
|
150W
|
93%
|
190x52x37
|
Changzhou AMC FLEX Technology CO.,LTD has presented since 2012, focused on design, development and manufacturing LED power supplies of led lighting and advertising. Covered with 5000square meters production plant, 100 employees. Equipped with automatic production line, automatic equipment and advanced test lab.
We always take the leading technology and superior quality as its competitive advantage to serve our clients. All products are developed by ourselves under strictly procedures. Our footprint network covers more than 15 countries and regions mainly in whole Europe and middle east. The product series includes IP67 Waterproof LED power supply in plastic housing and aluminum housing, constant voltage and constant current output .etc.
AMCFLEX has established a modern enterprise management system including ERP Management system, ISO9001 quality management system,CRM customer management system,Most of its products have passed the certification of Rosh, CE, EMC,LVD, Australia SAA, South Africa IEC, Saudi SASO and CQC.
Starting its corporate activity with manufacturing of basic led power supplies , now we become a trustful and qualified supplier for global buyers.
If you want to get a problem-free and elegant solution for indoors and outdoors, all you need to do is to choose one of the products of AMCFLEX.
Apart from functionality, esthetics, efficiency, and quality expectations, maybe one of the most important points in outdoor luminaries or advertising signs is that they must be able to work efficiently for many years even in adverse weather conditions. AMCFLEX's APMS series LED Drivers meet all your quality needs including durability, reliability. These outdoor drivers have been tested in the harshest environment -40°C temperature to 85°C high temperature at full load to estimate the lifetime and function.
The work team guided by the concept of "high efficiency, energy saving and environmental friendly" designs and produces unique, high-tech, energy-saving, and environmentally-friendly drive power; with unique lighting fixtures to create functional, adaptable and efficient lighting projects.
TO deliver innovative light solutions by anticipating our customer’s needs. By understanding the lighting application, we design, test, and deliver comprehensive solutions that anticipate the customer’s total cost of different project and provide a positive experience. We collaborate with our partners to leverage technology, focus on research, and continuously improve our production, processes, and products.
We are pioneers in providing LED power supply solutions; with a vision of enlightening the world.
