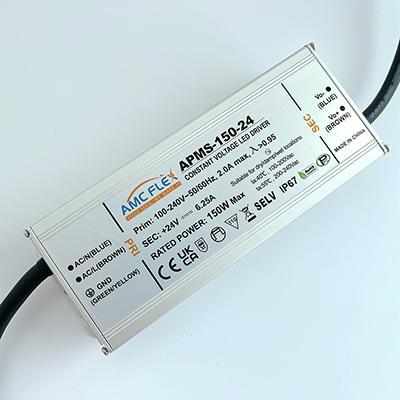

This 150W driver produces 6A of current in 24v. A Highly reliable product designed to give long term performance in demanding commercial and retail environments. In addition the driver can be set in damp environments thanks to the IP67 enclosed design. Fully EMC and LVD approved and has an exceptional reliability record.
Model:APMS-150-24
Technical
Specs:
1.Output
Parameters
Rated Output voltage: 24VDC
Rated Output Current:6.25A
Rated Output Power:150W Max
Efficiency>92%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%
2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:1.0A
Inrush Current<70A
Power Factor>0.95
THD<15%
3.
Protection
Overload
Short Circuit
Over voltage
Over Temperature
4.
Environment
Operating Temperature range:-40 to
+80℃
Storage Temperature range:-45 to +80 ℃
Humidity:10～95%
Waterproof
Level:IP67
5.
Safety Standards
UL8750,
IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,
GB19510.14, IP67 Approved
Withstand voltage: I/P-O/P:3KV
EMI,EMS
EN55015(CISPR15), GB17743,
EN61000-3-2 , Class C, EN61000-4-2,
8KV air ; Level 2, 4KV contact,
EN61000-4-3, EN61000-4-4,
EN61000-4-5，4KV/Line-Line 6KV/Line-Earth, EN61000-4-6
6.
Others
MTBF>200Khours
Dimension:180(L)*63 (W)*40(H)mm
Packing:
0.8KG/PC, 350x310x260mm, 16pcs / 14.3 Kg /0.02CBM/CTN
Other output options available:
|
CV+CC Hybrid Output/恒压输出
|
|
Model NO
|
Input Voltage
|
Output Voltage
|
Output current
|
Output Power
|
Efficiency
|
Dimension/mm
|
|
APMS-150-24
|
200-277Vac
|
24V
|
0-6.25A
|
0-150W
|
92%
|
180x63x40
|
|
APMS-150-36
|
200-277Vac
|
36V
|
0-4.16A
|
0-150W
|
92%
|
180x63x40
|
|
APMS-150-48
|
200-277Vac
|
48V
|
0-3.125A
|
0-150W
|
93%
|
180x63x40
|
|
APMS-150-54
|
200-277Vac
|
54V
|
0-2.77A
|
0-150W
|
94%
|
180x63x40
|
|
CV+CC Hybrid Output/恒压输出
|
|
Model NO
|
Input Voltage
|
Output Voltage
|
Output current
|
Output Power
|
Efficiency
|
Dimension/mm
|
|
APMS-150-24
|
200-277Vac
|
24V
|
0-6.25A
|
0-150W
|
92%
|
180x63x40
|
|
APMS-150-36
|
200-277Vac
|
36V
|
0-4.16A
|
0-150W
|
92%
|
180x63x40
|
|
APMS-150-48
|
200-277Vac
|
48V
|
0-3.125A
|
0-150W
|
93%
|
180x63x40
|
|
APMS-150-54
|
200-277Vac
|
54V
|
0-2.77A
|
0-150W
|
94%
|
180x63x40
|
Changzhou AMC FLEX Technology CO.,LTD has presented since 2012, focused on design, development and manufacturing LED power supplies of led lighting and advertising. Covered with 5000square meters production plant, 100 employees. Equipped with automatic production line, automatic equipment and advanced test lab.
We always take the leading technology and superior quality as its competitive advantage to serve our clients. All products are developed by ourselves under strictly procedures. Our footprint network covers more than 15 countries and regions mainly in whole Europe and middle east. The product series includes IP67 Waterproof LED power supply in plastic housing and aluminum housing, constant voltage and constant current output .etc.
AMCFLEX has established a modern enterprise management system including ERP Management system, ISO9001 quality management system,CRM customer management system,Most of its products have passed the certification of Rosh, CE, EMC,LVD, Australia SAA, South Africa IEC, Saudi SASO and CQC.
Starting its corporate activity with manufacturing of basic led power supplies , now we become a trustful and qualified supplier for global buyers.
If you want to get a problem-free and elegant solution for indoors and outdoors, all you need to do is to choose one of the products of AMCFLEX.
Apart from functionality, esthetics, efficiency, and quality expectations, maybe one of the most important points in outdoor luminaries or advertising signs is that they must be able to work efficiently for many years even in adverse weather conditions. AMCFLEX's APMS series LED Drivers meet all your quality needs including durability, reliability. These outdoor drivers have been tested in the harshest environment -40°C temperature to 85°C high temperature at full load to estimate the lifetime and function.
