2.4G RF Transceiver Module with NRF24L01 Chip

Add to Basket Share to :

Price

US$ 1.5

Min Order Quantity200 Piece
PortShenzhen
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen DreamLNK Technology Co., Ltd
Membership Free member
Registration Date2008.06.06
Country/RegionChina
CityShenzhen
Contact James Wu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.James Wu

Shenzhen DreamLNK Technology Co., Ltd

* Buying Product

Category : Wireless Networking Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name DreamLNK
- Model Number NRF24L01
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Blue
- Frequency 2.4G-2.5Ghz
- Chip NRF24L01
- Power -18~6dBm
- Voltage 1.9~3.6V
- Sensitivity -89dBm
- Size 19*12*2mm
- Related Keywords RF Transceiver Module, 2.4G RF Module, 2.4Ghz RF Module, RF Module, NRF24L01 Module

Description by Manufacturer

2.4G Wireless Transceiver Module with NRF24L01 Chip

Module introduction

Designed base on Nordic's NRF24L01 wireless transceiver chip, DL-24N Serial RF modules are 2.4g wireless modules with small size, excellent performance and long distance, which are widely used in intelligent home, toys, model airplane, and the field of close digital transmission control. The sensitivity can reach -82dbm, the highest transmission rate can reach 2Mbps, and the output power can be configured in four levels from -20dbm to 0dbm through registers.

The module adopts stamp edge and half hole interface design, which can not only meet customers' SMT application, but also realize transverse and longitudinal welding through needle arrangement. The module adopts high precision, high temperature stability crystal, with compact size, is convenient for portable products, and has a very high cost performance, suitable for mass applications

Applications

● Wireless game controller, toys

● Wireless keyboard and mouse

● Consumer electronics and toy airplane models

● Wireless voice and audio

● Data monitoring and transmission

● Smart home control

● Remote controller supporting radio frequency (RF) technology

Features

● Open 120 meters transmission distance 250KHz

● Working frequency 2400-2483MHz

● Working voltage: 1.9V-3.6V

● Programmable carrier detection, digital RSSI output

● Excellent selectivity and out-of-band isolation performance

● Immersion Gold PCB-ANT with extremely high cost performance

● 10ppm precision SMD crystal, excellent performance

Technical Parameter

DC characteristics

Description	Min.	Max.	Unit
Power supply voltage	1.9	3.6	V
Working current	11.3mA = 0dbm	13.5mA = 2Mbps	mA
Stand-by current	26uA at Standby Mode	0.9uA = Powerdown	uA
Working temperature	-40	85	℃
Voltage of IO Port	Vss-0.3	Vdd+0.3	V
Rate range	0.5	50	Kbps

Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)

No	Parameter	Reference Value Min.-Typ.-Max.	Unit
1	Applied Frequency Range	2400,—，2483.5	MHz
2	Frequency Interval	—,100K,—	Hz
3	Transmit Power (4 levels)	-18,-12,-6	dBm
4	Receive sensitivity	—,-82,—	dBm
5	Modulation mode	—,GFSK,—	MSK
6	Transmission Speed	1.2,—,2000	Kbps
7	Harmonic power	-48,—,-45	dBm
8	Communication Distance	80,—,120	M
9	Sensitivity at 2.4K	—,-95,—	dBm
10	Sleep Power Consumption	—,—,0.9	uA
11	Crysta Precision *3225/16MHz	—,10,—	PPM

Table 3: High Frequency Characteristic of the module

Pin Definitions

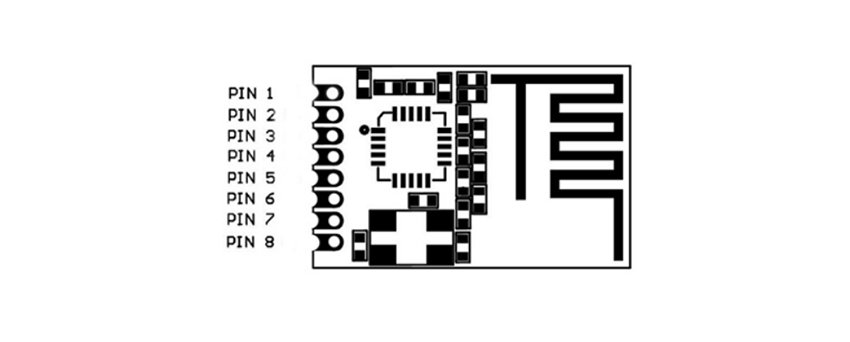

24N1_01

Pin No	Pin’s Name	Description
1	VDD	Supply voltage, DC 1.9-3.6V
2	CE	Work mode selection, TX or RX mode selection
3	CSN	CSN=0 valid, SPI chip selection enable
4	SCLK	SPI clock
5	MOSI	SPI data input, MOSI
6	MISO	SPI data output, MISO
7	IRQ	Interrupt request port
8	GND	Module grounding，Reliably grounded and close to the system filter capacitor
ANT	PCB	The original standard package, PCB onboard antenna

Note: The module integrates all RF related devices and has PCB on-board antenna, which can achieve good RF performance without any antenna configuration. It also integrates all radio frequency related functions, you can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design.

Price

Price US$ 1.5 / Piece

Product Image

2.4G RF Transceiver Module with NRF24L01 Chip

RF Transceiver Module Related Products

Main Export Markets

- Shenzhen DreamLNK Technology Co., Ltd is mainly exporting to Asia, Europe, Australia

Download Product Brochure

Wireless RF Modules Presentation from DreamLNK.pdf (2.13 Mb)

Company Profile

About Shenzhen DreamLNK Technology Co., Ltd

Membership Free member
Registration Date2008.06.06
Country/RegionChina
CityShenzhen
Contact James Wu(Mr.)

Shenzhen DreamLNK Technology Co., Ltd. (referred to asDreamLNK) is a professional high-tech enterprise specializing in ISM band micro-power wireless communication technology. We have a professional R&D team with abundant working experience; can provide you various RF modules and one-stop intelligent IOT solution!

As a member of the CLAA China LoRa application alliance, and a third-party design office of TI-chipcon, Silicon Labs, Semtech, DreamLNK can provide different kinds of RF modules, include SOC embedded data transmission modules, intelligent IoT modules, ultra-high-performance industrial control data transmission radios (e.g.: 2.4G module, UART serial module, Lora, FSK module, ASK Module, Bluetooth module, WiFi module, etc.)

After years of development, we have already occupied a place in the field of high-performance radio frequency modules, and have developed a series of mature radio frequency products. Meanwhile, we have invested an antenna laboratory and a modern factory in Dongguan (Tang Xia) in year 2016. So, we can also provide high quality antenna, and relative smart link products!

Nowadays, our complete product line is increasingly used in wireless data acquisition, environmental monitoring, industrial control, medical and health, smart home, IoT terminal, children education, aero-modeling, etc.,

Relying on our professional R&D team, high-precision testing & measuring equipment, advanced antenna laboratory, and a strict quality control, we can greatly shorten the development cycle, and always provide our clients first-class reliable product, with consistency quality.

We promise to provide you a professional after-sales service, and a comprehensive technical support. Welcome to inquire! Let us create a better future together!
