200 ton Melamine Tableware and dinner set making machine with moulds
Specification:
Melamine dinner set and tableware making melamine machine introduction
melamine dinnerset making machine generally used 200 tons to 400 tons under ejection three-column four-column hydraulic press, the structure can be divided into Integral type, or split design, solid and economical structure.
Parameters
| Specification |
Unit |
YQ32-200B |
YQ32-250 |
YQ32-315A |
YQ32-315B |
YQ32-400 |
| Nominal Force |
KN |
2000 |
2500 |
3150 |
3150 |
4000 |
| Max Pressure of Hydraulic Systerm |
Mpa |
25 |
25 |
25 |
25 |
25 |
| Max Opening Height |
mm |
1200 |
1200 |
1250 |
1250 |
1250 |
| Slider Efective stroke |
mm |
700 |
700 |
800 |
800 |
800 |
| Working Table Size |
mm |
100*900 |
800*800 |
1260*1160 |
1000*1100 |
1260*1160 |
| Nominal Force of Ejection Cylinder |
Kn |
400 |
400 |
630 |
630 |
630 |
| Ejection Stroke |
mm |
220 |
220 |
300 |
300 |
300 |
| Slider working Speed(empty travel) |
mm/s |
100 |
100 |
120 |
120 |
120 |
| Slider Working Speed (Press) |
mm/s |
5-10 |
5-10 |
8-15 |
8-15 |
8-15 |
| Slider working speed(Return stroke) |
mm/s |
90 |
90 |
90 |
90 |
90 |

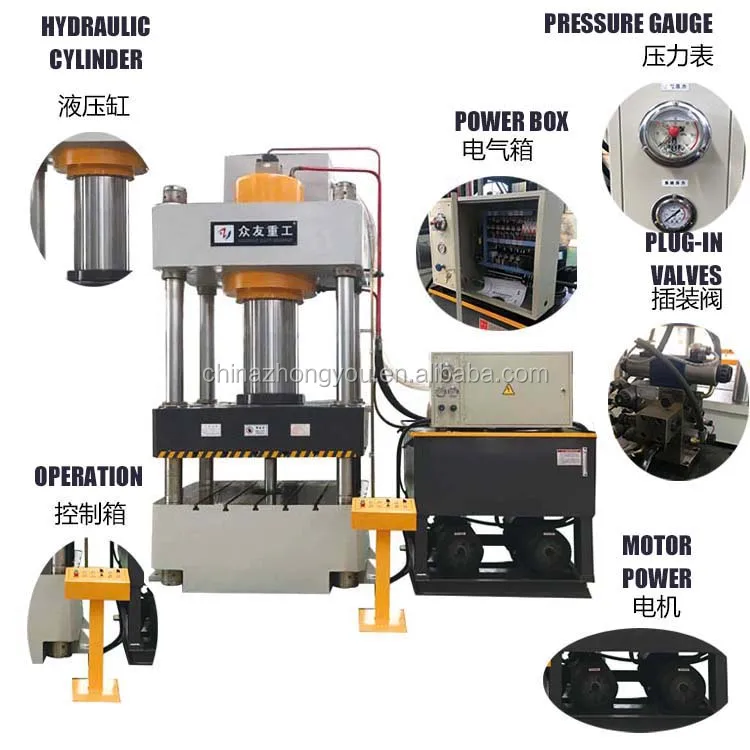

Features&Accessories
The melamine moulding machine structure can be divided into Integral type, or split design, solid and economical structure.
1.With advanced technology,low energy consumption high speed, low noise and high efficiency
2.Activity crossbeam has safety limiter in both up and down directions
3.This hydraulic press Equipped with photoelectric protection device, could guarantee the safety of the operation
4.With the function of automatic and manual, it’s convertible
5.Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping andtime-delaying

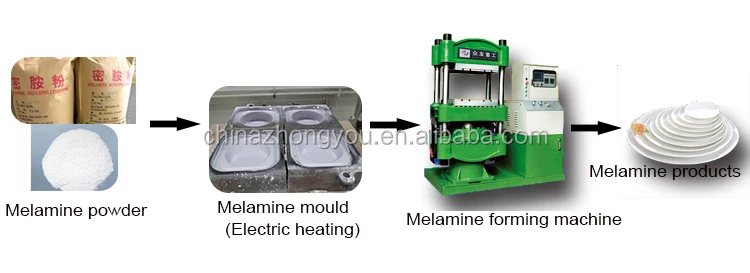

Melamine dinner set making process by Hydraulic press machine

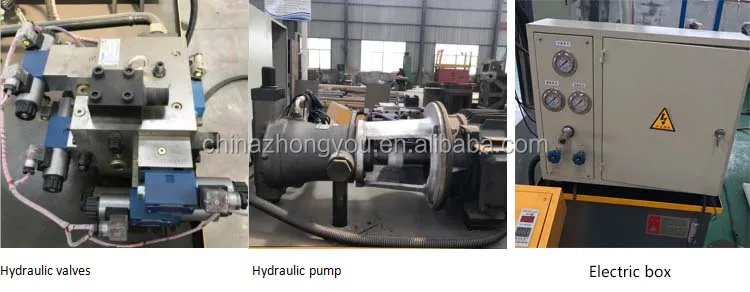

The accessories of the Melamine Laminating hot press Machine
Ram adjustment and structure:
1.Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain
2.The Machine Adjustable stroke control, Pressure regulator and gauge, allows to limit the ram pressure. Can move the ram up slowly,which allows the operator to control work piece conveniently.
3.Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.

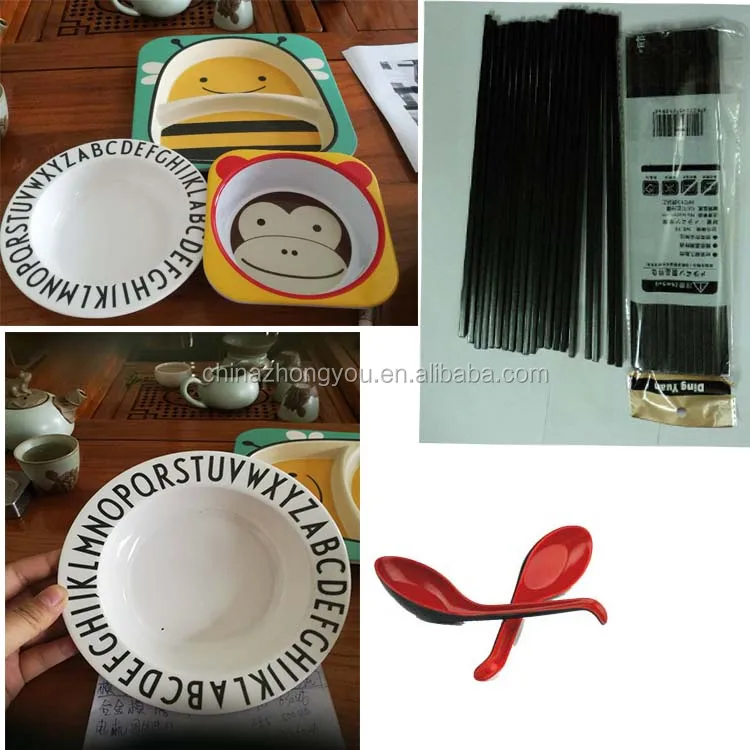

Samples &Application

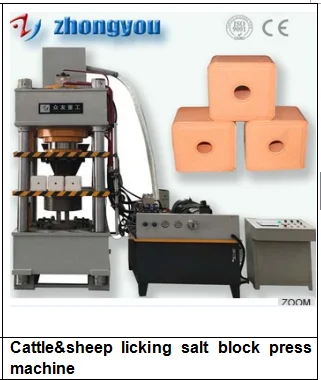

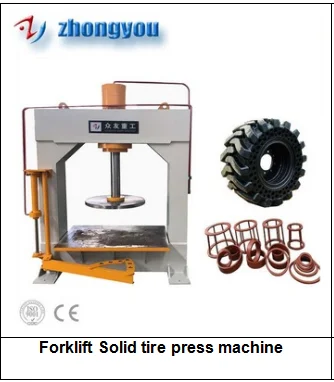

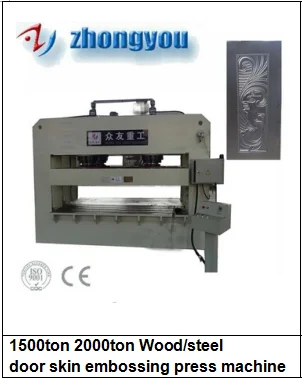

Related Products
If you need Related Hydraulic press Machines below, please Click Here to Contact Ms Caroline
Workshop & Clients
Zhongyou Heavy Industry Machinery Equipment Co.,Ltd ,Established in 2002, has been a famous manufacturer of various hydraulic press machine,there are four column,c frame,H(gantry) type andmulti-function hydraulic press machine in our factory,machines can be made according to customer's requirements.
Packaging & Shipping
dinner set making melamine machine hydraulic heat press
delivering & shipping
- melamine dinner set and tableware making machine packing:
1. inner layer is made of plastic film rust-proof packaging,
2. the embossing machine outer layer is reinforced by reinforcing the synthetic board,
3. separate container can be used.
other as requirement
- melamine dinner set and tableware making machine delivery Detail:
- Shipped in 30 days after payment
Certificate
Pre-sale Service
We provide professional consultation about each type of machine,and offer free testing service to help customers purchase suitable machine.Customers are also welcomed to visit and evaluate our factory.
After-sale Service
We have Engineer oversea services.
Also we welcome engineers from your side to learn the technical design and normal maintenance here, this will help you esay in understanding and helpful if you need to be our dealer.
Anyhow there is another way is through internet video face to face for machine teaching. because of the high development in internent, the world has become smaller and you can easy contact us if necessary.
Contact Information
1.How can i know the price of melamine dinner set making machine?
Please tell me the biggest size of your melamine dinner set,i will give a specific advice to you.
2.IS one set machine can be shipped in 20' container?
Yes,20' container is enough for it
3.Are you trading company or manufacturer?
We are real manufacturer of hydraulic press machine since 2002
Any inquiry or question, please contact Caroline as below
