Four Column Hydraulic press Wheelbarrow making machine
Product Description
The Wheelbarrow making machine is not only used for producing hand truck and wheelbarrow ,actuallyWheelbarrow making machine belongs to "Four-column deep drawing hydraulic press machine".This series of presses are for metal materials, deep drawing, bending, flanging, cold extrusion, stamping and other craft, also applies to the correction, press-fit, powder products, abrasive products, as well as the suppression of molding plastic products, insulation materials, repression of molding.
Technical Parameters
For
Four Column Hydraulic press Wheelbarrow making machine:Color, Motor power, Workbench size, Opening height , Effective stroke
can all be customized, Size of mould included.
| Parameter Iterm |
Unit |
YQ32-315A |
YQ32-315B |
| Nominal Force |
Kn |
3150 |
3150 |
| Max Pressure of Hydraulic systerm |
Mpa |
25 |
25 |
| Effective stroke |
mm |
1250 |
1250 |
| Max opening distance |
mm |
800 |
800 |
| Workbench size(L-R) |
mm |
1260 |
1000 |
| Workbench Size(F-B) |
mm |
1160 |
1100 |
| Ejection cylinder nominal force |
Kn |
630 |
630 |
| Stroke of Ejection Cylinder |
mm |
300 |
300 |
| Velocity of Freeload |
mm/s |
120 |
120 |
| Velocity of loading |
mm/s |
8-15 |
8-15 |
| Velocity of retrn |
mm/s |
90 |
90 |

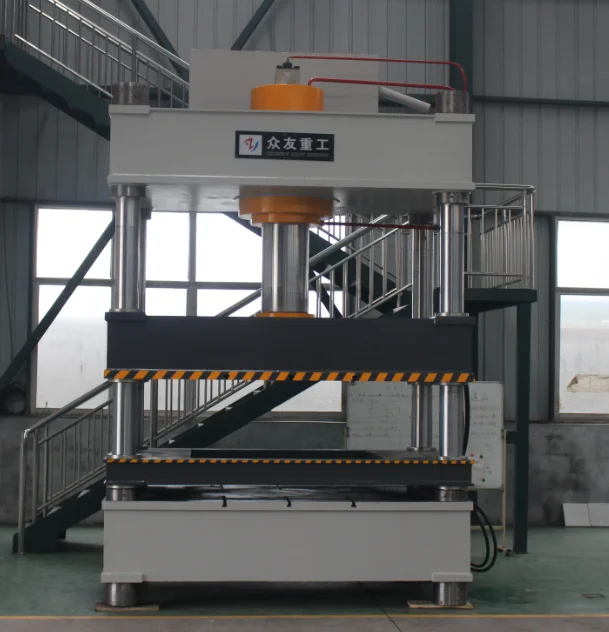

Detailed Images
Beam upper limited is protected by the light curter
With “PAUSE” & “EMERGENCY STOP” button.
With Second supporting loop for the main cylinder
Security valve for hydraulic loop
Main components of Four column hydraulic press:
Transformer: Simens
Middle relay: Simens
Time relay: Simens
Breaker: Simens
Thermal relay: Simens
Oil pump: 25YCY14-1B Chinese famous brand
Main motor: Simens
Valves: TAIFENG
Seals: PARKER
Buttons: Simens
PLC: Mistsubushi

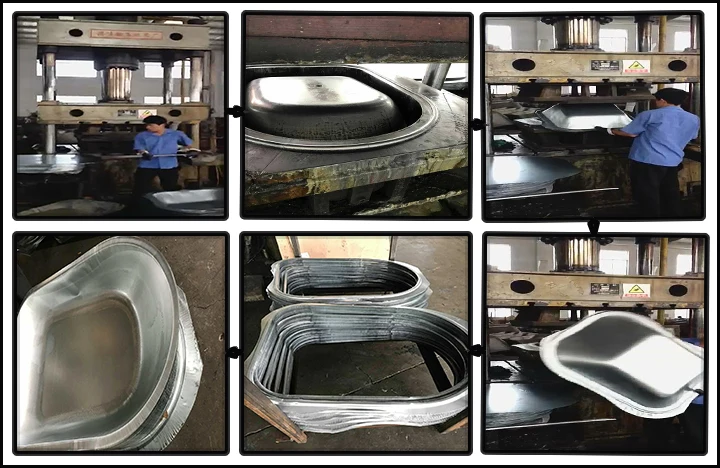

Samples & Applications of
Four Column Hydraulic press Wheelbarrow making machine:
Customers testing
wheelbarrow making machine spot:
The Molds of Wheelbarrow making 315Tons Hydraulic press Machinery available
Company Information
Zhongyou Heavy Industry Machinery Equipment Co;Ltd
-----Professional to create a leading brand of Wheelbarrow making machine
16 years of accumulated experience
Packaging & Shipping
Packaging Details for Four Column Hydraulic press Wheelbarrow making machine:
- Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
- Delivery for Four Column Hydraulic press Wheelbarrow making machine
- Delivery Time
- Shipped in 30-60 days after payment
Certificate:
We have professional technician check every Wheelbarrow making machine before they were loaded
Contact Information
Any Question about the Wheelbarrow making machine or other machines, please contact me freely.
FAQ
FAQ
Whether you are factory?
YES!
Give me 5 minutes, i will show you.
Whether the independent production and processing?
YES!
We have been done it for 16 years in the Wheel Barrow Making Machine field.
Whether to provide technical support?
YES!
We can provide free design, drawings manuals, and even technical staff overseas field guidance when needed.
Whether allowed to put my logo on ?
Sure!
whole press customized.
Whether to accept the site inspection?
Sure!
address:
Economic Development Zone Industrial North Road ,TengZhou ,ShanDong province in China.
You may contact us when arriving in TengZhou CITY.
Whether the motor voltage can be changed?
sure!
machine motors installed as your voltage.
Whether it is prone to problems?
NO!
Electric welding of high precision Usage of high-tech boring machines for extreme precision parts
Production workers have rich experience over the years
Each of the factory products after repeated testing adjustment
what about delivery time?
10-40
days after 30% Prepayments,and 70% paid before delivery.
How long is the product warranty?
12 Months
whole machine 12 Months for free after you get machine,Accessories lifetime warranty.
