4 Buttons Triggered MP3 Sound Module with 10W Amplifier FN-BC04

Add to Basket Share to :

Supply Ability10000 pcs/month
Delivery Lead Time5-15 days

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Flyron Technology Co., Ltd.
Membership Free member
Registration Date2015.03.24
Country/RegionChina
CityShenzhen
Contact Kevin Xu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Model Number FN-BC04
- Place of Origin China
- Music Format MP3, WAV
- Related Keywords mp3 sound module, mp3 module, mp3 player module, mp3 sound board

Description by Manufacturer

FN-BC04 is a high quality MP3 sound module developed by Flyron Technology Co., Ltd.Equipped with an onboard 10W amplifier, the module can be controlled by 4 separate buttons hooked up to the ‘one-on one’ inputs terminals and by UART R232 serial port working with a MCU. Great audio output, industry-grade design and strong anti-jamming capability make it possible to be used for many different applications.

Features
1). With high quality audio decoder, supports MP3 and WAV audio formats.
2). Sampling rates supported: 8/11.025/12/16/22.05/24/32/44.1/48(KHz).
3). 24 bit DAC output and supports dynamic range 90dB and SNR 85dB.
4). Supports one-on-one 4 button trigger control mode and RS232 serial port control mode.
5). In button control mode, it plays back 4 sounds one-on-one by negative triggering.
6). Uses micro SD card and the built-in SPI flash memory for storage devices.
7). Built-in a 4MB SPI flash memory by default, and supports max. 16MB.
8). Supports max. 32GB micro SD card.
9). Possible to load audio files to the flash memory directly via the micro USB connecting with computer like using a USB flash drive.
10). Equipped with a mono 10 watts amplifier that can drive a 10 watts speaker directly.
11). Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or connect with an external amplifier.
12). Adjustable sound volume with the potentionmeter.
13). Wide range for power input(DC8-24V).
14). PCB size: 52mmx49mm

Technical Parameters
1). Working voltage: DC 8V-24V
2). Working current: ≤400mA (Input: DC12V)
3). Power Consumption: ≤10W
4). On-board flash memory size: 4MB
5). Audio format: MP3 and WAV

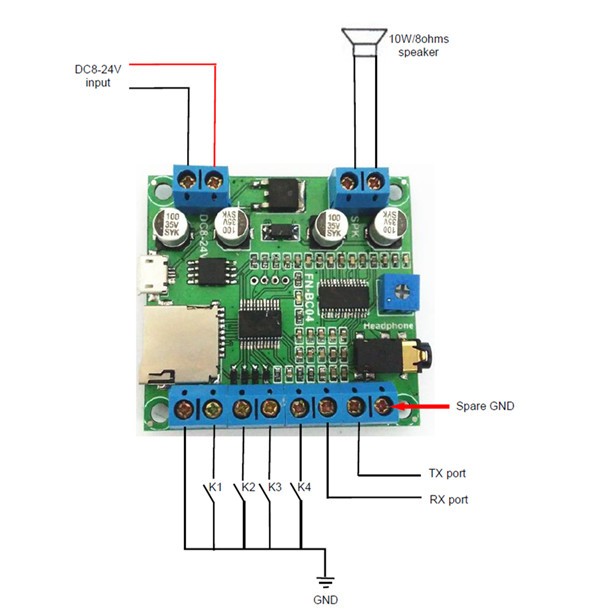

Connections for Buttons/Switches

K1, K2, K3 and K4 are representing Normally Open (N.O.) manual buttons. TX port and RX port are used to connect with a MCU, through which sending serial commands to control the module. Please refer to the connection example below.

005

Price

Price Condition FOB

Packaging & Shipping

- Packing10 pieces per box
- Delivery Lead Time5-15 days
- Minimum Order10
- Supply Ability10000 pcs/month

Product Image

4 Buttons Triggered MP3 Sound Module with 10W Amplifier FN-BC04
